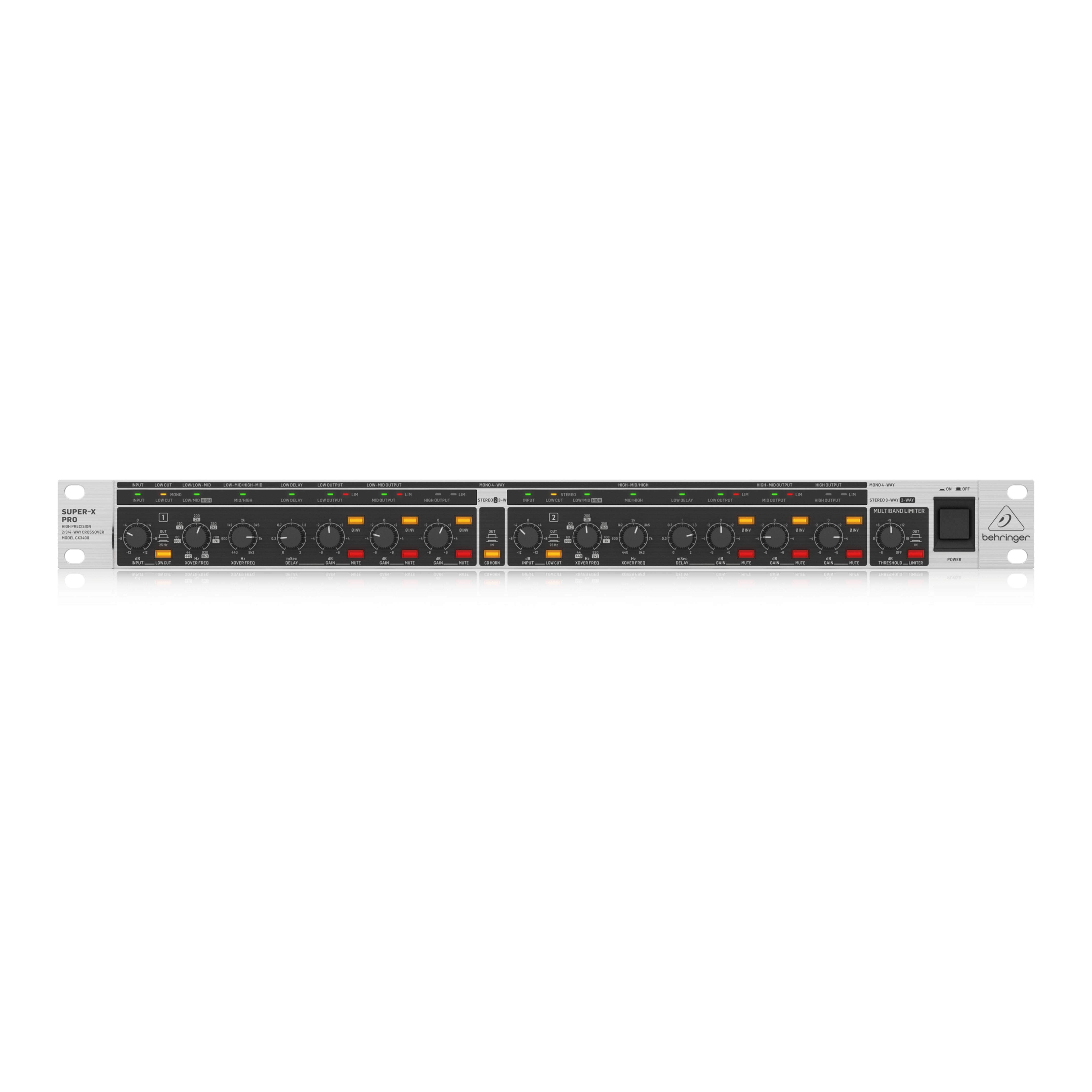

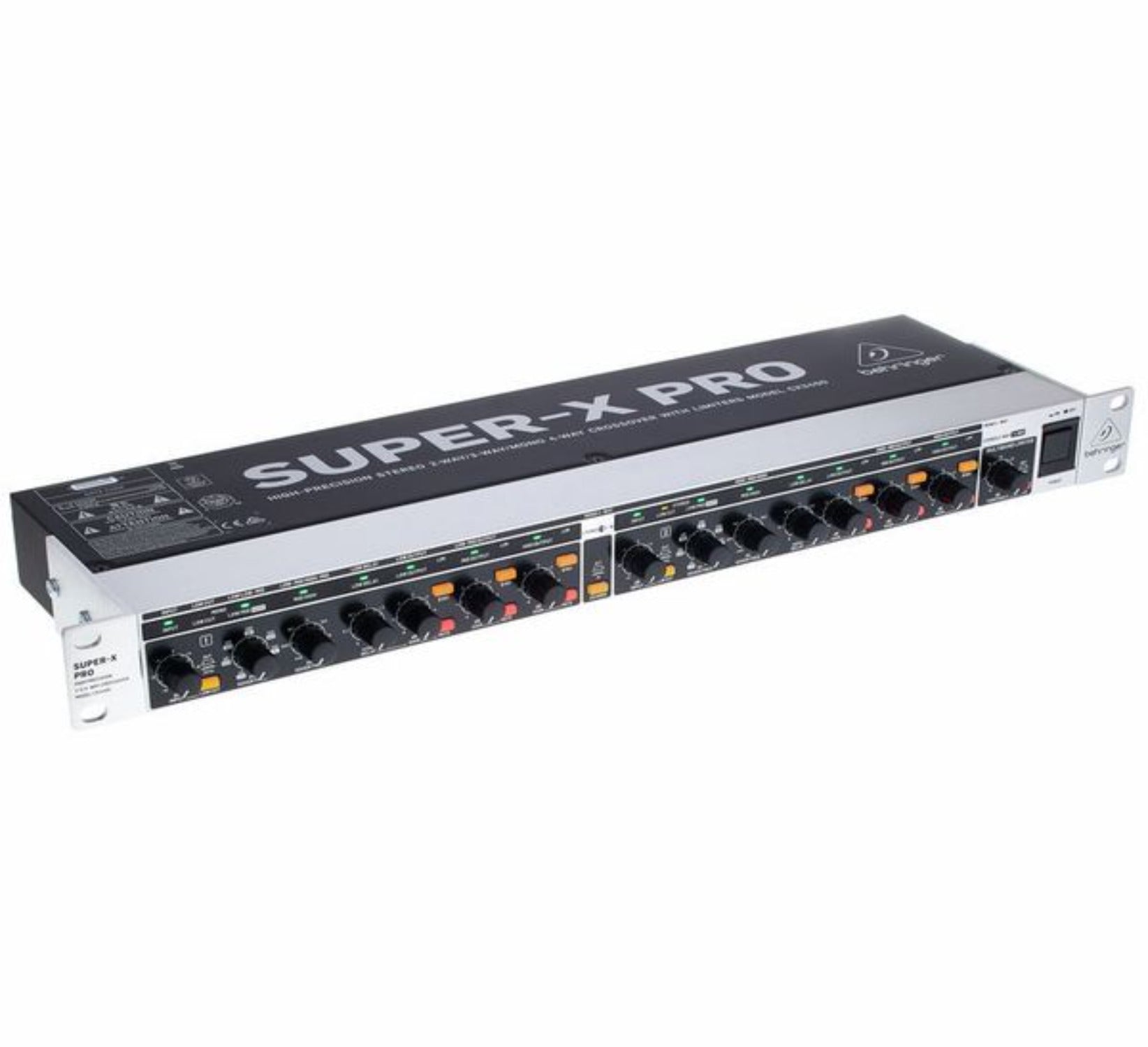

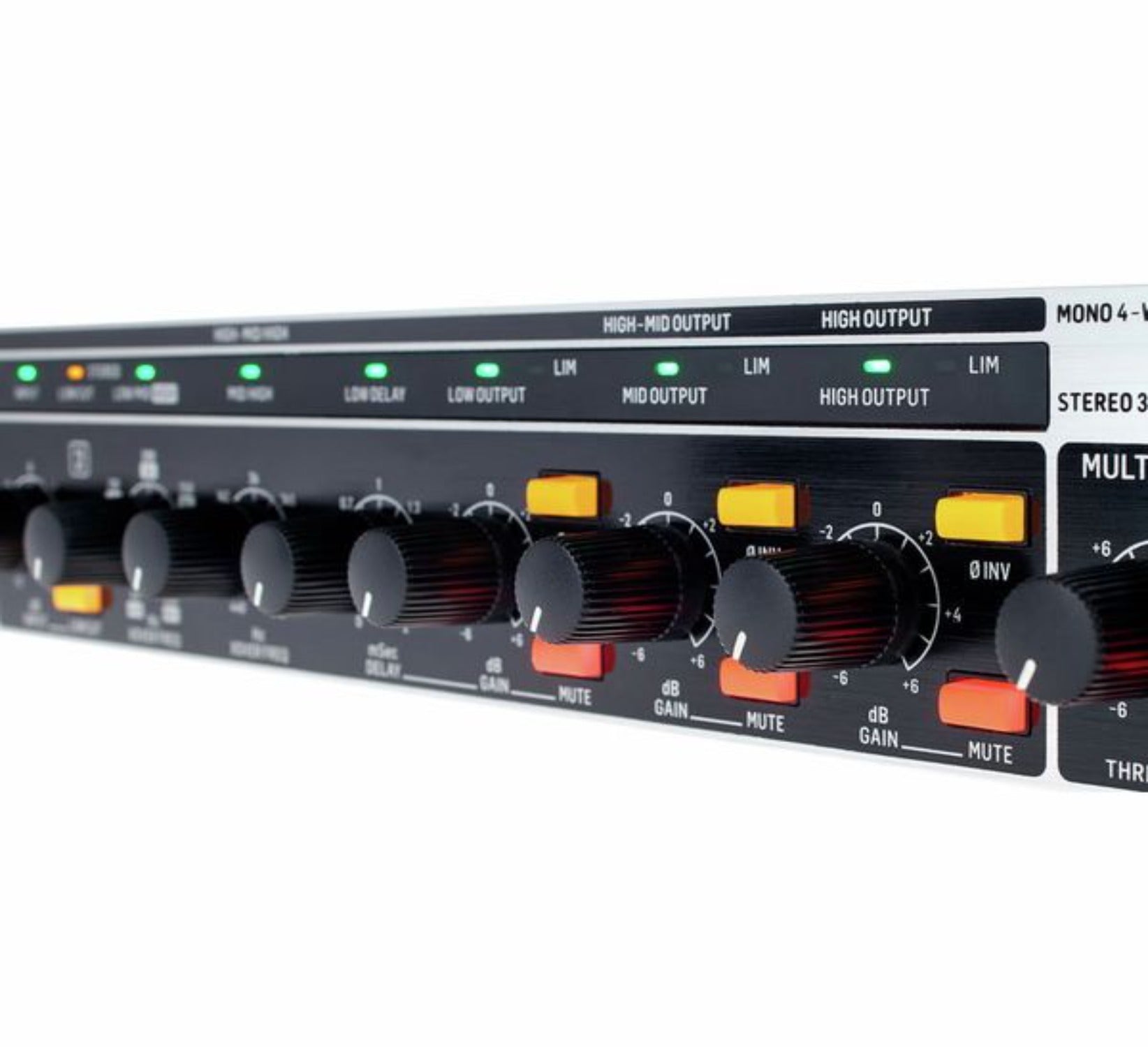

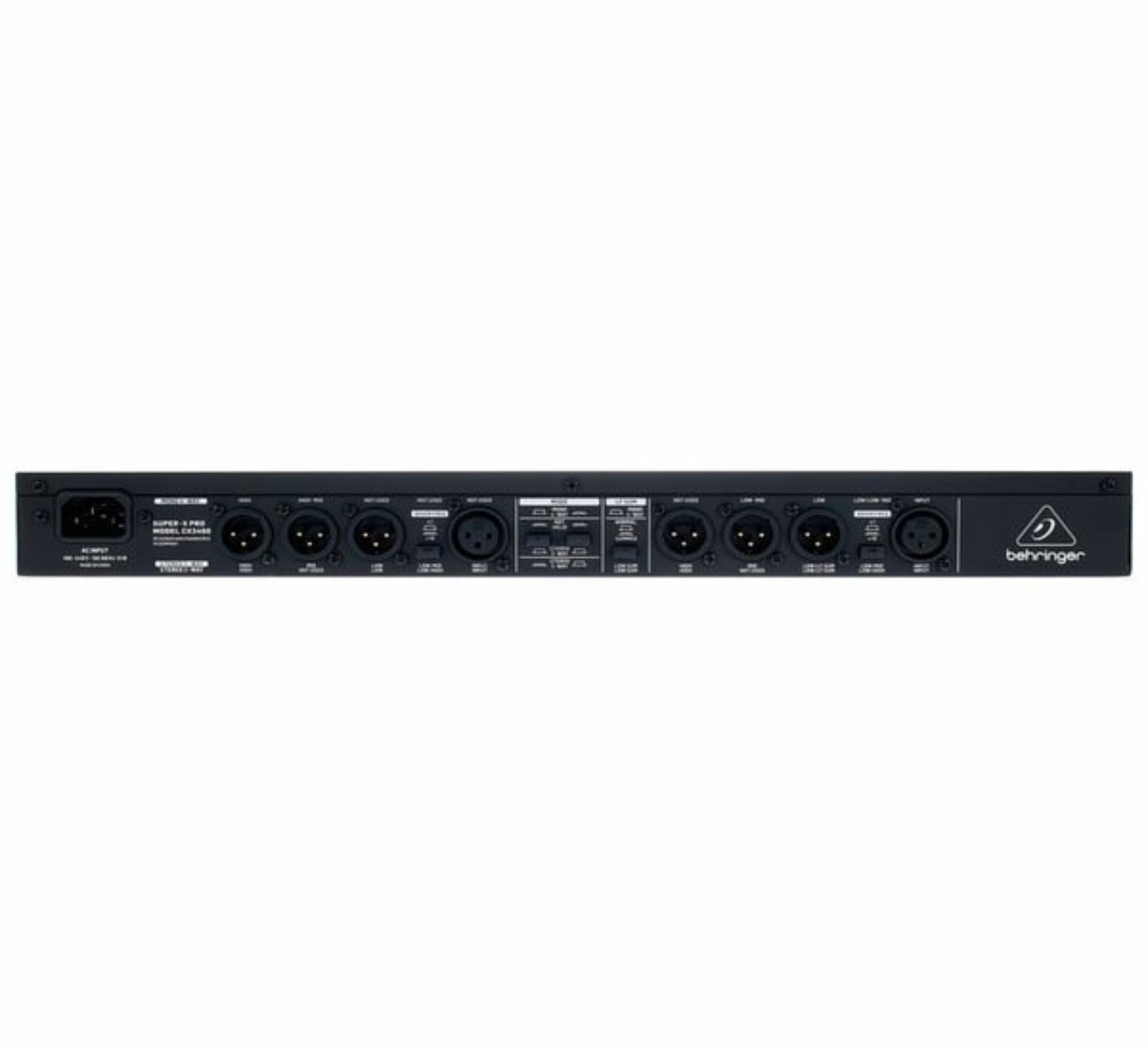

Behringer CX3400 V2

Behringer CX3400 V2

Low-noise, Flat-performance Crossover with Worldwide Switching

Achieve top-notch frequency separation with the Behringer Super-X Pro CX3400 V2. This crossover boasts stereo 2-way, stereo 3-way, and mono 4-way modes, along with state-of-the-art 24dB/octave Linkwitz-Riley filters. Benefit from superior loudspeaker protection, thanks to individual limiters on each output, as well as Delay controls for driver phase alignment. CD horn correction supplies constant-directivity compensation, while a low-frequency output summing function provides mono output for your subwoofer. Beyond that, the CX3400 gives you individual output Gain controls for all bands, individual output Mute switches for band adjustment, individual phase reverse switches for solving polarity issues, a 25Hz low cut filter, and an internal switch-mode power supply.

More Information

Behringer Super-X Pro CX3400 V2 Crossover Features:
  • Stereo 2- and 3-way, mono 4-way crossover
  • CD horn correction supplies constant-directivity compensation
  • Internal switch-mode power supply for worldwide, 100-volt to 240-volt operation
  • State-of-the-art Linkwitz-Riley filters with 24dB/octave
  • Low-frequency output summing function provides mono output for your subwoofer
  • Absolutely flat summed amplitude response, zero phase difference
  • Individual output Gain controls for all bands
  • Individual output Mute switches for easy band adjustment
  • Individual phase reverse switches for solving polarity issues
  • Individual limiters on each output offer superior loudspeaker protection
  • Time delay for phase-aligning your drivers
  • Switchable 25Hz low cut filter on each input for low-frequency driver protection
  • Servo-balanced and gold-plated XLR connectors for all inputs and outputs
  • Ultra-high-precision potentiometers for ultimate accuracy and repeatability
  • Illuminated switches for secure operation in dark stage environments
  • High-quality components and exceptionally rugged construction ensure long life

Technical Specification

Tech Specs
  • Number of Channels:Stereo
  • Modes:2-way, 3-way, 4-way (mono)
  • Filter Types:Linkwitz-Riley
  • Filters:24 dB/Octave
  • Crossover Frequencies – Stereo:Variable ; 44Hz-930Hz, 440Hz-9.3kHz
  • Crossover Frequencies – Mono:Variable
  • Inputs:2 x XLR
  • Outputs:3 x XLR (ch 1), 3 x XLR (ch 2)
  • Rack Spaces:1U
  • Height:1.7″
  • Depth:5.8″
  • Width:19″
  • Weight:3.7 lbs.
