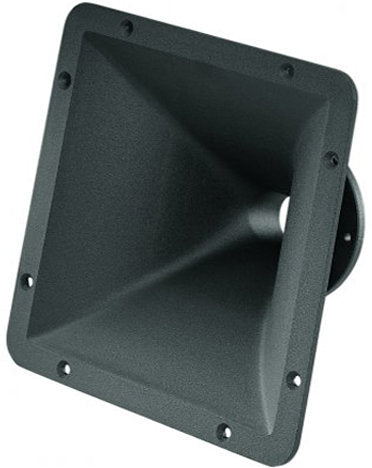

B&C ME 90

• 1.4" throat entry
• 80° x 60° nominal coverage
• Constant Directivity
• Excellent loading down to 900 Hz

Acoustic Specifications

• Throat Diameter: 36 mm (1.4 in)

• Nominal Coverage (Horizontal): 80°

• Nominal Coverage (Vertical): 60°

• Cutoff Frequency: 0.9 kHz


Construction

• Material: Cast Aluminium


Dimensions

• Overall Dimensions (W × H × D): 270 × 270 × 138 mm

  (10.6 × 10.6 × 5.4 in)


Mounting Details

• Mounting Holes: 4 × 6.5 mm (0.255 in)

• Hole Pattern: 90° on 102 mm (4 in) diameter

• Baffle Cutout Diameter: 225 mm (8.86 in)


Enclosure Data

• Air Volume Occupied by Driver: 0.42 dm³ (0.01 ft³)

Weight

• Net Weight: 1.45 kg (3.19 lb)
