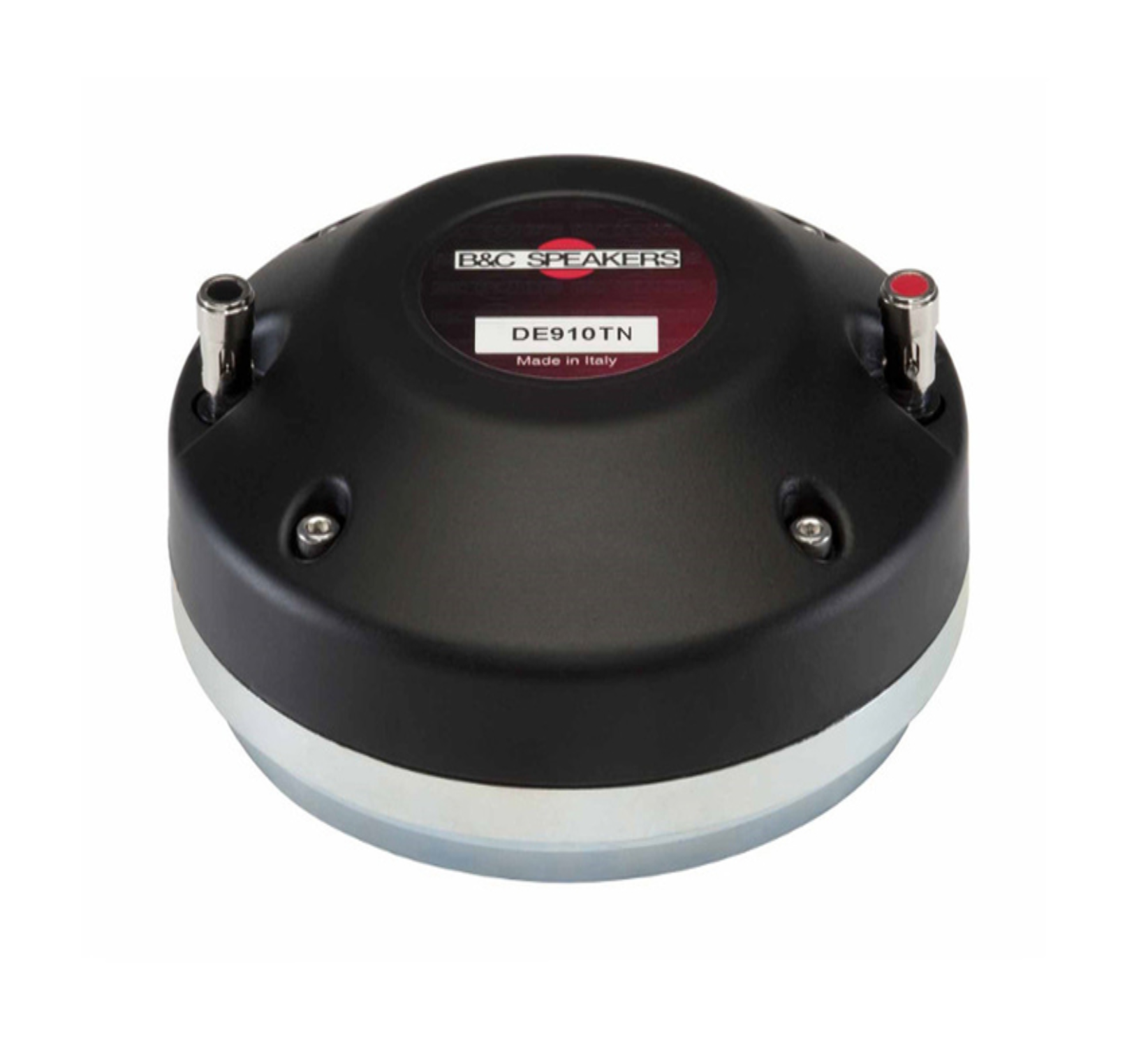

B&C DE910TN

The DE910TN is the latest version of neodymium high frequency driver. The diaphragm in this model has been completely redesigned to incorporate a bent edge voice coil former, new dome and surround geometry and an optimized phase plug. These modifications combine to better control diaphragm displacement and deformations, resulting in lower distortion and a smoother higher frequency response above 10kHz.

More Information

220 W continuous program power capacity
1.3" horn throat diameter
75 mm (3 in) aluminium voice coil
Titanium diaphragm
500 - 18000 Hz response
109 dB sensitivity
Neodymium magnet assembly with shorting copper cap

Technical Specification

Spec Sheet available - Yes
Speaker Diameter (Driver): 1.30 in
Maximum Frequency Response (Bandwidth): 18 kHz
Maximum Frequency Response (Bandwidth): 18000 Hz
Minimum Frequency Response (Bandwidth): 1 kHz
Minimum Frequency Response (Bandwidth): 1000 Hz
Impedance: 8 ohm
Power Handling: 110 Watt
Sensitivity: 108.50 dB
Product Weight: 5.29 lbs
Shipping Weight: 22.49 lbs
