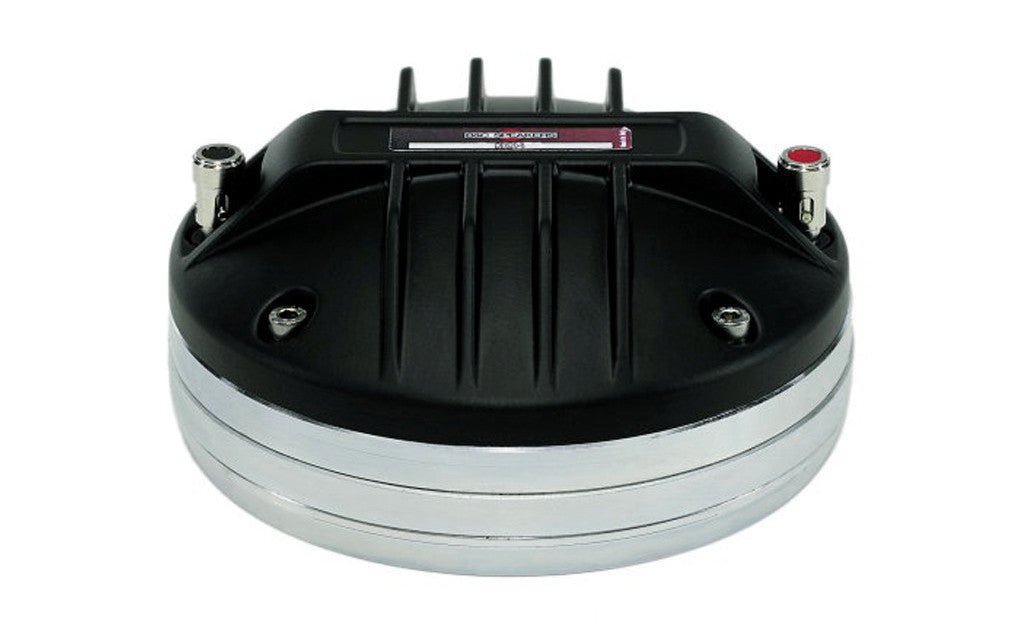

B&C DE 620 HF

• 160 W continuous program power capacity
• 1.4' horn throat diameter
• 65 mm (2.5 in) aluminium voice coil
• Titanium diaphragm
• 1000 - 18000 Hz response
• 107 dB sensitivity
• Neodymium magnet assembly with shorting copper cap

General

• Throat Diameter: 36 mm (1.4 in)


Electrical Specifications

• Nominal Impedance: 8 Ω

• Minimum Impedance: 7.9 Ω

• Nominal Power Handling: 80 W

• Continuous Power Handling: 160 W

• Inductance: 0.15 mH


Acoustic Performance

• Sensitivity: 107 dB

• Frequency Range: 1 kHz – 18 kHz

• Recommended Crossover Frequency: 1.2 kHz


Driver Construction

• Voice Coil Diameter: 65 mm (2.5 in)

• Voice Coil Winding Material: Aluminium

• Diaphragm Material: Titanium

• Flux Density: 1.8 T


Mounting & Dimensions

• Mounting Pattern: 4 × M6 holes, 90° on 102 mm (4 in) diameter

• Overall Diameter: 115 mm (4.5 in)

• Depth: 52 mm (2 in)


Weight

• Net Weight: 1.75 kg (3.85 lb)
