Audient Console Mic Preamp

For the pros

Sound better than ever with the Audient Console Mic Preamp. Delivering 68dB gain, ultra-low noise and low distortion with a touch of classic analogue warmth. iD14’s Audient Console mic preamp makes sure you capture a clean, accurate and true to source translation of your audio.

Real analogue mic preamps

That’s the same fully analogue and discrete mic preamp circuit design found in our renowned recording console the ASP8024-HE. No emulations, no copies, just real analogue console mic preamps on your desktop.

Advanced 32-bit Converter Technology

Next-level Performance

Utilising 32-bit AD/DA converter technology to minimise quality loss and maximise performance during conversion, iD14 makes sure your audio sounds cleaner, clearer and more precise than ever. And with a massive 126dB of dynamic range, you will hear subtle details better and identify problematic issues faster, letting you mix with confidence and achieve release-ready results.

JFET Instrument Inputs

Plug and play

Give your amp sims the analog warmth and character they’ve been missing. Designed to replicate the input stage of a classic valve amplifier, iD14’s JFET instrument input will give your guitar or bass the perfect sonic foundation right from the first note.

Digital Input

Expand and Conquer

Boost your channel count and future proof your studio with iD14’s digital input. Supporting ADAT and SPDIF, iD14 is ready to add up to 8 additional inputs and make taking on bigger sessions like recording drums easy.

User-friendly

Ready, setup, GO

iD14 is designed to set up and get out your way. With an intuitive, easy to understand control system, supported by a huge library of ‘how to’ videos, we guarantee you will be set up and making music in no time.

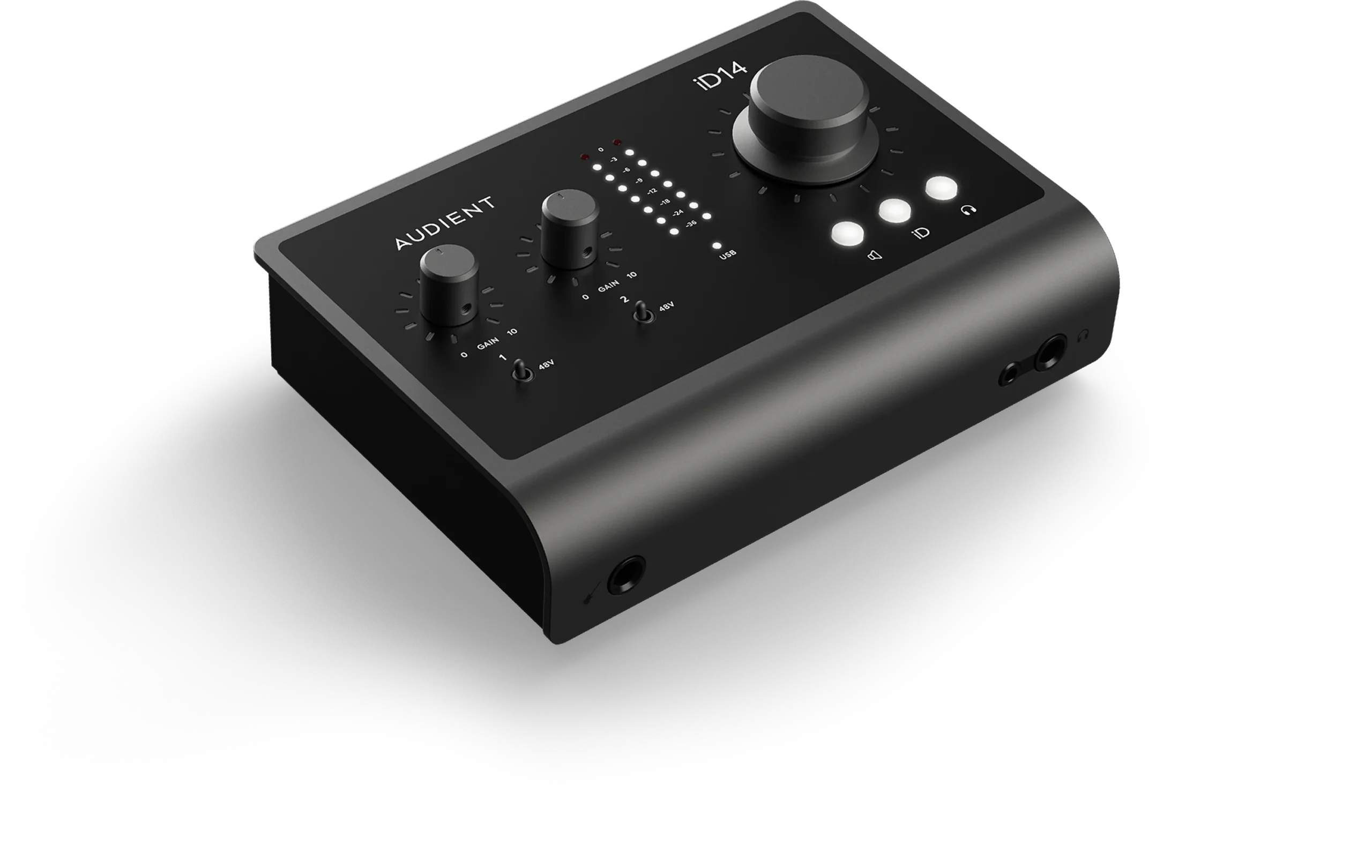

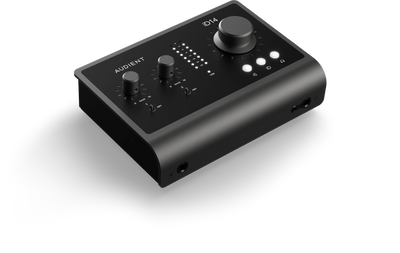

Engineered to last

Looks good, feels good

At just over 17cm wide and with a sleek smoke grey finish iD14 not only looks good but feels good too. Its all-metal design, hand-milled aluminium knobs and compact footprint make it perfect for everyday use, whether you’re recording at home or on the go.

Live Streaming

Streamer Friendly

Capture both your mic and computer audio at the same time and create custom audio feeds fast – ready to send straight to your streaming software. Perfect for musicians, content creators and gamers.

Software Mixer

Experience ultra-low latency

Designed to get out of your way, and keep your workflow stress-free, iD14’s software mixer lets you set up ultra-low latency direct monitoring, create independent artist mixes, save layout presets and so much more – all from one easy to use app.

Advanced Monitoring Control

Make monitoring simple

iD14 not only excels as a powerful USB-C audio interface, but also provides studio-ready monitoring connectivity and control, making sure you can control and hear your audio accurately at all times.

Technical Specifications

D.I / Instrument Input

RANGE:+58dB

LINEUP:12dBu = 0dBFS

THD+N @ 0dBu:0.1%

SNR:100dBu A-Weighted

FREQUENCY RESPONSE – MIN GAIN:±0.5dB 10Hz to 20kHz

1/4” TS JACK:Tip (Hot) & Sleeve (Shield)

Microphone Preamplifier

GAIN RANGE: 58dB

LINEUP:12dBu = 0dBFS

MIC MAX INPUT LEVEL:12dBu

MAX INPUT LEVEL:21dBu

INPUT IMPEDANCE (Mic):2.8k

INPUT IMPEDANCE (Line):>8k

THD+N @ 0dBu:0.00170%

THD+N @ 0dBu MAX GAIN:<0.04%

SNR:101dBu A-Weighted

EIN:129dB A-Weighted

CMRR @ 1k:>75dB

CROSSTALK:>-100dB

FREQUENCY RESPONSE – MIN GAIN:±0.5dB 10Hz to 40kHz

PHANTOM POWER: (48V +/-4V @ 10mA/Channel)

XLR COMBI FEMALE:Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)

1/4” TRS JACK:Tip (Hot), Ring (Cold) & Sleeve (Shield)

Analogue to Digital Converter

THD+N @ -1dBFS:0.001%

DYNAMIC RANGE:120dB A-Weighted

CMRR:>80dB

FREQUENCY RESPONSE:±0.5dB 10Hz to 40kHz

Line Outputs (DAC)

LINEUP:12dBu = 0dBFS

THD+N @ -1dBFS:0.0006%

DYNAMIC RANGE:125.5dB A-Weighted

CROSSTALK:>120dB

FREQUENCY RESPONSE:±0.1dB 10Hz to 40kHz

1/4” TRS JACK:Tip (Hot), Ring (Cold) & Sleeve (Shield)

Headphone Outputs

LINEUP:18dBu = 0dBFS

THD+N @ -1dBFS:0.0009%

DYNAMIC RANGE:125.5dB A-Weighted

CROSSTALK:>116dB

FREQUENCY RESPONSE:±0.25dB 10Hz to 40kHz

MAXIMUM LEVEL @ 30R:2.59V Peak, 1.827V RMS, 223mW

MAXIMUM LEVEL @ 62R:4.18V Peak, 2.95V RMS, 280mW

MAXIMUM LEVEL @ 600R:7.72V Peak, 5.46V RMS, 100mW

1/4” TRS JACK:Tip (Left), Ring (Right) & Sleeve (Shield)

USB-C High Speed

BUS POWER:

MIN REQUIREMENT:0.9A @ 5V >=USB 3.0 Port

MAX REQUIREMENT:1.5A @ 5V USB-C: Provides higher headphone outputs levels

No. of INPUT CHANNELS:10

No. of OUTPUT CHANNELS:6


DSP MIXER LATENCY ROUND TRIP (in-to-out):44.1kHz 0.65mS


DSP MIXER LATENCY ROUND TRIP (in-to-out):48.0kHz 0.6mS


DSP MIXER LATENCY ROUND TRIP (in-to-out):88.2kHz 0.33mS


DSP MIXER LATENCY ROUND TRIP (in-to-out):96.0kHz 0.31mS
