This Microphone Signal Splitter is a Live Toolbox Essential!

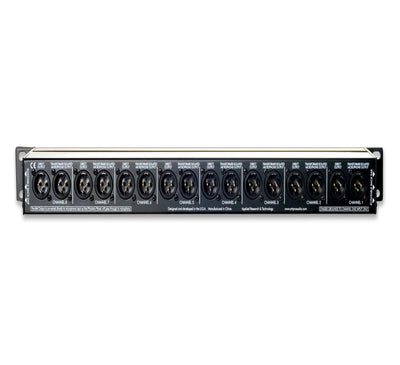

The ART S8 8-channel microphone splitter gives you an effective tool for splitting eight balanced low-impedance microphone signals to pairs of outputs, giving you 16. Each channel of the S8 provides one direct output and one transformer-isolated output from a single microphone. You can send the direct outputs to the main or FOH mixer, and the second isolated outputs to a monitor or recording mixer. The direct outputs pass phantom power from the main mixer to the microphones for use with condenser microphones. If you want a dependable splitter for you microphone signal, choose the S8!

More Information

ART S8 8-channel Microphone Splitter Features:

  • Splits eight balanced lo-Z mic channels into eight pairs (16)
  • One direct output and one transformer-isolated output per channel
  • Direct outputs pass phantom power to microphones
  • One attenuator pad per channel input
  • One ground-lift switch per channel output

Technical Specification


Input Impedance > 1.1k Ω @ 1kHz (Typical)
Maximum Input Level -1.4dBu @20Hz / +3.5dBu @30Hz / +9.4dBu @50Hz
Output Impedance <255 Ω @ 1kHz (Typical)
Total Harmonic Distortion <0.1% From 45Hz To 20kHz @ -15Dbu Input
Frequency Response 20Hz to 20kHz
CMRR > 105dB @60Hz / Greater Than 80dB @3kHz
