6-channel Rackmount Stereo Headphone Amplifier

Six pairs of stereo 500mW outputs (@32Ω) give the ART HeadAmp6 power and flexibility to drive a band mix from your DAW or a live session from your booth. Each channel features an additional front-side 1/4" TRS headphone out with level control for easy access from a rack. Also around front, you'll find a 1/4" TRS Aux In so each musician can send their instrument to their own channel and blend between the shared feed and their own source; this gives the ART HeadAmp6 the potential to create 6 independent "more-me" mixes tailored to each performer. On the back, balanced Thru outputs, which are handwired in parallel with the Main Inputs, allow you to daisy-chain multiple HeadAmp6 units together. Take control of your live and studio monitoring needs with the ART HeadAmp6 headphone amplifier from Sweetwater.

Enquire Now

Product details

More Information
ART HeadAmp6 Headphone Amplifier Features:
  • 6-channel headphone amp in a 1U rackmount size
  • Front (1x) and rear (2x) TRS headphone outputs
  • TRS Aux In w/ balance control provides 6 "more-me" mixes
  • Balanced Thru outputs for daisy-chaining
  • Mono and Mute L/R switches per channel
  • Maximum output levels: 150mW (600 Ohm Headphones); 500mW (32 Ohm Headphones); 150mW (8 Ohm Headphones)
Technical Specifications
Tech Specs
  • Type:Headphone Amp
  • Input Channels:1 x Stereo
  • Output Channels:6 x Stereo
  • Analog Inputs:1 x 1/4" TRS (direct), 6 x 1/4" TRS (aux), 2 x XLR (L/R), 2 x 1/4" TRS (L/R)

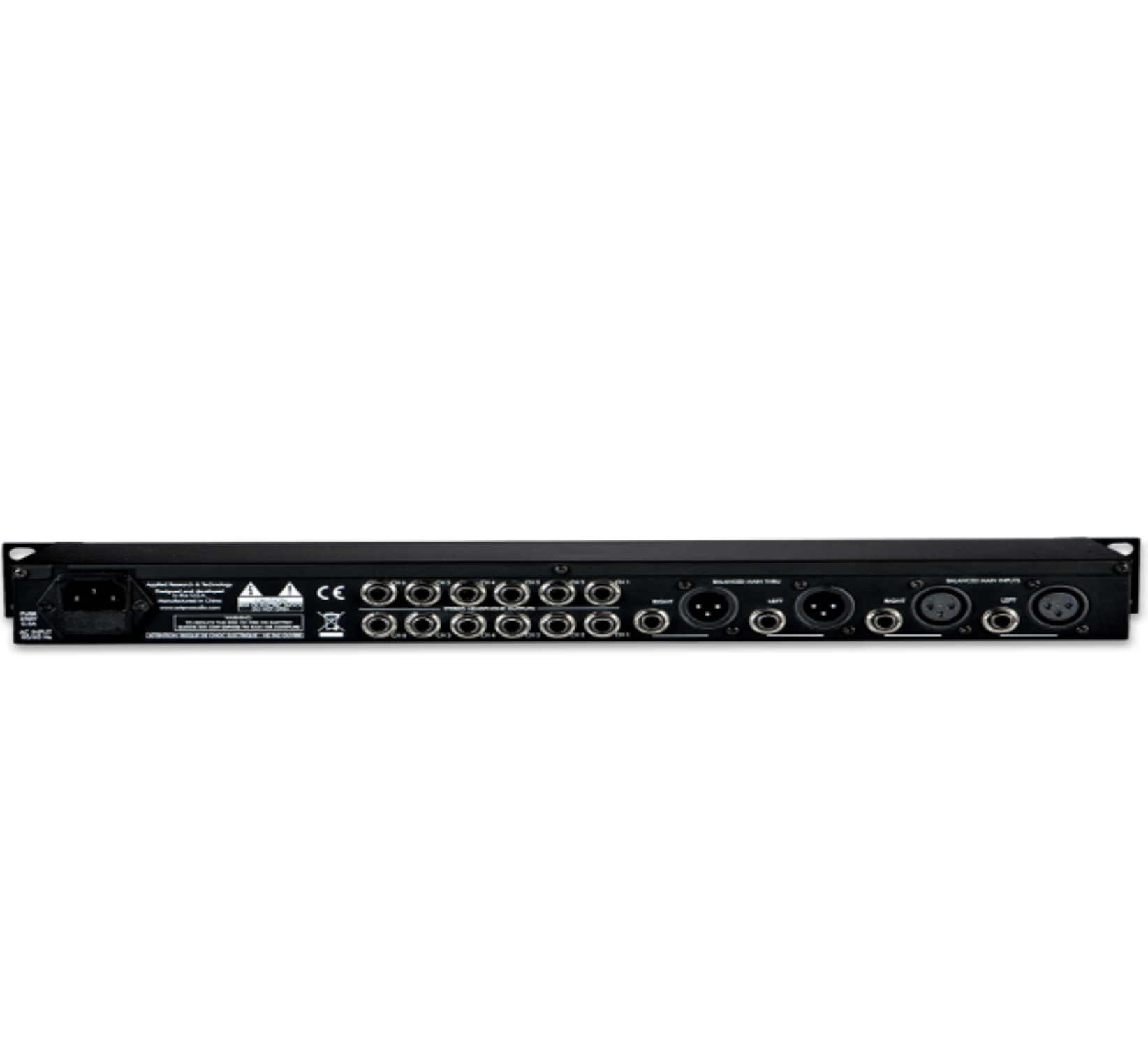

  • Analog Outputs:2 x XLR (thru, L/R), 2 x 1/4" TRS (thru, L/R)
  • Headphones:6 x 1/4" TRS (front), 12 x 1/4" TRS (6 x stereo, rear)
  • Controls per Channel:Balance, Level
  • Form Factor:1U Rackmount
  • Power Supply:Standard IEC AC cable (included)
  • Height:1.75"
  • Width:19"
  • Depth:6"
  • Weight:5.3 lbs.
