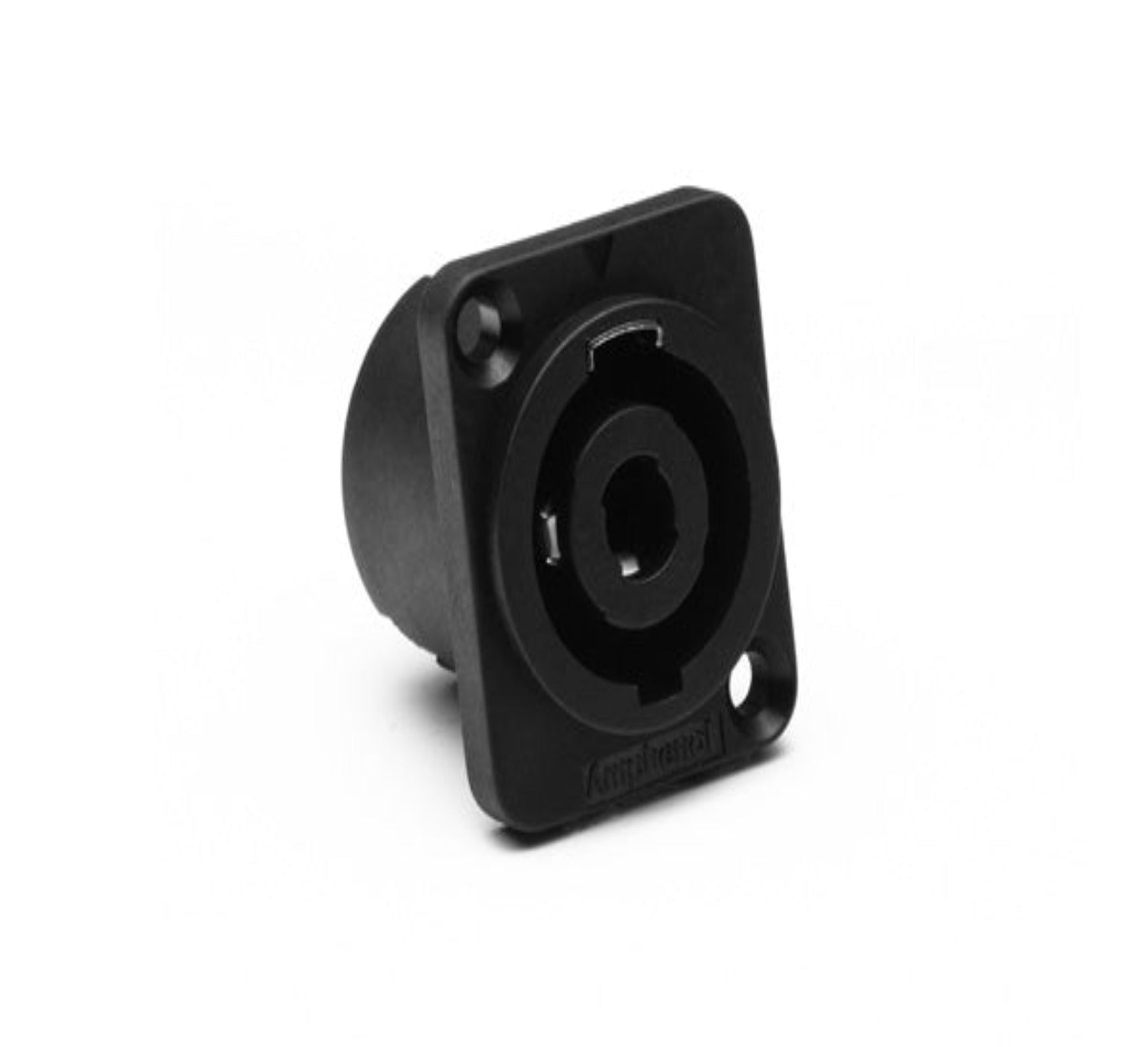

AMPHENOL SP-4-MD

The SP-4-F from Amphenol is a SP series 4 pole loud speaker cable connector plug with screw terminals. It is made of durable thermoplastic housing fitted with high power contacts to ensure optimal current carrying capacity. Completely intermateable with industry standard loudspeaker connections.

More Information

High current contacts for distortion free signal
Quick release, vibration resistant latch lock
UL, cUL recognized components (file number E339831)
Precision machined contacts
Brass with silver plated contacts
Test voltage AC RMS is 1500V, current carrying capacity is 30A
Typical contact resistance is <= 3mohm, insulation resistance (initial) is >=2Gohm
Operating temperature range from -25˚C to +75˚C (-13°F to +167°F), flammability rating is UL94HB
Conductor size is 1.5mm² to 4mm² (AWG16 to AWG12)

Technical Specification

General Characteristics
gender		male
number of positions (w/o PE)		4
part category		panel mount connector
Further Characteristics
lower temperature	(GC)	-25
upper temperature	(GC)	75
Electrical Characteristics
rated current (40 °C)	(A)	30
rated voltage	(V)	133
