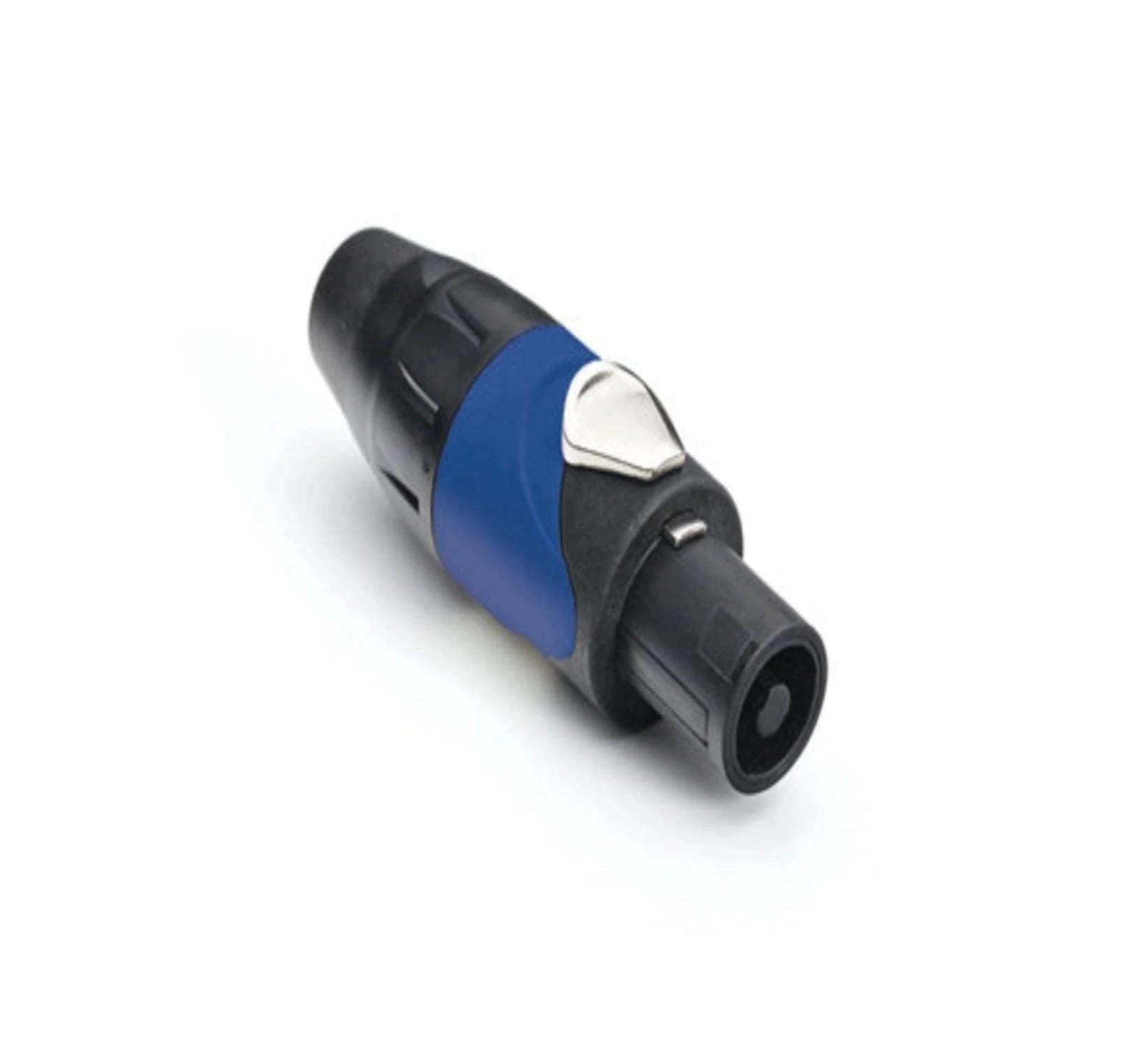

Try the Amphenol SP-4-F on your next 4-pole speaker cable and discover why Amphenol has become the choice of sound professionals all over the world.

Amphenol Australia has manufactured and designed innovative pro audio connectors since 1955. The SP Series is compatible with all Speakon® cables and connectors. The 30A current rating on these rugged connectors ensures they'll stand up to professional use.

More Information

Key Features

  • Compatible with 4-pole/4-conductor Speakon® connectors
  • 30A current rating withstands professional use
  • Stylish blue sleeve and thermoplastic shell

Technical Specification

  • Positions: 4
  • Finish: Black
  • Contact Plating: Silver
  • IP Rating: IP20 (IP40) (Mated Condition)
  • Current Carrying Capacity: 30A
  • Termination: Screw
  • Flammability Rating: UL94HB
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Service Voltage RMS: 133V (not suitable for domestic applications above 50V)133V (not suitable for domestic applications above 50V)
  • Test Voltage AC RMS: 1500V
  • Typical Contact Resistance: < 3mΩ
  • Insulation Resistance: > 2GΩ/ >1GΩ after Damp Heat Test
  • Operating Temperature: -25°C to +75°C (-13°F to 167°F)
  • Typical Cable Retention Force: 200N
  • Cable OD Range: 5-10mm (0.19" - 0.39")
  • Housing Material: PA66 GF30 / Black
  • Mating Cycles: 5000
  • Application(s): Audio & Lighting
