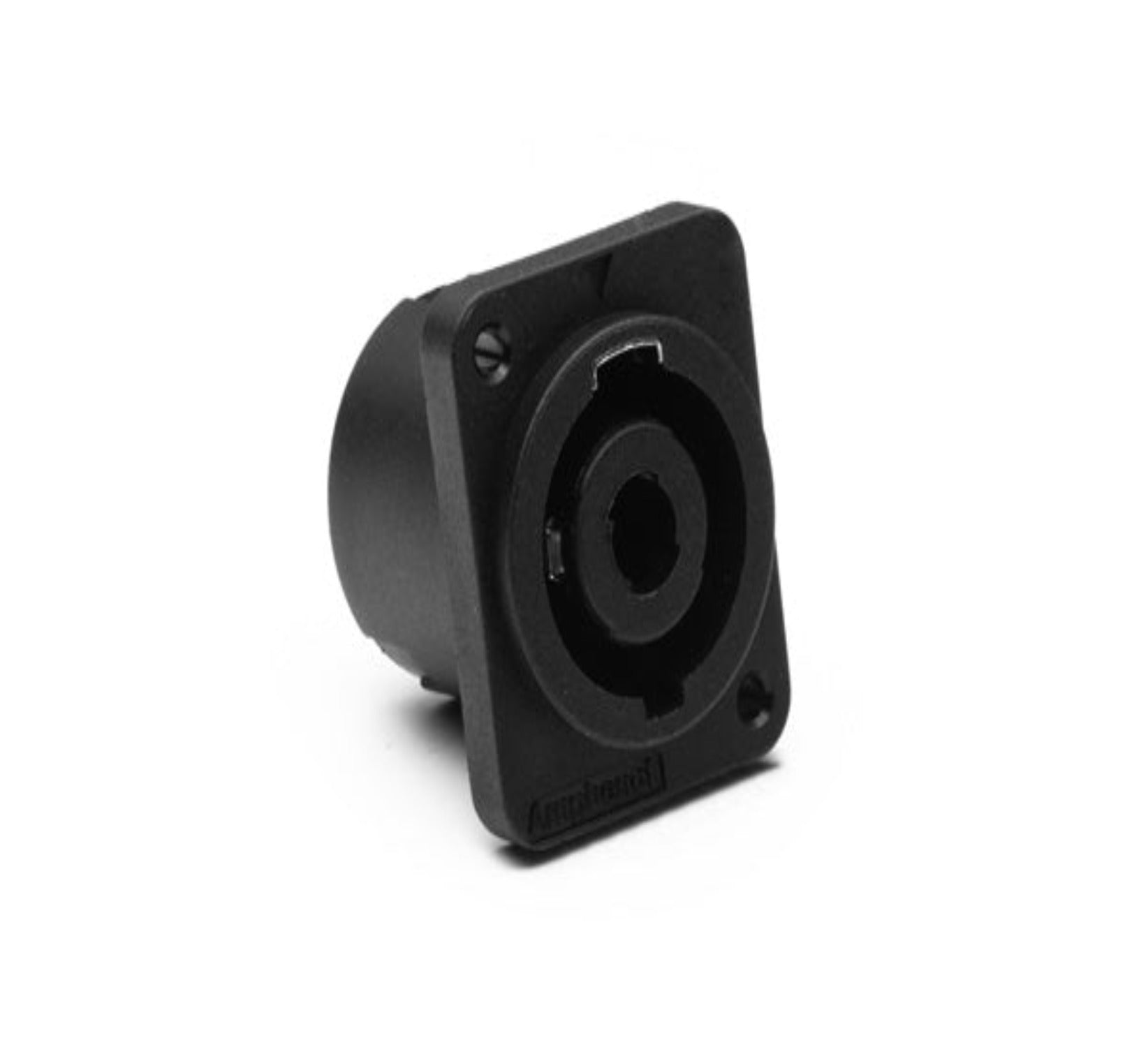

The SP-2-MD from Amphenol is a SP series 2 pole loud speaker chassis mount connector with solder tabs 3/16" termination. Completely intermateable with industry standard loudspeaker connections.

More Information

  • Black colour 'D' type flange shell, through hole mounting
  • Quick release, vibration resistant latch lock
  • UL, cUL recognized components (file number E339831)
  • Precision machined contacts
  • Phosphor bronze with silver plated contacts
  • Test voltage AC RMS is 1500V, current carrying capacity is 30A
  • Typical contact resistance is <= 3mohm, insulation resistance (initial) is >=2Gohm
  • Operating temperature range from -25˚C to +75˚C (-13°F to +167°F), flammability rating is UL94HB
  • PA66 GF20 insulator

Technical Specification


Brand Amphenol Audio
Model SP-2-MD
Part Number 092-0160
UPC 884957037773
Unit of Measure Each
Weight 0.005
Circuit 2-Pole
Gender Male
Mounting Type Chassis / Panel Mount
