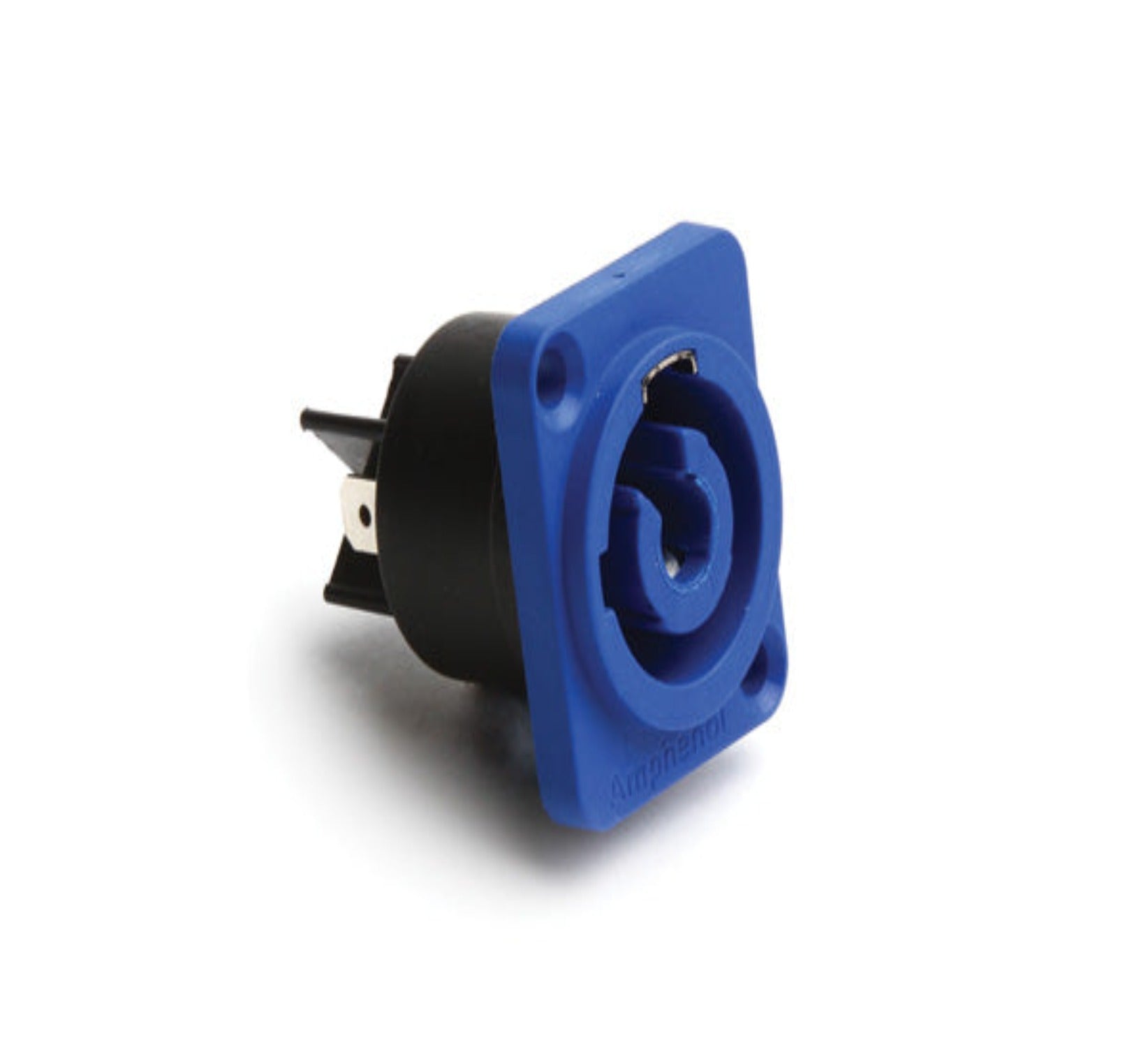

The HP-3-MD from Amphenol is part of the HP Series of connectors suitable for AC power supply. Rated at 25A / 250VAC this 3 pole (2 + PE) chassis power connector is keyed and colour coded for power-in (Blue).

More Information

  • 3 Pole (2 + PE) chassis connector
  • Blue thermoplastic shell, keyed for power-in
  • Solder Tab 3/16" contact
  • Industry standard mating
  • Flammability rated UL94V-0
  • Rated operating voltage 250VAC
  • Current carrying capacity 25A
  • Operating temperature range -25°C to +75°C
  • UL, cUL recognized components (File no. E339831)

Technical Specification


General Characteristics
gender male
number of positions (w/o PE) 3
part category panel mount connector
Electrical Characteristics
rated current (40 °C) (A) 25
rated voltage (V) 250
Further Characteristics
upper temperature (GC) 75
