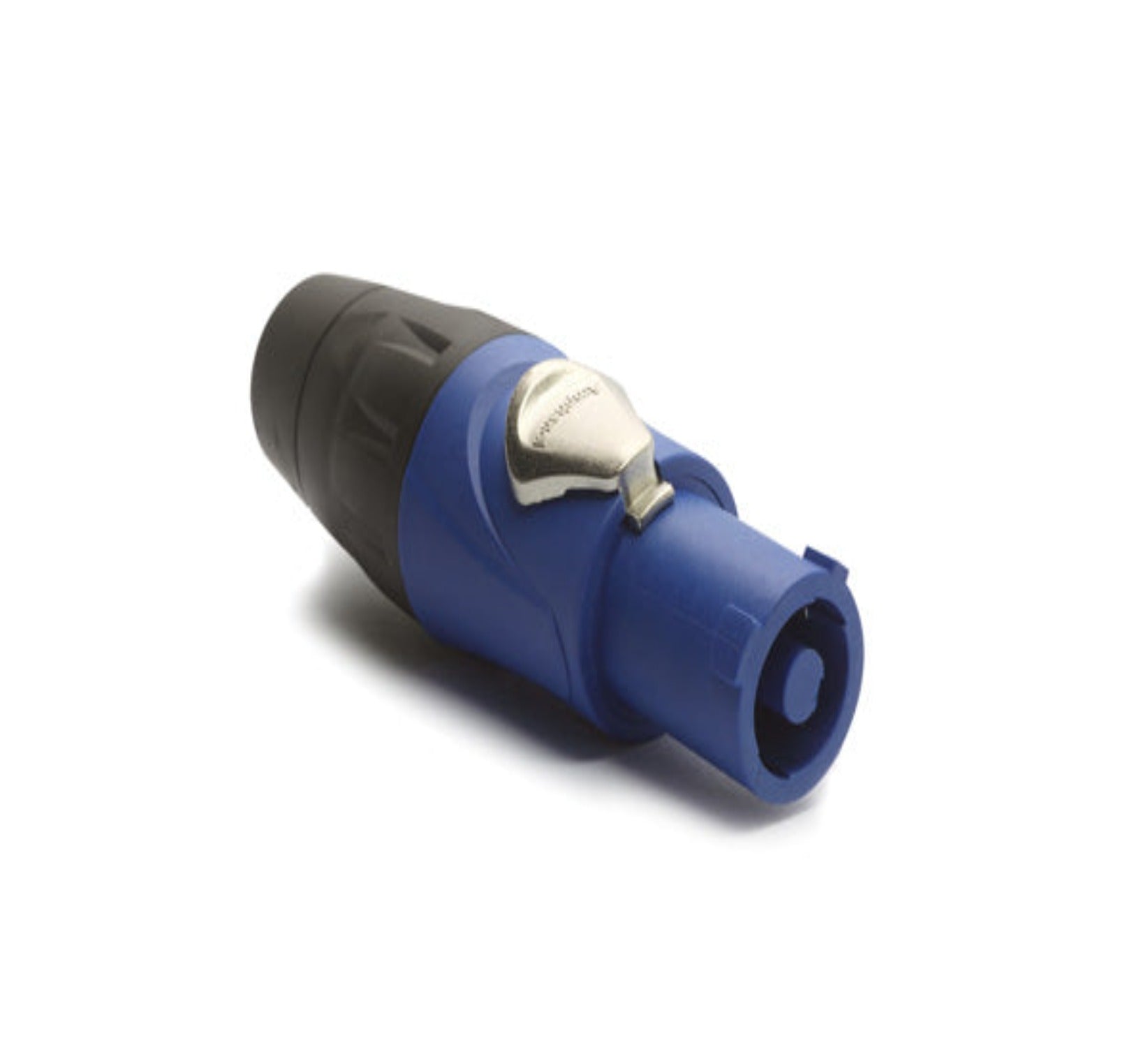

AMPHENOL HP-3-F

AMPHENOL HP-3-F

he HP-3-F from Amphenol is part of the HP Series of connectors suitable for AC power supply where a latch locking connector is required. Rated at 25A / 250VAC this 3 pole (2 + PE) cable power connector is keyed and colour coded for power-in (Blue).

More Information

  • Quick release, vibration resistant latch lock
  • 3 Pole (2 + PE) cable connector
  • Durable thermoplastic housing
  • Blue sleeve keyed for power-in
  • Screw terminals
  • Chuck type cable clamp
  • Flammability rated UL94V-0
  • Rated operating voltage 250VAC
  • Current carrying capacity 25A
  • Operating temperature range -25°C to +75°C
  • UL, cUL recognized components (File no. E339831)

Technical Specification



General Characteristics
gender female
number of positions (w/o PE) 3
part category female cable connector
Electrical Characteristics
rated current (40 °C) (A) 25
rated voltage (V) 250
Further Characteristics
upper temperature (GC) 75
