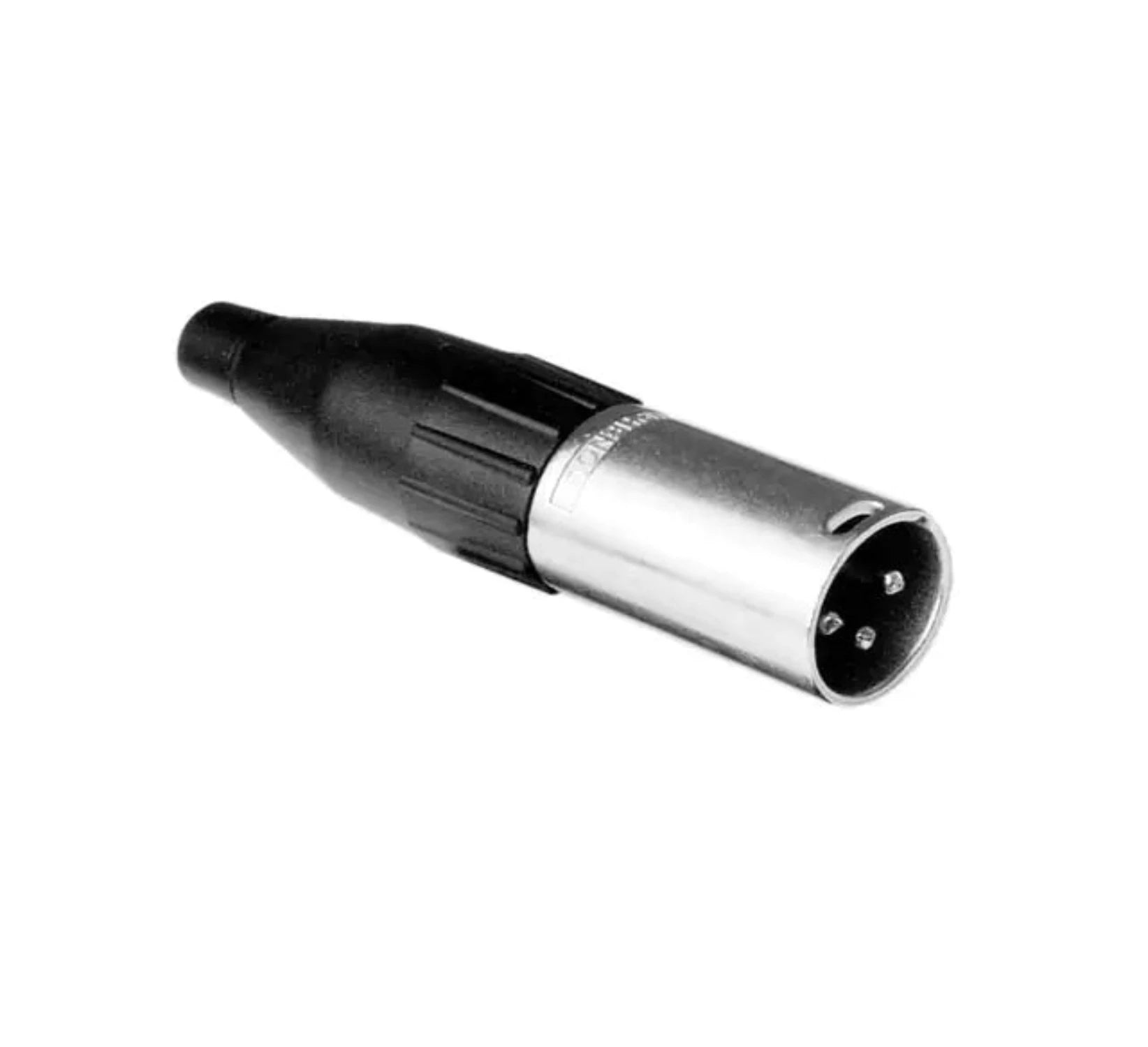

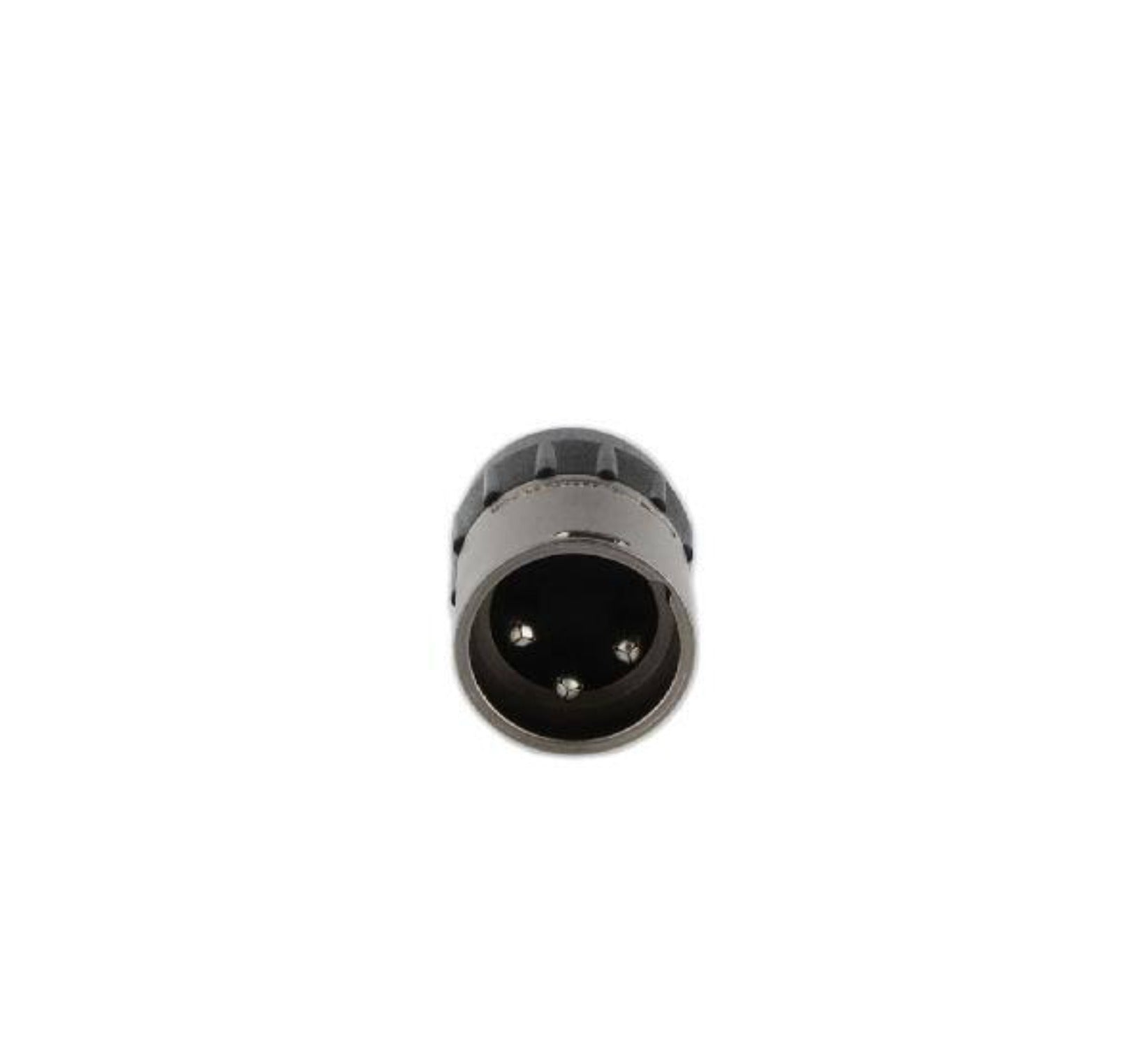

The satin nickel AC Series XLR Male Cable Connector with Standard Metal Shell by Amphenol Audio Products is for soldering to studio-quality cables and is engineered for critical recording and broadcast applications. It features a zinc diecast shell, compact 2.5mm solder bucket connections, and Jaws style cable clamps to suit 3 to 8mm cables. It offers an overmolded cable support boot and socket contacts designed for better contact resistance. Precision machined pin contacts are standard. This AC series connector is RoHS compliant.

More Information

Technical Specification

  • Zinc Diecast Shell Housing
  • Compact 2.5mm Solder Buckets
  • Ergonomic Sleeve for Improved Grip
  • Jaws Style Cable Clamp
  • Precision Machined Pin Contacts
  • RoHS Compliant


Contact Resistance 3 mΩ
Current Rating 15 A
Gender Male
Max Current Rating 15 A
Max Operating Temperature 75 °C
Max Voltage Rating (AC) 133 V
Min Operating Temperature -25 °C
Number of Contacts 3
Number of Ports 1
Number of Positions 3
Orientation Straight
Packaging Bulk
Schedule B 8536695050
Termination Solder
Voltage Rating 133 V
Voltage Rating (DC) 133 V
Height 19 mm
Length 82 mm
