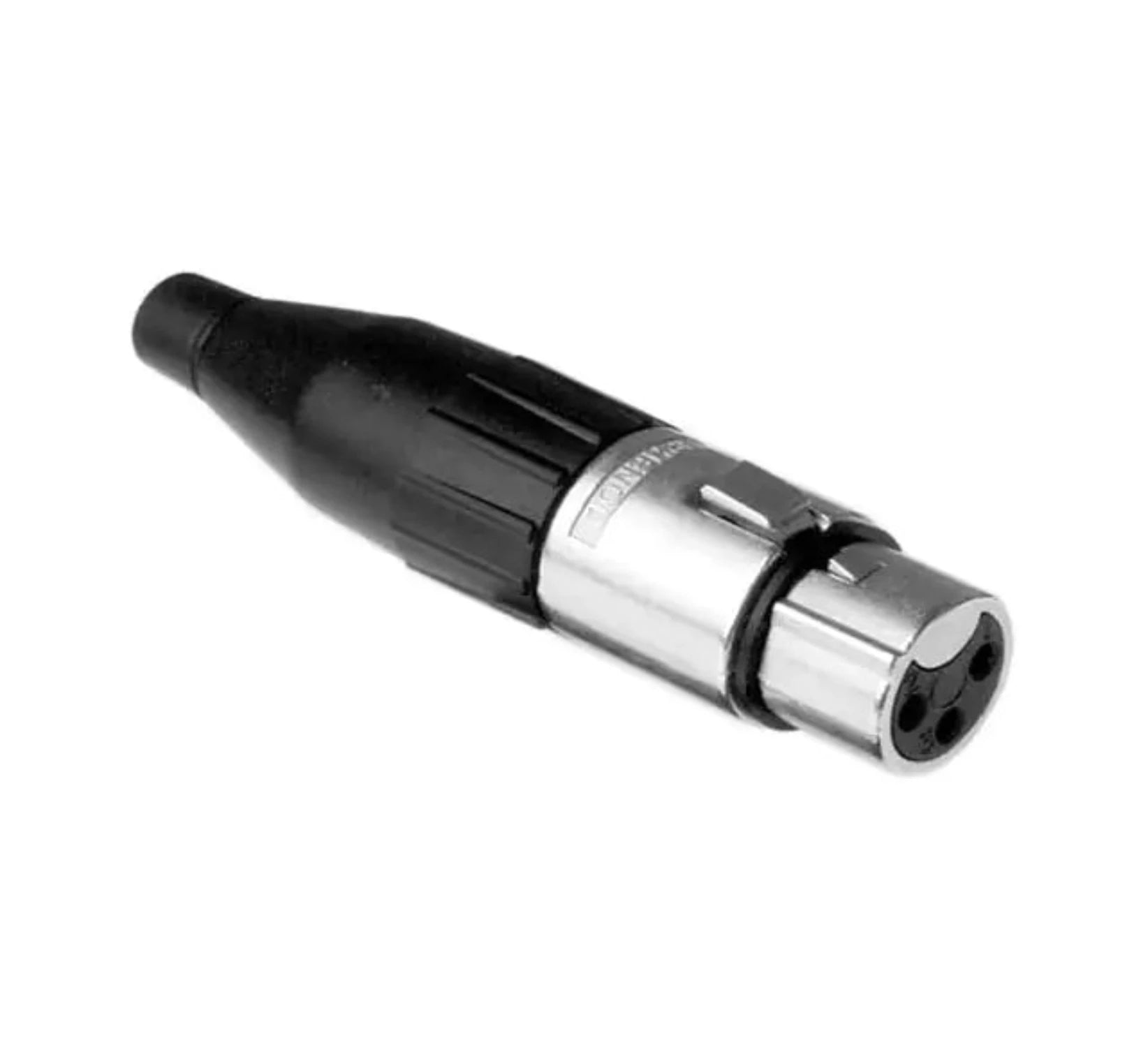

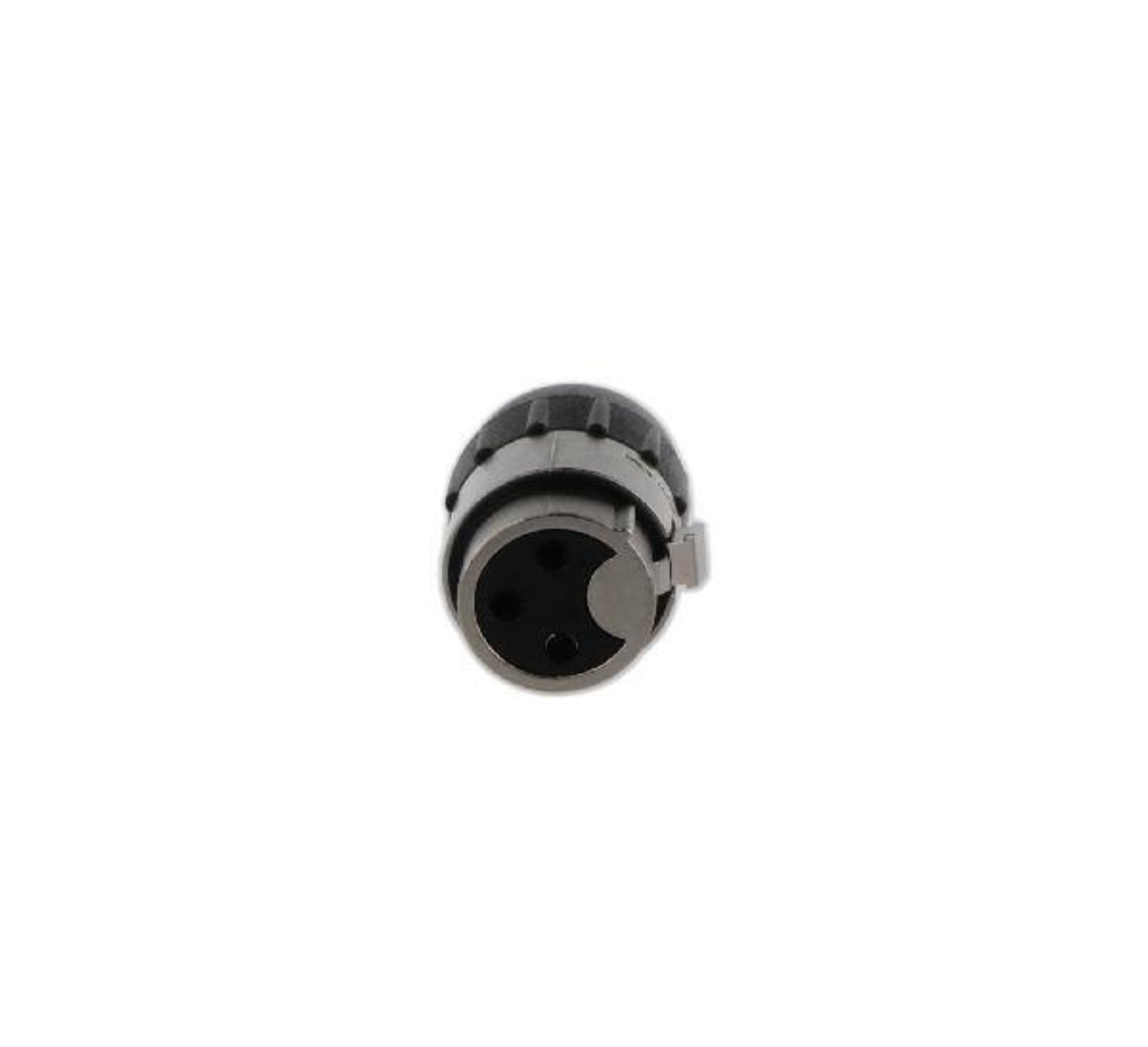

he satin nickel AC Series XLR Female Cable Connector with Standard Metal Shell by Amphenol Audio Products is for soldering to studio-quality cables and is engineered for critical recording and broadcast applications. It features a zinc diecast shell, compact 2.5mm solder bucket connections, and Jaws style cable clamps to suit 3 to 8mm cables. It offers an overmolded cable support boot and socket contacts designed for better contact resistance. Precision machined pin contacts are standard. This AC series connector is RoHS compliant.

More Information

  • Zinc Diecast Shell Housing
  • Compact 2.5mm Solder Buckets
  • Ergonomic Sleeve for Improved Grip
  • Jaws Style Cable Clamp
  • Precision Machined Pin Contacts
  • RoHS Compliant

Technical Specification

Amphenol AC Series Specs

Electrical Characteristics Service Voltage RMS: 133 V (Not suitable for domestic applications above 50 V)
Test Voltage AC RMS: 1400 V
Current Carrying Capacity: Solder 15 A
Printed Circuit Board (PCB): 15 A
Typical Contact Resistance: ≤ 3 m Ω
Insulation Resistance: ≥ 1000 M Ω
Climatic Characteristics Protection Class: IP 40
Operating Temperature: -13°F to 167°F (-25˚C to 75˚C)
Materials Connector Shell: Diecast Zinc Alloy
Shell Finish: Nickel
Insulators: UL94 V-0 PA66, 30% Glass filled
Boot: UL 94 V-0 Noryl N 190 / Santoprene
Boot Finish: Black
Cable Clamp: Standard Solder JAWS: UL 94 V-0 Modified PPO Resin (Black)
Sleeve: Noryl N 190
Female Contact: Stamped solder phosphor bronze
Plating: Tin
Mechanical Specifications Insertion and Withdrawal Force: ≥10 N - ≤30 N
Typical Cable Retention Force: 50 lb to 100 lb (22 kg to 44 kg)
Cable O.D. Range: 0.118 to 0.314" (3 to 8 mm)
Mechanical Operations: 1000 mating cycles Weight - Metal: 0.07 lb (31 g)
