MIDI CONTROL

Xone:K2 is a compact designed MIDI Controller for use with any  DJ software such as Ableton, Virtual DJ, MixVibes, Mixx and Traktor Pro. Xone:K2 can even be used to control lights or VJ software – if it can receive MIDI data it can take commands from K2. What each control does is entirely up to you – you can create a completely customised layout that perfectly fits the way you want to work. Xone:K2 has 52 physical controls – including 12 analogue and 6 endless rotary encoders with push switch, 4 linear faders, and 30 backlit performance switches – providing up to 171 MIDI control commands across 3 layers. We also provide example maps to get you started out the box and information on how to set up your own.

LATCHING LAYERS

A Latching Layers system lets you assign controls to multiple layers, so a single physical control can be given up to 3 functions. You can configure all, some or none of K2’s controls to be linked to the Latching Layers system. As a quick visual reminder, when toggling through layers all switches assigned to a particular layer will illuminate in the appropriate colour.

AUDIO INTERFACE

Xone:K2 has a high quality internal, four channel (2 stereo) 48kHz soundcard. Setup options include using the K2 with a pair of headphones, feeding a pair of headphones and a PA system, or connecting to an external DJ mixer.

CONSTRUCTION

Its slim line chassis, soft touch controls and minimal looks set K2 apart from the pack. There’s plenty of substance too – Xone:K2 is built to Allen & Heath’s renowned touring grade audio and build quality standards, including the use of steel nuts on all rotary controls to protect the circuitry from impact damage.

CASE/STAND

Xone:K2 comes packed in a black padded case as standard. As well as keeping it safe on the road, the case doubles as a stand, elevating the K2 up to the same height as most pro DJ mixers.

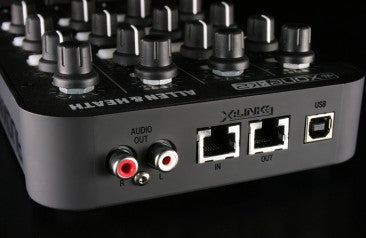

X:LINK

Two or more K2s can be linked via our X:LINK protocol, expanding the control capability. X:LINK uses a standard RJ45 connector and distributes power and data, allowing connection to X:LINK compatible devices, including Xone:DB4 and DB2, to expand MIDI data without using additional USB ports.

Technical Specifications
  • Compact universal MIDI controller that’s perfect for software-based DJing
  • Flexible MIDI layout lets you control any MIDI-based software
  • Included layout presets give you control over many popular software systems, right out of the box
  • 12 x analog pots 6 and x encoders with push switches give you tons of control over continuous parameters
  • 4 x linear faders with firmware-based soft takeover functions
  • 30 x backlit soft buttons with red, amber, and green LEDs give you the feedback you need
  • 3 x programmable latching control layers give you a total of 171 MIDI controls
  • Built-in 4-channel audio interface gives you all of the outputs you need to DJ
  • Allen & Heath’s X:LINK protocol lets you daisy chain MIDI and power with other X:LINK-equipped devices via Ethernet cable
  • Included carrying case doubles as stand, elevating the control surface to the height of most DJ mixers and turntables

Get tons of control over your favorite DJ software with the Allen & Heath Xone:K2 MIDI controller!
