Next-generation Digital Mixing

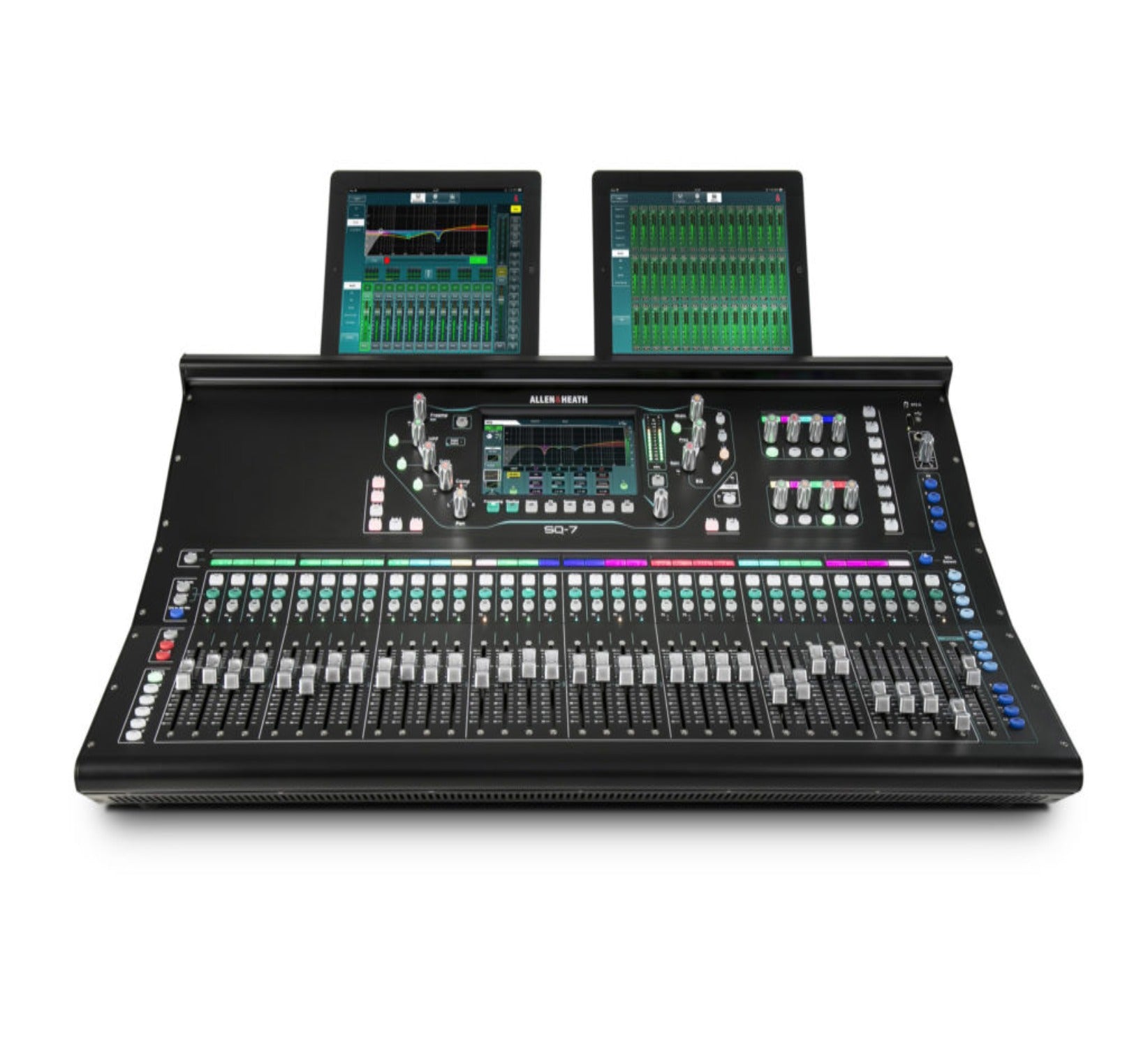

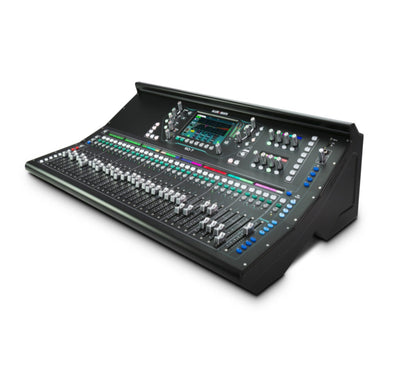

Based on Allen & Heath's acclaimed XCVI 96kHz FPGA audio engine, the SQ-7 digital mixer delivers extensive live sound mixing capabilities. Even with its powerful processing, the SQ-7 delivers best-in-class audio quality with less than 0.7ms of latency. You'll have a lot of flexibility when it comes to creating monitor mixes, with up to 12 stereo mixes (groups or auxiliaries) in addition to the main LR out. Eight stereo FX engines provide studio-quality effects, with dedicated returns. Complete with a 32 x 32 USB audio interface, and dedicated controls for mixing convenience, the Allen & Heath SQ-7 is a smart mixing solution for live music, worship sound, and educational facilities.

Enquire Now

Product details

More Information

Allen & Heath SQ-7 Digital Mixer Features:

  • 48-input digital mixer with 96kHz FPGA processing
  • Best-in-class audio quality, with less than 0.7ms latency
  • 33 faders for hands-on mixing, with 6 fader layers
  • Create up to 12 stereo mixes in addition to the main LR mix
  • SQ MixPad app (iOS/Android/macOS/Windows) for wireless mixing and offline show prep
  • SQ4You personal mixing app (iOS/Android) allows up to 8 performers to craft their own monitor mixes
  • 3 stereo matrices
  • 8 stereo FX engines with dedicated effects returns
  • 7-inch capacitive touchscreen for navigation
  • SLink port for remote audio and I/O expansion
  • 64-channel I/O port for network audio
  • Built-in 32 x 32 USB audio interface for multitrack recording
  • SQ-Drive allows for direct recording to a USB drive
  • Dedicated physical controls, plus 8 assignable SoftKeys
  • Automatic Mic Mixing makes it easy to manage large multi-mic setups
  • AES digital output
  • Rackmountable
Technical Specifications

Tech Specs

  • Type:Digital Mixer
  • Channels:48
  • Inputs - Mic Preamps:32 x XLR (mic/line)
  • Phantom Power:32 channels, Talkback
  • Inputs - Other:2 x 1/4" (Stereo 1), 2 x 1/4" (Stereo 2)
  • Outputs - Main:2 x XLR, 2 x 1/4" (A out, B out)
  • Outputs - Other:16 x XLR (stereo mixes, L/R)
  • Outputs - Digital:1 x XLR (AES)
  • Busses/Groups:36 Bus
  • Inserts:Internal Pre EQ/Compressor
  • Talkback:1 x XLR
  • MIDI I/O:USB (control)
  • Data I/O:1 x EtherCon (dSnake, DX mode, gigaACE), 1 x Ethernet RJ-45 (LAN TCP/IP)
  • Headphones:1 x 1/4"
  • USB:1 x Type B, 1 x Type A
  • Computer Connectivity:USB (32 x 32), Ethernet
  • Remote:1 x 1/4" (footswitch)
  • I/O Expansion Slots:1 x Option card port (Dante, Waves)
  • Faders:33 x 100mm motorized
  • A/D Resolution:24-bit/96kHz
  • EQ Bands:Parametric EQ, 28-band Graphic, HPF
  • Effects:Delay, Reverb, Chorus, Flanger, Phaser (8 x RackFX engine)
  • Signal Processing:Compressor, Gate
  • DAW Control:MIDI DAW control via USB
  • Screen:7" color touch screen
  • Storage:USB Type A (16 x 16)
  • Software:Wireless Remote Mixing app iPad/Android (network router not included)
  • Power Source:Standard IEC AC connector
  • Height:7.8"
  • Depth:20.3"
  • Width:31.7"
  • Weight:23.1 lbs.
