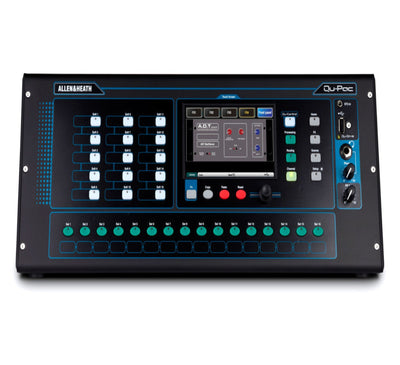

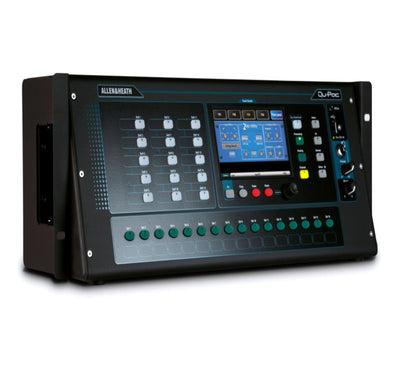

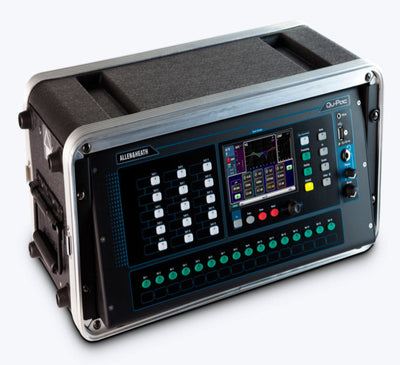

Qu-Pac takes the power and legendary quality of the Qu family and shrinks it into a compact desk or rack mount format.

With Qu-Pac you are free to mix from your iPad, but the full functions of the mixer can be accessed from the front panel and touchscreen should you need them.

Enquire Now

Product details

More Information

Allen & Heath Qu-Pac Features:

  • 16 acclaimed AnaLOGIQ recallable preamps
  • 16 onboard Mic/Line Inputs (XLR/TRS)
  • Expandable up to 38 inputs via dSnake
  • Three Stereo Inputs (TRS)
  • 16 Mono + three stereo input channels
  • 12 onboard Mix Outputs (XLR)
  • Four Stereo Groups
  • Two Stereo Matrix Outs
  • AES Digital Out
  • Four DCA Groups
  • Four Mute Groups
  • Qu-Pad iPad App for all live mixing controls
  • Qu-You iPhone App for personal monitoring
  • Qu-Drive direct Multitrack recording and playback on USB drives
  • 15 Soft Keys
  • 16 Custom Select keys
  • Qu-Control custom screen to suit application
  • Four FX engines
  • Four FX Sends/Returns
  • 32x32 USB Audio Interface
  • 5" Touchscreen
  • iLive FX Library
  • Compatible with ME Personal Mixing System
  • Trim, polarity, HPF, gate, insert/ducker, 4-band PEQ, compressor, and delay on all Inputs
  • Insert, 4-band PEQ, 1/3 octave GEQ, compressor, and delay on all Mix outputs
  • Built-in Signal Generator
  • RTA with Peak Band indication
Technical Specifications

Tech Specs

  • Type:Digital
  • Channels:35 (32 x Mono, 3 x Stereo)

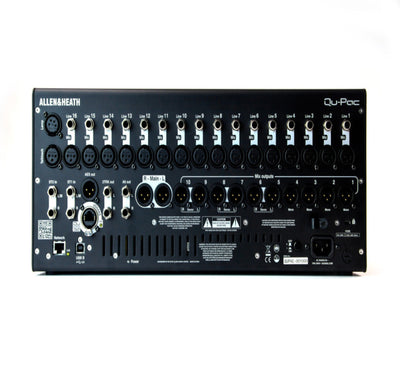

  • Inputs - Mic Preamps:16 x XLR
  • Inputs - Line:20 x TRS
  • Inputs - Other:1 x 1/8"
  • Outputs - Main:2 x XLR
  • Outputs - Other:10 x XLR, 2 x TRS (2-track), 2 x TRS (Alt)
  • Outputs - Digital:1 x AES/EBU (XLR)
  • Send/Return I/O:4 x TRS
  • Busses/Groups:4 x Stereo Groups, 4 x DCA Groups, 4 x Mute Groups
  • Talkback:Yes
  • Data I/O:Ethernet
  • Headphones:1 x 1/4"
  • USB:1 x Type B, 1 x Type A
  • Computer Connectivity:USB (32 x 32)
  • EQ Bands:4-band Parametric
  • Effects:Yes
  • DAW Control:Yes
  • Rackmountable:Yes
  • Height:7" (Desk), 7" (Rack)
  • Depth:7" (Desk), 6.9" (Rack)
  • Width:17.3" (Desk), 19" (Rack)
  • Weight:14.5 lbs.
