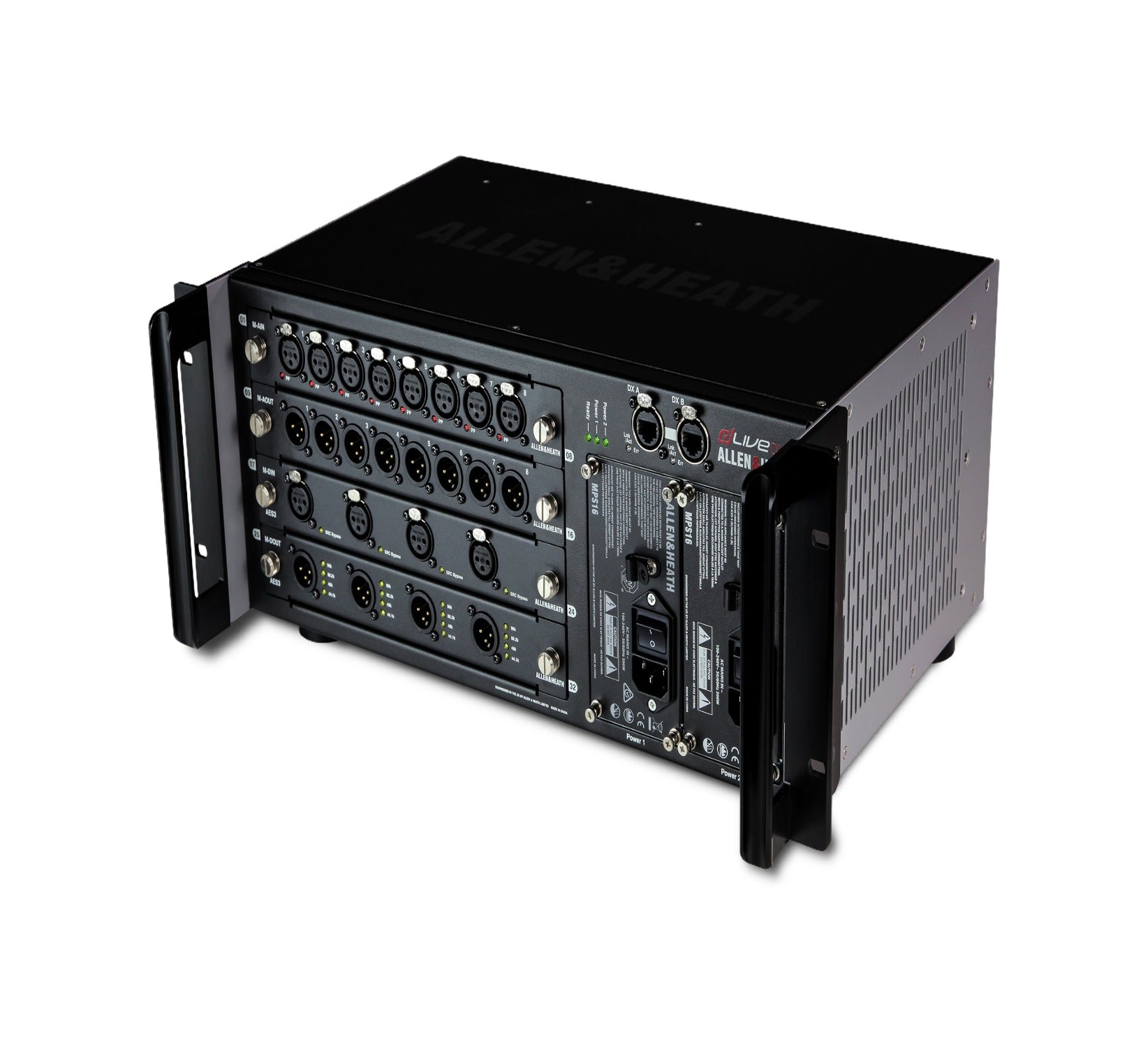

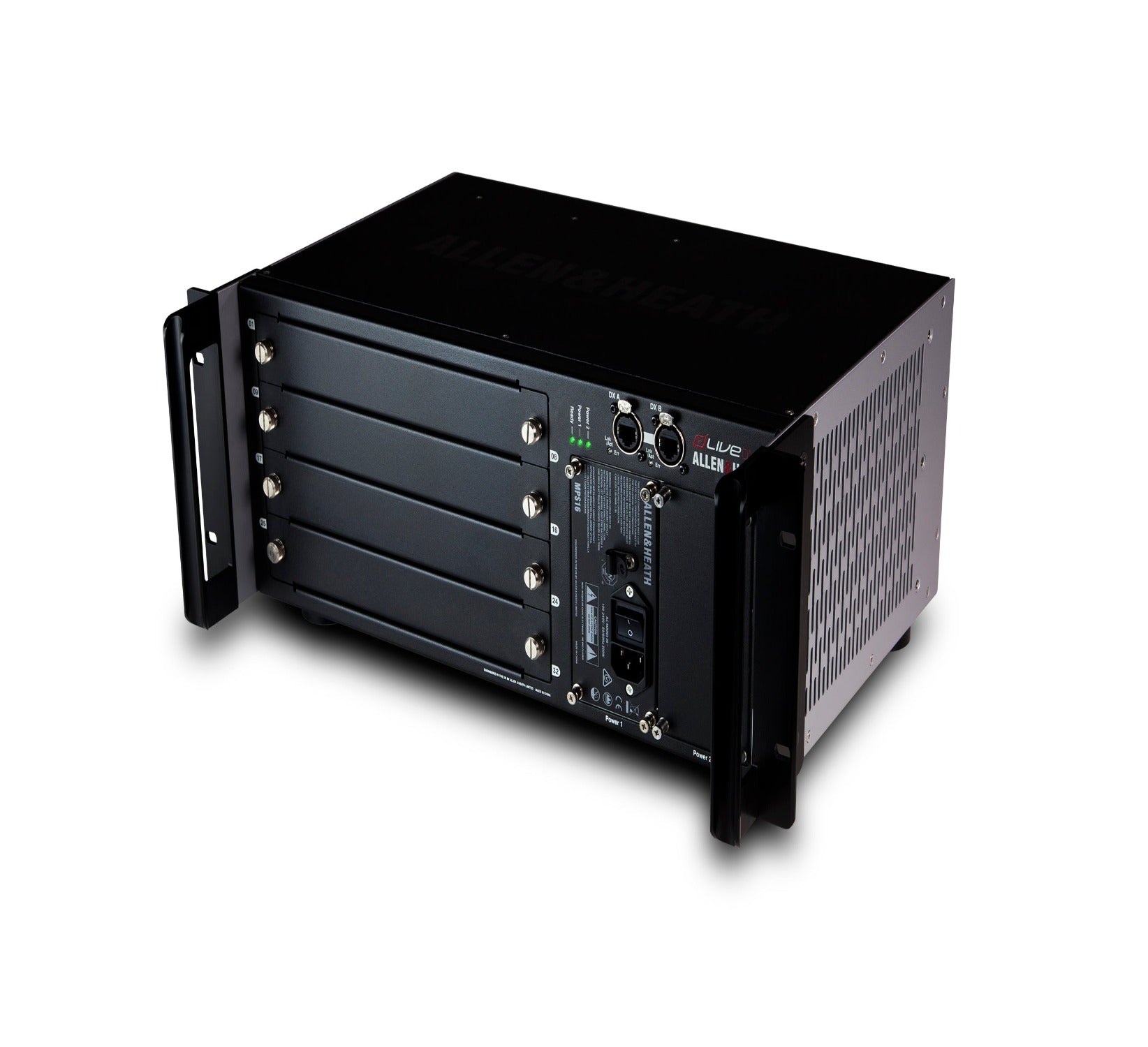

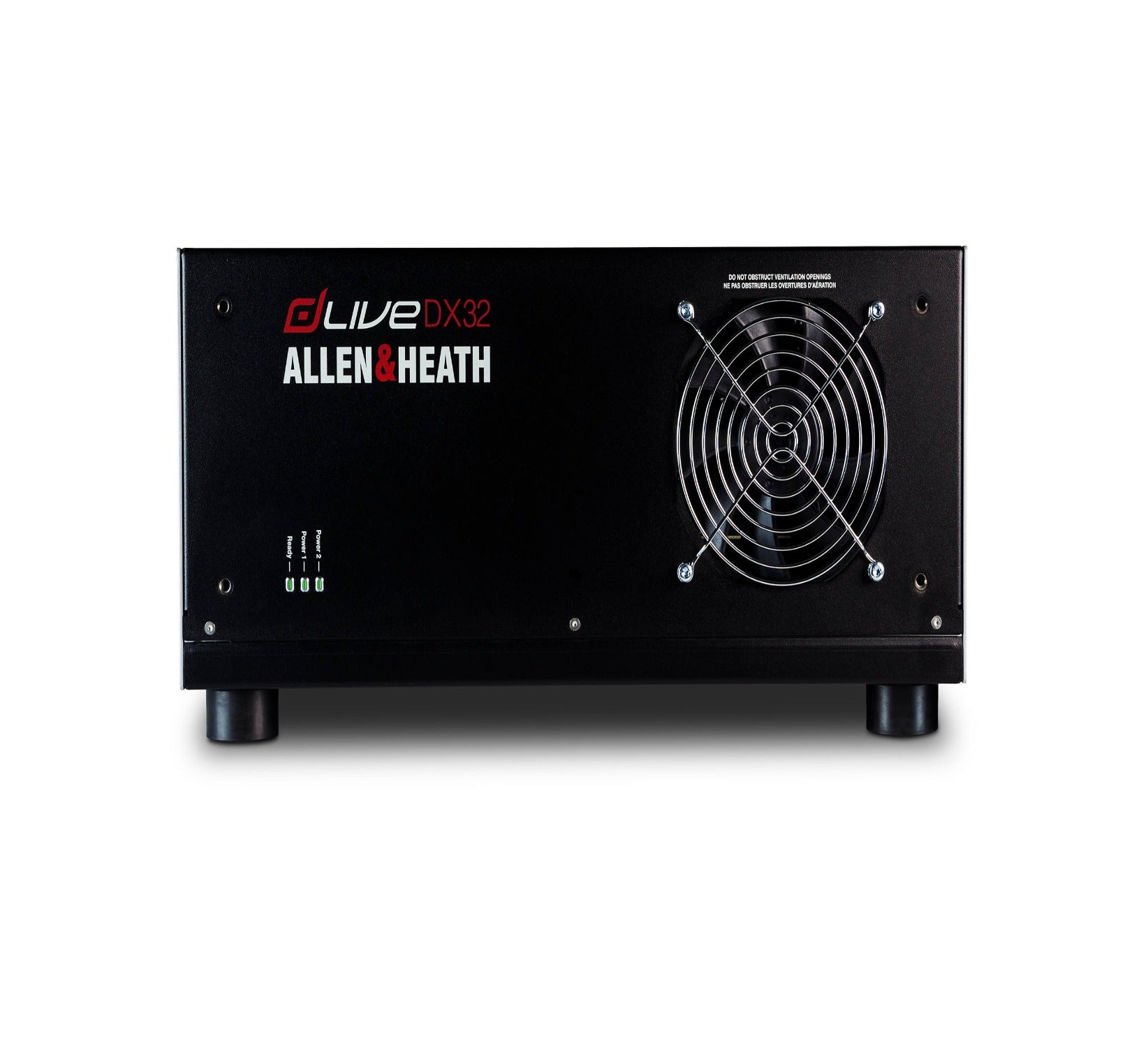

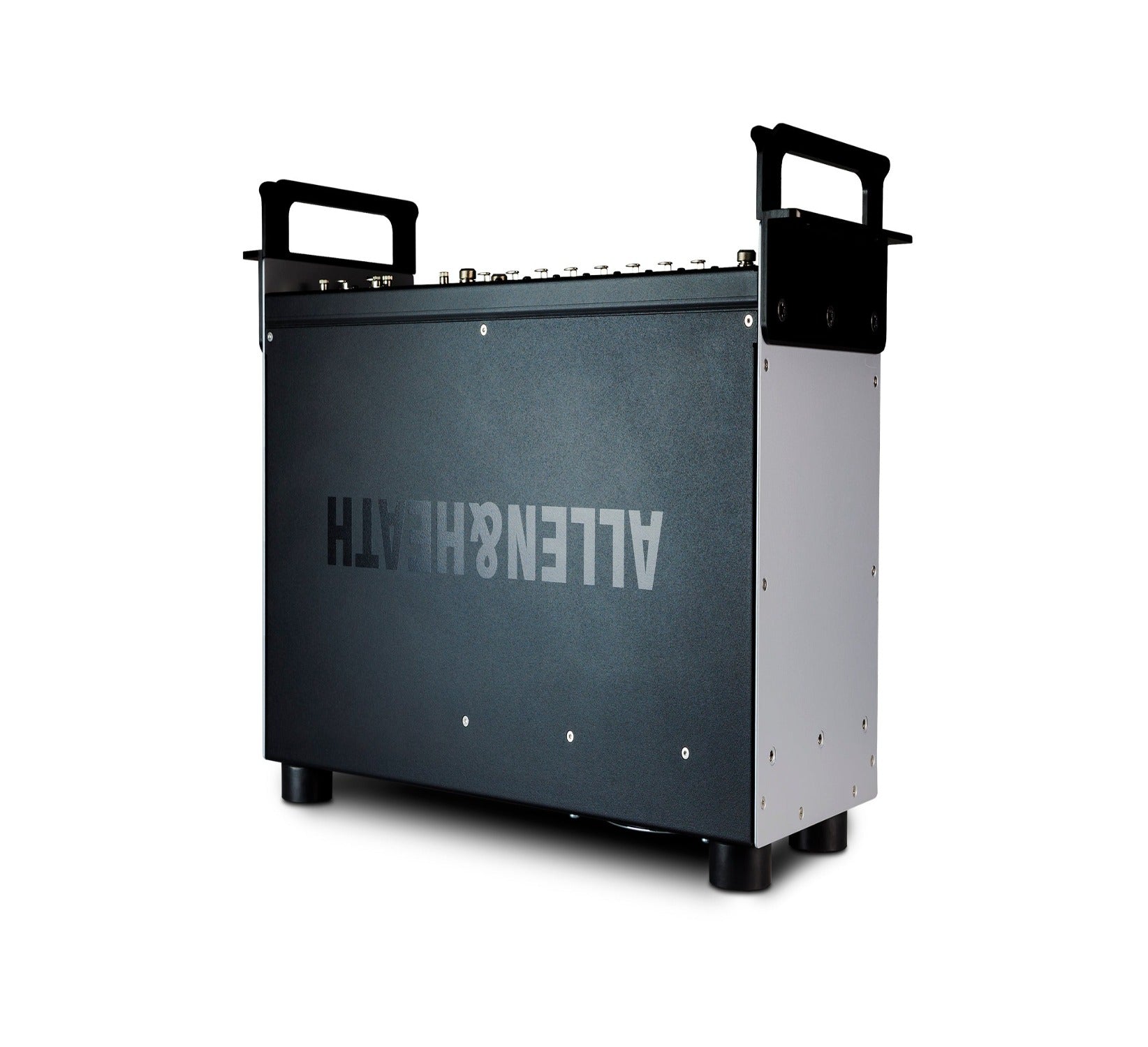

96kHz Modular Expander w/Full Redundancy Option

The DX32 Expander adds remote, modular I/O to a dLive, AHM-64, Avantis or SQ system. It provides 4x 8 channel slots to fit a selection of analogue or digital I/O.

The DX32 connects via a single Cat5e cable to the dLive Surface, MixRack, SQ SLink port, Avantis SLink port, AHM-64 SLink port or DX Hub via a secure etherCON port. Two cables can be used for redundant connection to compatible dLive hardware.

More Information

  • 4x 8ch modular design
  • Redundant, hot swappable power supply
  • Dual redundant Cat5 link to Surface or MixRack
  • Rack-mounted or shelf / floor operation
  • 3 Year Warranty

Technical Specification

Tech Specs
  • Type:dLive Modular Expander
  • Data I/O:2 x Dual Redundant EtherCON (32 x 32 channels)
  • I/O Expansion Slots:4 x Slots
  • Rackmountable:4U
  • Height:7"
  • Depth:11.4"
  • Width:17"
  • Weight:23 lbs.
