ALLEN & HEATH DX168

Name: ALLEN & HEATH DX168
Brand: SOUND4U
Availability: InStock

Product variants

16 XLR Input / 8 XLR Output 96kHz Portable DX Expander

The DX168 is a rugged, 96kHz portable expander for adding remote I/O to a dLive, Avantis or SQ system, or to the AHM-64 audio matrix processor.

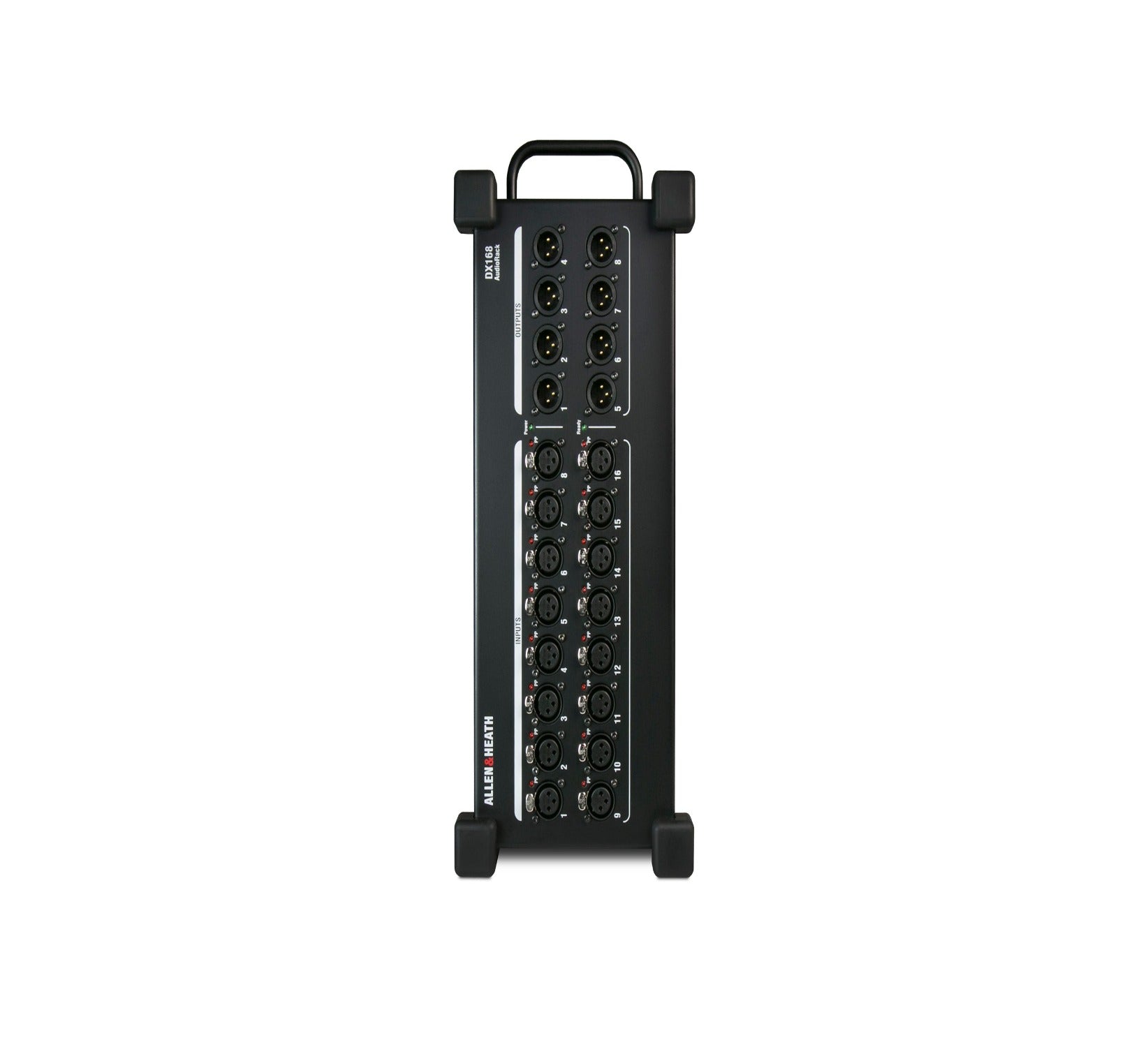

Each DX168 features 16 mic preamps with independent Phantom Power LED indicators, plus 8 XLR line outs.

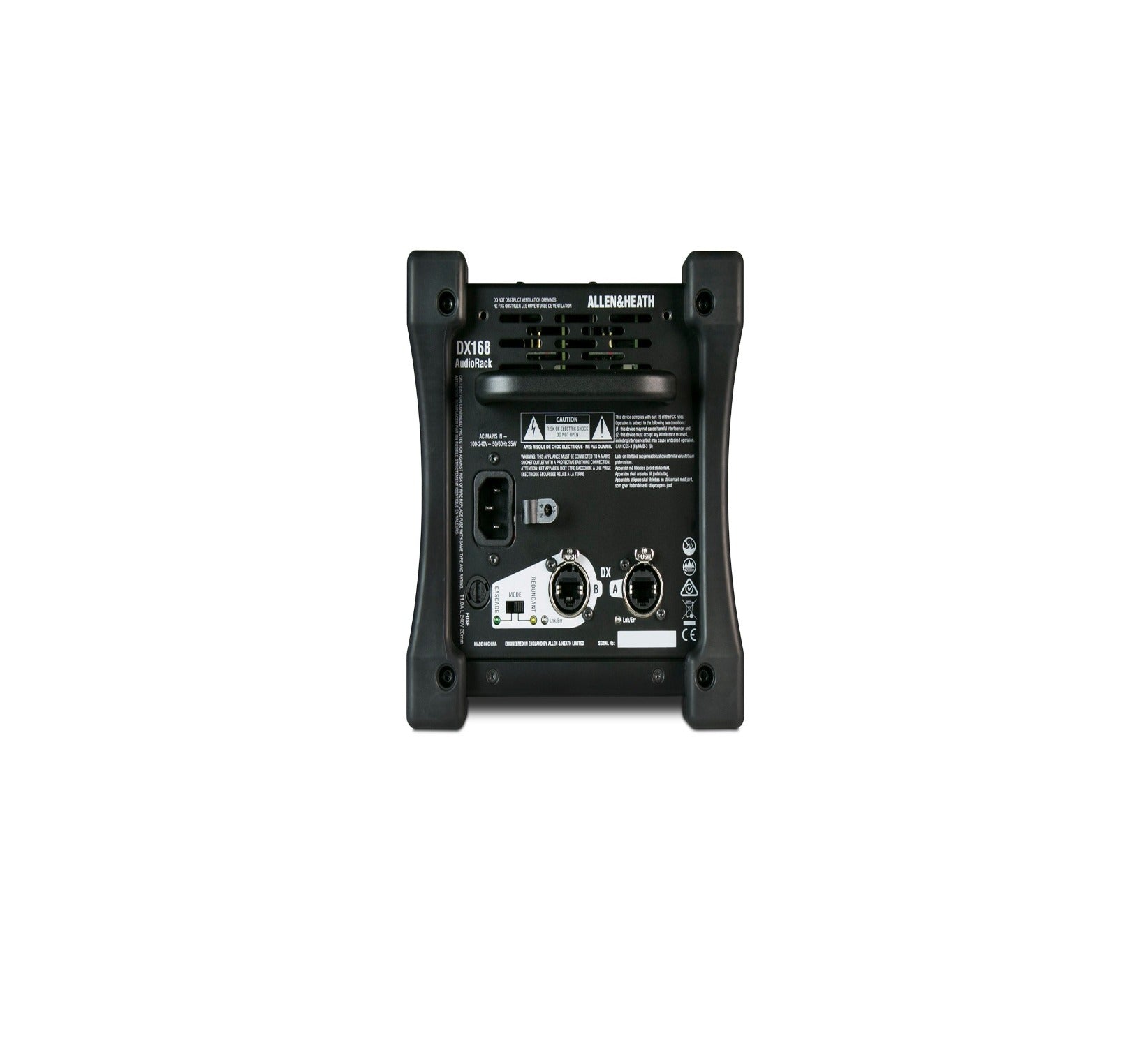

The DX168 connects via a single Cat5e cable to the dLive Surface, MixRack, SQ mixer, Avantis mixer or upstream DX168 via a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX168 for additional remote I/O.

The Expander’s rugged design, with hard-wearing rubber bumpers, allows it to be placed directly on the stage floor during performances. Weighing in at just 4.8kg and featuring a sturdy carry handle, the DX168 offers the convenience and portability needed in rental, education, houses of worship and many other environments. An optional 4U rack mounting kit is available which allows installation in industry standard 19-inch racks.

With dLive

More Information

16 Mic Preamps on XLR with Phantom Power status LEDs
8 XLR Line Outs
Compatible with dLive S Class and dLive C Class hardware
Cascade mode allows daisy-chaining of 2 DX168 Expanders for additional I/O
Redundant DX connection to compatible dLive hardware
Optional 19-inch rack mount kit available
Plug and Play – no IP addressing required
Compatible with CAT5e (or higher) cables of up to 100m
Rubber bumpers
Carry handle

Technical Specification

Tech Specs

Type:DX I/O Expander
Compatibility:dLive S/C Class Systems, dLive SQ Series
Channels:16 x 8
Inputs - Mic Preamps:16 x XLR
Phantom Power:16 channels
Outputs - Main:8 x XLR (line outs)
Data I/O:2 x EtherCon (Cat5e DX ports)
Rackmountable:Yes (kit sold separately)
Power Source:Standard IEC AC cable
Height:7.44"
Depth:7.16"
Width:16.39" (with handle)
Weight:10.1 lbs.
