Product details

More Information

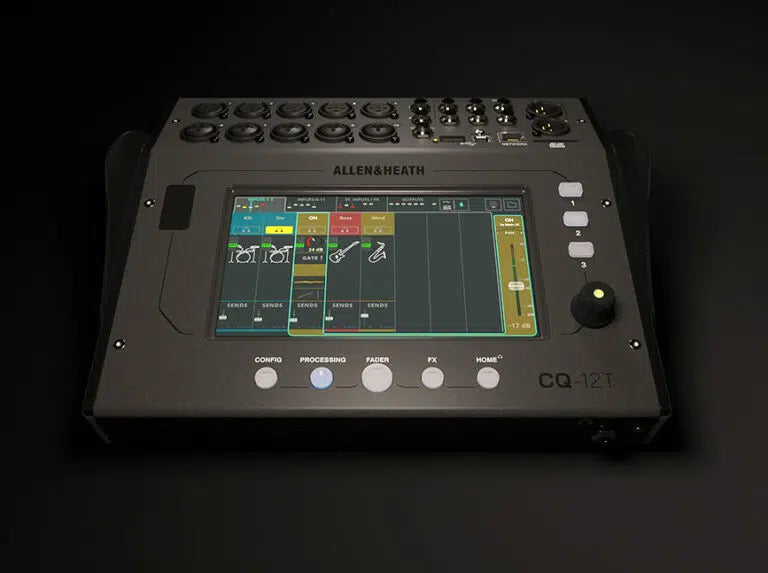

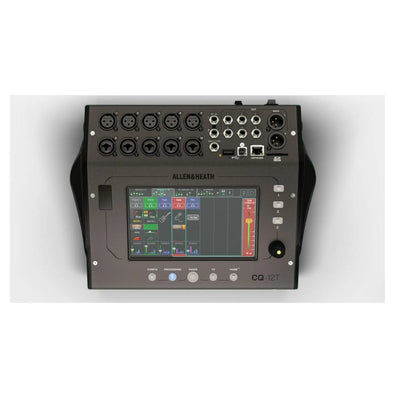

  • A compact 10-channel digital mixer that fits in your backpack
  • Exhibits outstanding sound quality at 96kHz
  • 10 excellent-sounding microphone preamps and stereo Bluetooth input

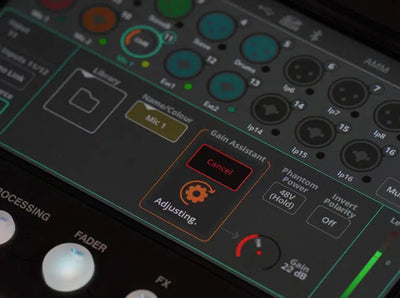

  • Preamp Gain Assistant takes all the guesswork out of setting levels
  • Feedback Assistant makes locating and neutralizing acoustic feedback frequencies a piece of cake
  • Instrument-based Quick inputs help you get a great sound quickly
  • Complete inputs allow for in-depth tweaking

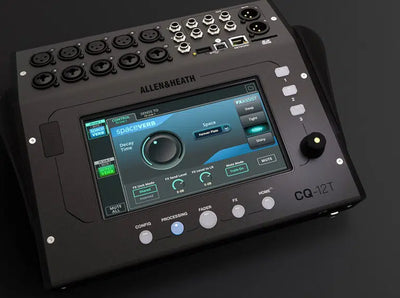

  • Smart-FX engines include reverb, delay, modulation, and more
  • Tactile encoder adjusts a wide range of parameters with a single, easy-to-use knob
  • Custom keys tailor the mixer to your preferred workflow

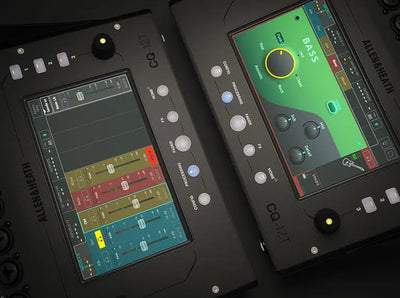

  • Responsive touchscreen combines physical control and at-a-glance visual feedback
  • 16 channels of SD card recording and playback via an onboard SD card reader
  • Built-in 16-in/16-out USB audio interface enables top-shelf digital multitrack recordings using a computer and DAW
Technical Specifications
  • Channels:10
  • Inputs - Mic Preamps:5 x XLR-1/4" Combo, 5 x XLR
  • Phantom Power:10 Channels
  • Inputs - Line:2 x 1/4" TRS (L, R)
  • Outputs - Main:2 x XLR (main)
  • Outputs - Direct:6 x 1/4" TRS (monitors)
  • Data I/O:1 x RJ45
  • Headphones:1 x 1/4" TRS
  • USB:1 x Type B, 1 x Type A
  • Computer Connectivity:USB (16 x 16), Ethernet
  • Bluetooth:Stereo Input
  • Remote:1 x 1/4" (footswitch)
  • Effects:Reverbs, Delays, Modulators
  • Signal Processing:96kHz FPGA
  • Features:Feedback Assistant
  • Screen:7" touchscreen
  • Storage:SD card slot
  • Software:CQ MixPad App, CQ4You App
  • Rackmountable:Yes (kit sold separately)
  • Power Source:12V DC Power Supply
  • Height:3.5"
  • Depth:9.5"
  • Width:11.4"
  • Weight:5.3 lbs
  • Manufacturer Part Number:AH-CQ12T
