24 XLR Input / 12 XLR Output – 48kHz

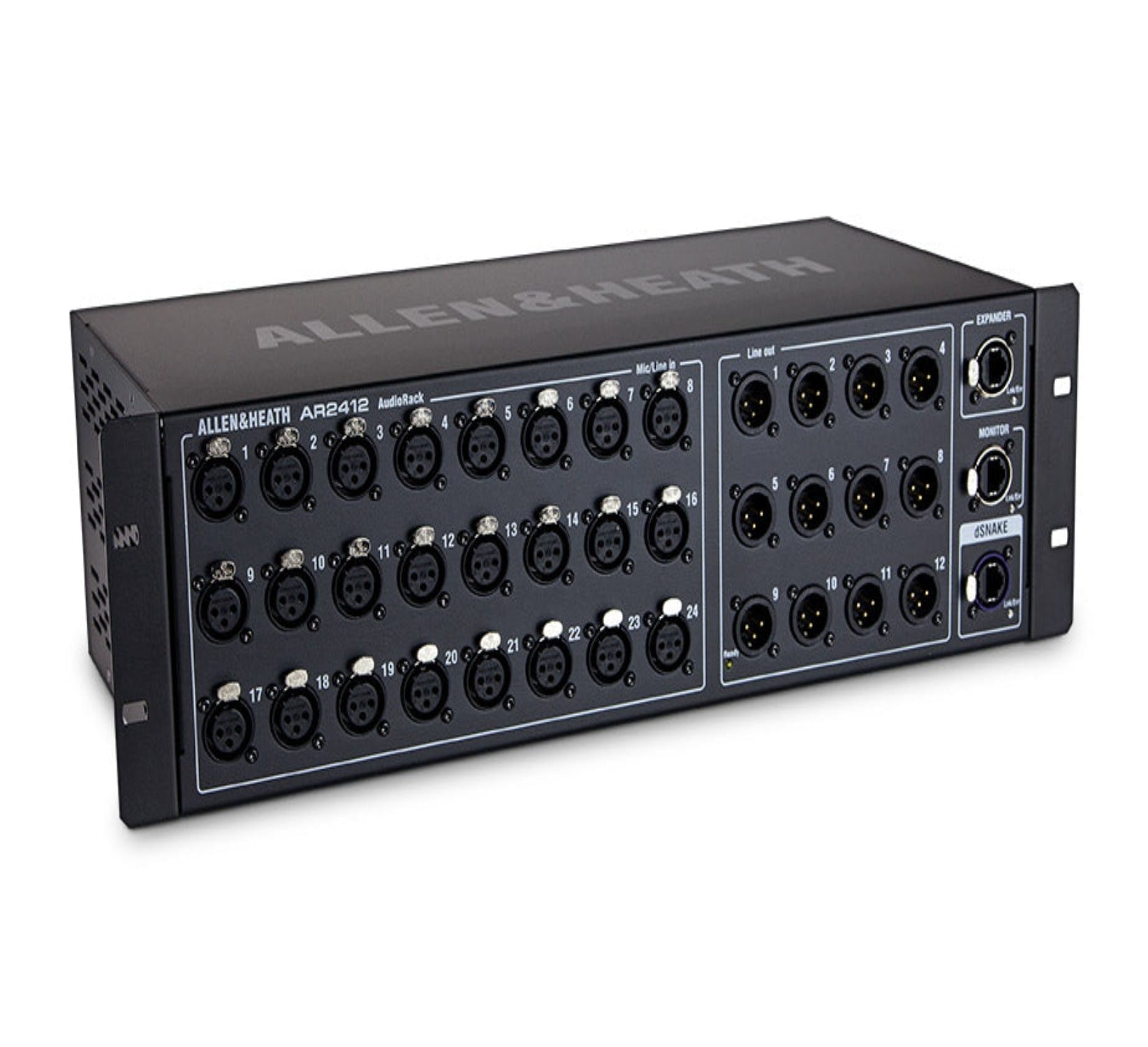

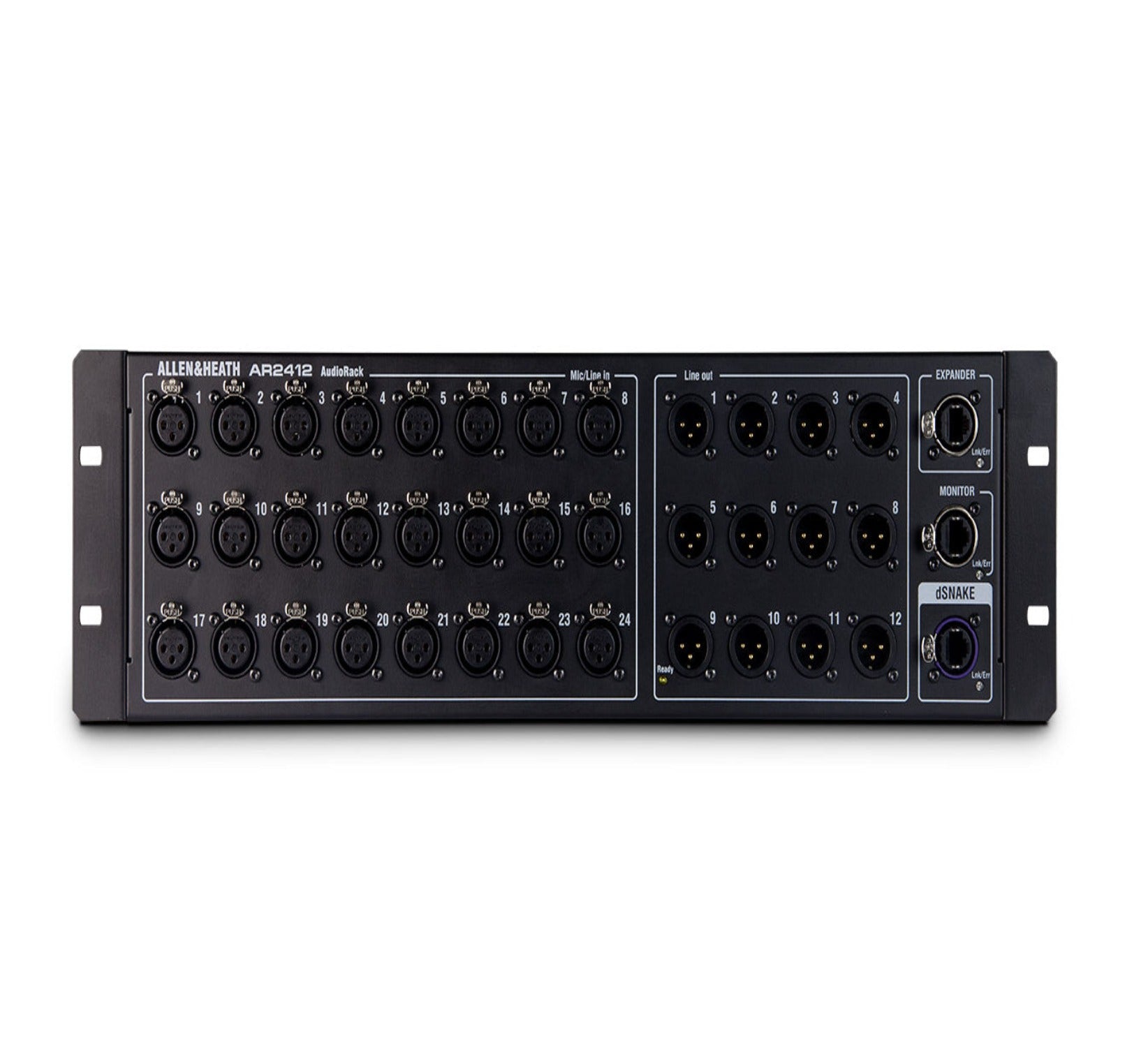

AR2412 is a 48kHz, 24 XLR input, 12 XLR output AudioRack, compatible with Qu, Avantis and SQ mixers, and with the AHM-64 audio matrix processor.

Adding an AR2412 to your system lets you position some or all of your I/O up to 100m from the mixer, connected over a single Cat5 cable running Allen & Heath’s dSNAKE protocol.

dSNAKE provides control to the remote preamp, and all mic preamps are scene recallable.

AR2412 also includes a Monitor port for connection to ME-1 personal mixers, and an Expander port for daisy chaining to an AR84 or AB168.

More Information

  • 4 Mic Preamps on XLR
  • 12 XLR Line Outs
  • dSNAKE Connection with locking Ethercon port
  • Expander Ethercon port for connection to an AR84 or AB168
  • Dedicated port for ME personal mixing system
  • Rack mountable

Technical Specification

  • Type:Stagebox Interface
  • Compatibility:GLD-80, GLD-112 Mixers
  • Channels:24 x 12
  • Inputs - Mic Preamps:24 x XLR (mic/line)
  • Phantom Power:Remote controlled from mixer
  • Outputs - Main:12 x XLR
  • Data I/O:1 x Ethernet (dSnake), 1 x Ethernet (ME personal mixers), 1 x Ethernet (additional racks)
  • Rackmountable:Yes, 3U

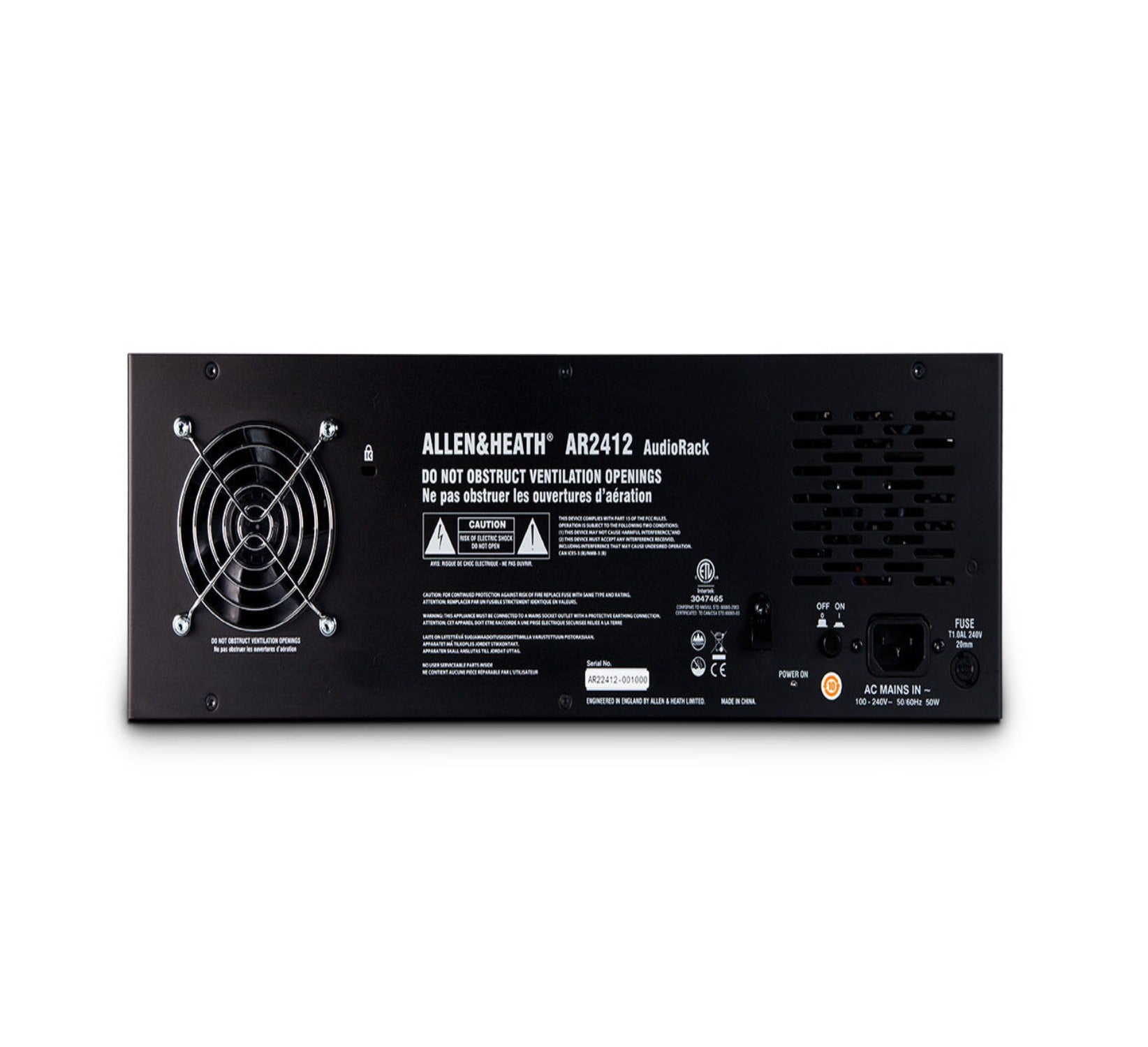

  • Power Source:Standard IEC AC cable
