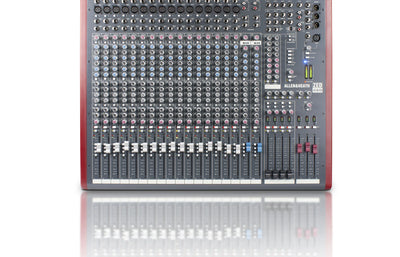

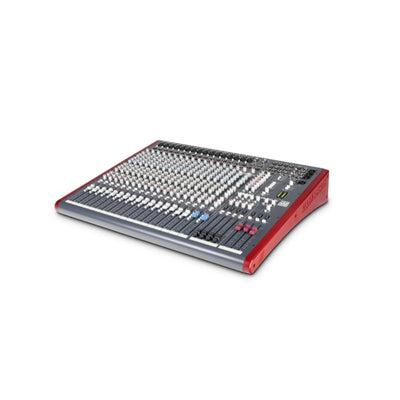

The Allen & Heath ZED-420 / ZED-2042X is a professional analog mixing console designed for live sound, studio, and installation use. It delivers high-quality audio performance with DuoPre™ preamps, offering low noise and wide gain range. The mixer features a user-friendly layout with powerful EQ, flexible routing, and USB connectivity for recording and playback. Built with durable components like Neutrik connectors and ALPS faders, it ensures reliability and precise control, making it ideal for professional audio applications.

Enquire Now

Product details

More Information
  • 16 mono channels
  • 2 dual stereo inputs with 4-band EQ
  • Neutrik mic XLR
  • Neutrik 1/4 inch jacks
  • Channel insert
  • Super wide gain ‘DuoPre’ mic line input
  • 4-band EQ with 2 swept mids and in/out switch
  • Illuminated mute
  • Sound image pan
  • Illuminated PFL & peak warning indicator
  • ALPS 100mm faders
  • 6 auxiliary sends (2 pre, 2 post, 2 pre/post)
  • 4 sub groups fed from each channel
  • All inputs with level control
  • 12 bar meters
  • L, R and M main mix outputs
  • 2 matrix sections available; can send output to USB
  • Individual channel 48V phantom power
  • Direct output on every mono channel
  • Peak and signal indication on every channel
  • Configurable USB stereo audio in/out
  • Master level controls on all outputs
  • Easy to use layout – all connections and controls on top surface
Technical Specifications
  • 16 mono channels + 2 dual stereo inputs
  • DuoPre™ mic/line preamps with wide gain range
  • Neutrik XLR & 1/4" jack inputs
  • 4-band EQ with 2 swept mids
  • 6 auxiliary sends (2 pre, 2 post, 2 switchable)
  • 4 subgroups with flexible routing
  • L, R & Mono main outputs
  • Direct output on every mono channel
  • ALPS 100mm professional faders
  • Individual 48V phantom power per channel
  • Peak, signal LEDs & 12-bar metering
  • USB stereo audio interface (in/out)
