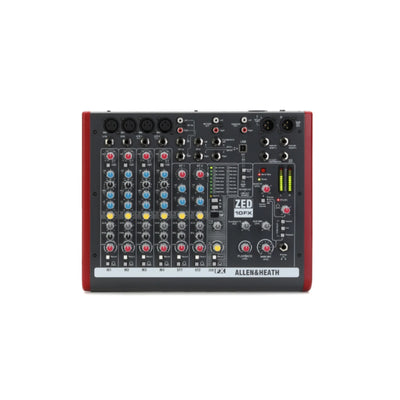

ALLEN & HEATH ZED 10 FX
ALLEN & HEATH ZED 10 FX

ALLEN & HEATH ZED 10 FX

The ZED-10FX mixer is a compact and versatile mixer built for both live performances and studio setups. It offers 4 high-quality mic/line inputs and 3 stereo channels, making it suitable for small bands, duos, or solo artists. A standout feature is its 16 built-in effects—including delays, reverbs, chorus, and flanger—with adjustable parameters and tap tempo support for precise sound control. With USB connectivity for easy recording and playback on Mac and PC, it delivers a powerful all-in-one mixing solution.

Enquire Now

Product details

More Information
  • 10-channel mixer with four XLR and three stereo inputs
  • Guitar DI
  • 3-band EQ with MusiQ, an optimized slope
  • USB
  • High pass filter
  • Pan control on every channel
  • Two stereo channels
  • Stereoplayback input
  • Advanced monitoring facilities
  • 1/4" headphone output
  • Stereo record out
  • Main LR
  • Additional stereo bus
  • 12-bar LR meters
  • Internal mains power supply
  • 19" rack mounting kit ZED10-RK19 available for ZED-10FX
Technical Specifications
  • Type:Analog
  • Channels:10
  • Computer Connectivity:USB (2 x 2)
  • Inputs - Mic Preamps:4 x XLR
  • Phantom Power:4
  • Inputs - Line:4 x TRS (CH 1-4), 6 x TRS (CH 5-10 Stereo), 2 x RCA
  • Outputs - Main:2 x XLR (Main)
  • Outputs - Other:2 x RCA (Monitor), 2 x RCA (Rec)
  • Aux Sends:1 x Pre (Per Channel)
  • Send/Return I/O:1 x 1/4" (Aux)
  • Busses/Groups:Stereo Bus
  • Channel Inserts:2 x 1/4" (Main)
  • Headphones:1 x 1/4"
  • USB:1 x Type B
  • EQ Bands:3-band, Sweepable Mid (CH 1-4), 2-band (CH 5-10 Stereo)
  • Effects:Yes
  • Rackmountable:Yes
  • Height:3.7"
  • Width:13.2"
  • Depth:10.8"
  • Weight:7.3 lbs.
  • Manufacturer Part Number:AH-ZED10FX
