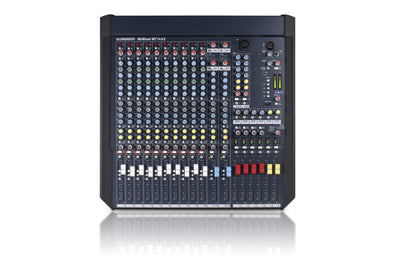

The Allen & Heath MixWizard W14:4:2 is a compact analogue mixer designed for live sound use, offering flexible routing for both front-of-house and monitor mixing. It includes 10 mic/line inputs and stereo channels, along with 6 aux sends and 4 groups, making it suitable for small to mid-sized setups. The mixer features a 4-band EQ with sweepable mids, a 100 Hz high-pass filter, and insert points for external gear, allowing detailed sound control and processing. Built with a durable metal chassis and rack-mountable design, it is known for reliability and long-term use, though it lacks modern features like digital effects or USB as it is a fully analogue console.

Technical Specifications
  • Type: Analogue mixing console
  • Channels: 14 total (10 mono mic/line + stereo channels)
  • Mic Preamps: 10
  • Groups (Buses): 4
  • Main Output: Stereo (L/R)

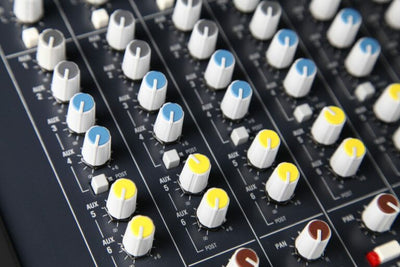

  • Aux Sends: 6 (monitor/effects routing)
  • EQ:
    4-band EQ
    2 sweepable mid frequencies
  • High-pass Filter: 100 Hz
  • Phantom Power: +48V (global)
  •  Faders: 100mm long-throw
    Inputs:
    XLR mic inputs
    TRS line inputs
  • Stereo Inputs: Dual stereo channels with independent gain
    Insert Points: Yes (channels & groups)
    Direct Outputs: Available on channels
    Outputs:
    Main stereo output
    Group outputs
    Aux outputs
  • Routing Modes: FOH / Monitor / Dual mode
  • Build: Rack-mountable metal chassis
