The GX4816 is a highly capable and efficient expansion solution for dLive and SQ mixing systems, delivering 48 premium-quality inputs and 16 outputs at 96kHz resolution. Its seamless plug-and-play integration, combined with versatile expansion capabilities via DX ports, allows users to significantly enhance their system’s I/O with minimal complexity, making it a dependable choice for professional live sound and studio applications.

Enquire Now

Product details

More Information

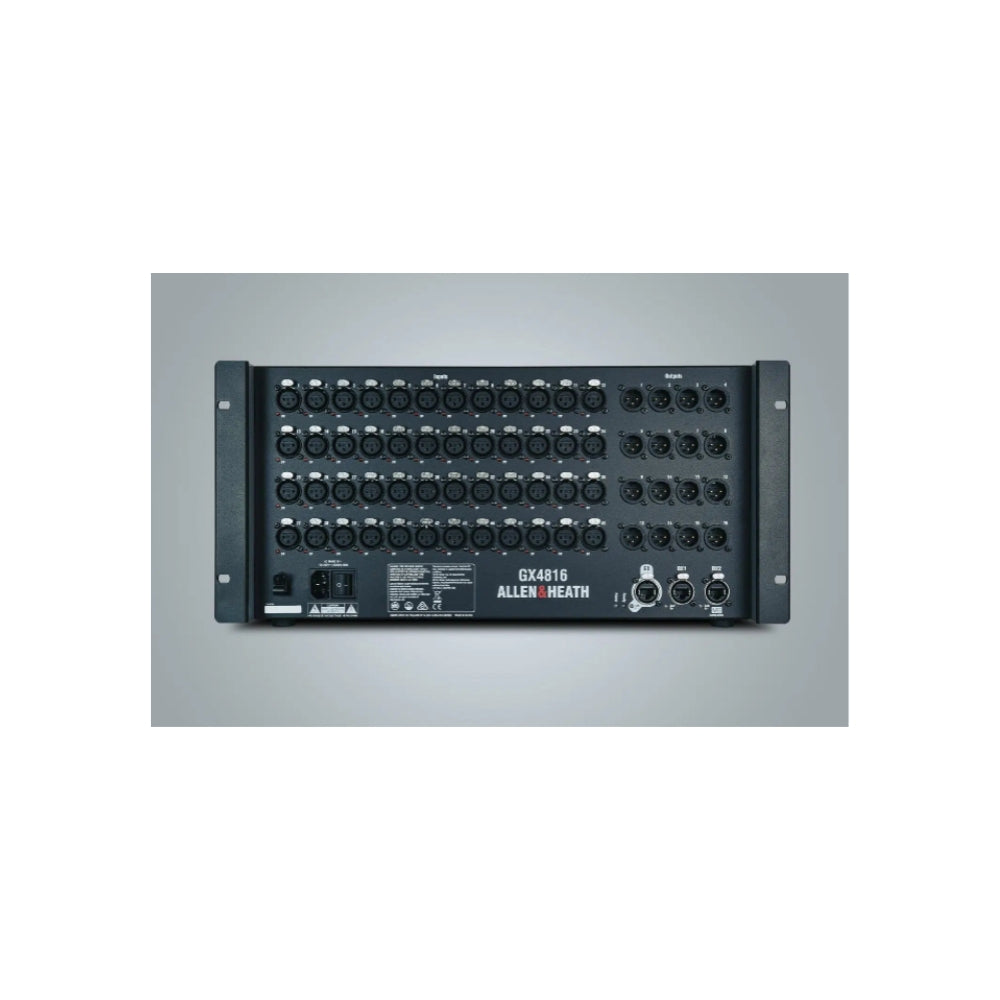

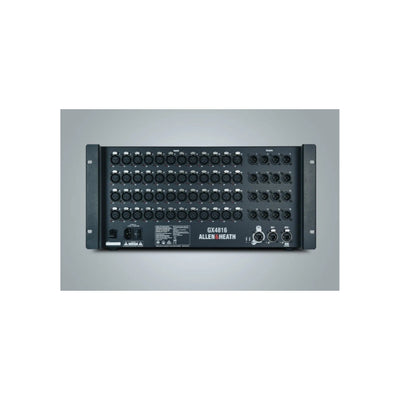

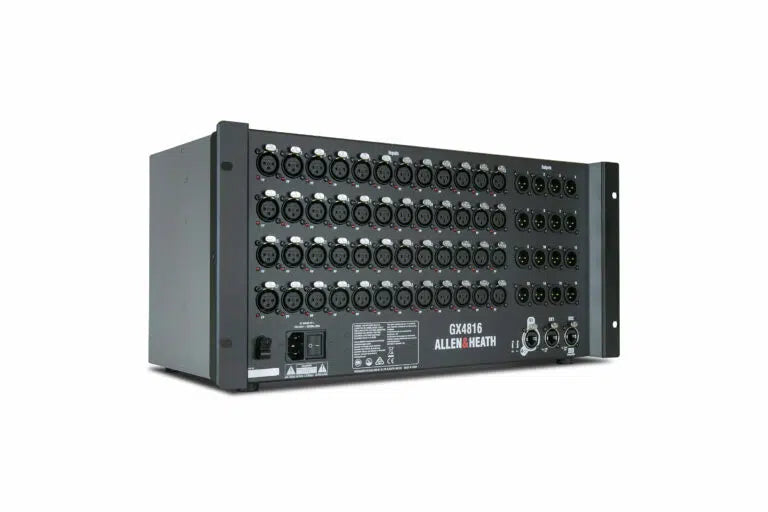

A 5U, 48-input/16-output, 96kHz digital I/O expansion for A&H dLive and SQ mixing consoles

  • Each input features a remote-controllable microphone preamp with individual phantom power LEDs
  • Two DX expansion ports let you hook up 1 DX32 or up to 2 DX168/ DX164-W expanders
  • Connect up to 2 GX4816s to an SQ system, 3 to a dLive C Class system, or 5 to a dLive S Class system
  • Plug-and-play connection via standard Cat 5e cables (EtherCon ports) with automatic IP addressing
Technical Specifications
  • Type:Portable GX Expander
  • Compatibility:A&H dLive, SQ mixing consoles
  • Channels:48 x 16
  • Inputs - Mic Preamps:48 x XLR
  • Outputs - Main:16 x XLR
  • Data I/O:1 x EtherCon (GX), 2 x EtherCon (DX)
  • Rackmountable:5U
  • Power Source:Standard IEC AC cable
  • Height:9"
  • Depth:10"
  • Width:18.9"
  • Weight:17.6 lbs.
  • Manufacturer Part Number:AH-GX-4816
