Product details

More Information

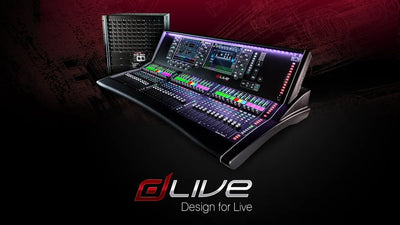

  • Control surface for dLive mixing systems

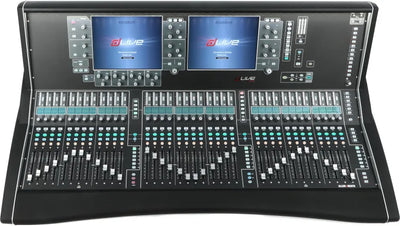

  • Dual 12" touchscreens deliver intuitive control and at-a-glance visual feedback
  • 36 faders and 3 pages of 6 rotary controllers provide superb tactile control
  • Assignable inputs, virtual scribble strips, and 26 customizable SoftKeys for ease of use
  • Dedicated multimode EQ view for easy sound shaping
  • Configurable widget areas provide you with quick access to scenes, meters, effects, and more
  • Dual redundant hot-swappable power supply capability offers amazing reliability
  • Durable high-grade metal construction
Technical Specifications
  • Type:DLive Control Surface
  • Channels:36 channel faders with 6 layers

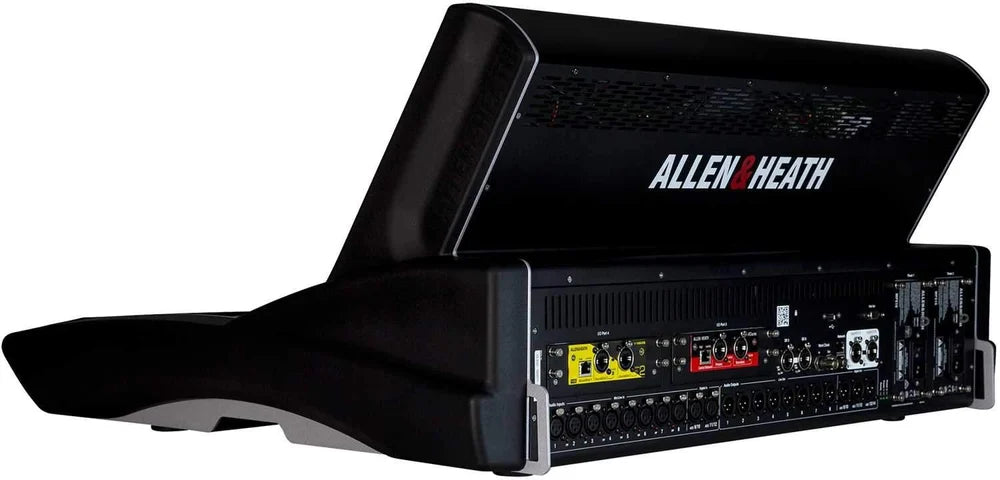

  • Inputs - Mic Preamps:8 x XLR (mic/line)
  • Phantom Power:8 Channels
  • Outputs - Main:8 x XLR
  • Inputs - Digital:2 x XLR (AES3)
  • Outputs - Digital:3 x XLR (AES3)
  • Busses/Groups:64 bus internal architecture (including all groups, aux, matrix, mains, effects)
  • Data I/O:2 x RJ45 Gigabit Ethernet, 2 x gigaACE Link Ethernet, 2 x DX link EtherCon ports
  • Headphones:2 x 1/4", 2 x 1/8"
  • USB:3 x USB Type A
  • Computer Connectivity:Ethernet, USB (2 x 2)
  • I/O Expansion Slots:2 x card slots (128x128 channels each, iLive/GLD option cards)
  • Word Clock:In, Out
  • Faders:36 x motorized faders
  • EQ Bands:4-band parametric EQ
  • Effects:16 RackFX
  • Height:16.3"
  • Depth:28.7"
  • Width:34.3"
  • Weight:62 lbs.
  • Manufacturer Part Number:AH-DLIVE-S7
