  • A compact 20-channel digital mixer that fits in your stage rack
  • Exhibits outstanding sound quality at 96kHz
  • 16 excellent-sounding microphone preamps and stereo Bluetooth input
  • Built-in 2.4GHz/5GHz Wi-Fi with auto channel

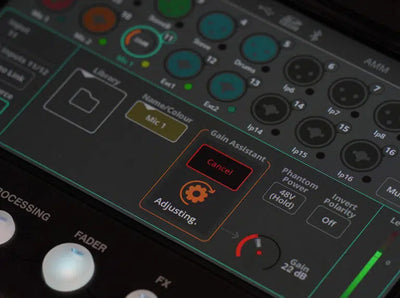

  • Preamp Gain Assistant takes all the guesswork out of setting levels
  • Feedback Assistant makes locating and neutralizing acoustic feedback frequencies a piece of cake
  • Instrument-based Quick inputs help you get a great sound quickly
  • Complete inputs allow for in-depth tweaking
  • Smart-FX engines include reverb, delay, modulation, and more
  • Remote control stagebox operation combines physical control and at-a-glance visual feedback
  • 24-in/22-out recording and playback via an onboard SD card reader
  • Built-in 24-in/22-out USB audio interface enables top-shelf digital multitrack recordings using a computer and DAW
Technical Specifications
  • Type:Digital Mixer
  • Channels:20 (16 x mono, 2 x stereo)
  • Inputs - Mic Preamps:8 x XLR-1/4" Combo, 8 x XLR
  • Phantom Power:16 Channels
  • Inputs - Other:4 x 1/4" TRS
  • Outputs - Main:2 x XLR
  • Outputs - Direct:6 x XLR (monitors)
  • Outputs - Other:1 x 1/4" (assingable alt)
  • Data I/O:1 x RJ45
  • USB:1 x Type B, 1 x Type A
  • Bluetooth:Stereo Input
  • Computer Connectivity:USB (24 x 24), Ethernet, 2.4G/5G AC Wi-Fi
  • Headphones:1 x 1/4" TRS
  • Effects:Reverbs, Delays, Modulators
  • Signal Processing:96kHz FPGA
  • Features:Feedback Assistant

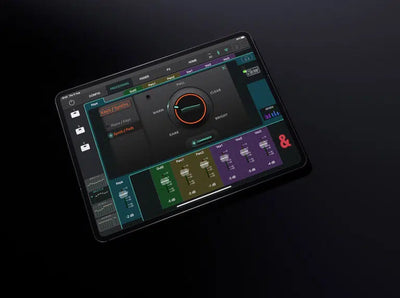

  • Software:CQ MixPad App, CQ4You App
  • Rackmountable:Yes (kit sold separately)
  • Height:5.3"
  • Depth:14.7"
  • Width:6.1"
  • Weight:5.8 lbs
  • Manufacturer Part Number:AH-CQ20B
