Powered by Allen & Heath’s revolutionary XCVI 96kHz FPGA engine, SQ-6 is built for professionals in demanding live sound, recording and streaming applications. Delivering class-leading high-resolution audio with an ultra-low <0.7ms latency, the SQ-6 gives you unrivalled power and audio fidelity.
More Information
Allen & Heath SQ-6 Digital Mixer Features:
48-input digital mixer with 96kHz FPGA processing
Best-in-class audio quality, with less than 0.7ms latency
25 faders for hands-on mixing, with 6 fader layers
Create up to 12 stereo mixes in addition to the main LR mix
SQ MixPad app (iOS/Android/macOS/Windows) for wireless mixing and offline show prep
SQ4You personal mixing app (iOS/Android) allows up to 8 performers to craft their own monitor mixes
3 stereo matrices
8 stereo FX engines with dedicated effects returns
7-inch capacitive touchscreen for navigation
SLink port for remote audio and I/O expansion
64-channel I/O port for network audio
Built-in 32 x 32 USB audio interface for multitrack recording
SQ-Drive allows for direct recording to a USB drive
Dedicated physical controls, plus 8 assignable softkeys
Automatic mic mixing makes it easy to manage large multi-mic setups
AES digital output
Rackmountable
Technical Specification
Tech Specs
Type:Digital
Channels:48
Inputs - Mic Preamps:24 x XLR
Phantom Power:24 channels, Talkback
Inputs - Line:24 x XLR (mic/line)
Inputs - Other:2 x 1/4" (ST1), 2 x 1/4" (ST2), 1 x 1/8" (ST3)
Outputs - Main:2 x 1/4" (A out, B out), 2 x XLR (L,R)
Outputs - Other:14 x XLR (stereo mixes, L/R)
Outputs - Digital:1 x XLR (AES)
Busses/Groups:36 bus
Inserts:Internal Pre EQ/Compressor
Talkback:1 x XLR
MIDI I/O:USB (control)
Data I/O:1 x EtherCon (dSnake, DX mode, gigaACE), 1 x Ethernet RJ-45 (LAN TCP/IP)
Headphones:1 x 1/4"
USB:1 x Type B, 1 x Type A
Computer Connectivity:USB (32 x 32), Ethernet
Remote:1 x 1/4" (footswitch)

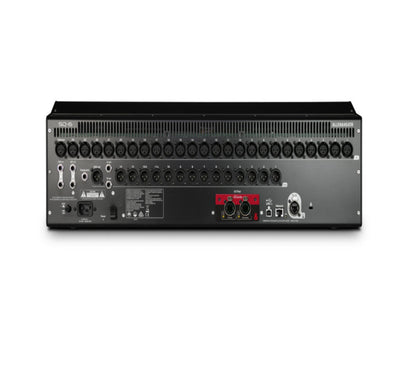

I/O Expansion Slots:1 x Option card port (Dante, Waves)
Faders:25 x 100mm motorized
A/D Resolution:24-bit/96kHz
EQ Bands:Parametric EQ, 28-band Graphic
Effects:Delay, Reverb, Chorus, Flanger, Phaser (8 x RackFX engine)
Signal Processing:Dynamics
DAW Control:MIDI DAW control via USB
Screen:7" color touch screen
Storage:USB Type A (16 x 16)
Software:Wireless Remote Mixing app iPad/Android (network router not included)
