AKG WMS40
AKG WMS40

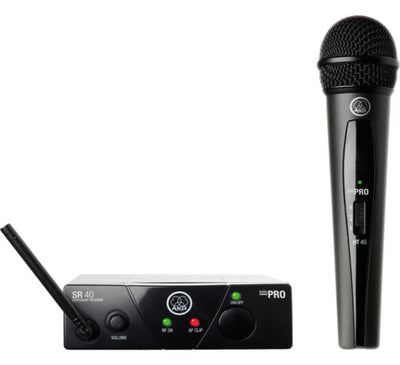

The band B WMS40 Mini Single Vocal Set Wireless Microphone System from AKG features a single-channel SR40 Mini receiver and an HT40 Mini handheld transmitter, and is a true plug and play wireless solution. It provides clear audio sound and can be used to capture audio in several environments for applications such as live stage, rehearsals, conferences, and more.
The included HT40 handheld transmitter features a dynamic cardioid capsule for maximum gain before feedback. The SR40 receiver has a balanced 1/4" output connector, which connects to your mixer or amplifier. The WMS40 is a fixed frequency system and has an extremely long battery life of 30 hours on a single AA battery, and saves money in day-to-day operation. A universal power supply is also included.
More Information
More Information
Technical Specification
Technical Specification
| System | |
| Wireless Technology | Analog |
| Included Transmitters | 1 x Handheld |
| Diversity | Non-Diversity |
| RF Frequency Band | 661.1 MHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 100' / 30.5 m |
| Max Transmitters per Band | 1 |
| Built-In Recorder | No |
| Timecode Support | No |
| Mobile App Compatible | No *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| Encryption | None |
| Receiver | |
| Receiver Type | Tabletop / Rackmount |
| Mounting Options | Rackmount (with Optional Hardware) |
| Rackmount Size | 1 RU (1/2 Rack) |
| Antenna | 1 x External (Front-Mount) |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x 1/4" TRS Balanced Output |
| Phantom Power Protection | None |
| Network I/O | None |
| USB/Lightning Connectivity | None |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 100 to 240 VDC at 300 mA (Included) |
| DC Input Power | 12 VDC |
| Display & Indicators | 3 x LED (AF Level, Clip, Power, Sync) |
| Transmitter | |
| Transmitter Type | Handheld |
| RF Output Power | Not Specified by Manufacturer |
| Audio I/O | None |
| Pad | None |
| Muting | Mute Switch |
| Auto-Level Control | No |
| Signal Processing | None |
| Antenna | 1 x Internal |
| Power Requirements | Battery |
| Battery Type | 1 x AA |
| Approx. Battery Life | 30 Hours |
| USB/Lightning I/O | None |
| Display & Indicators | 1 x LED (Battery Status, Sync) |
| Microphone | |
| Microphone Type | Handheld |
| Color | Black |
| Sound Field | Mono |
| Capsule | Dynamic |
| Polar Pattern | Cardioid |
| Operating Voltage | None |
