Product details

More Information

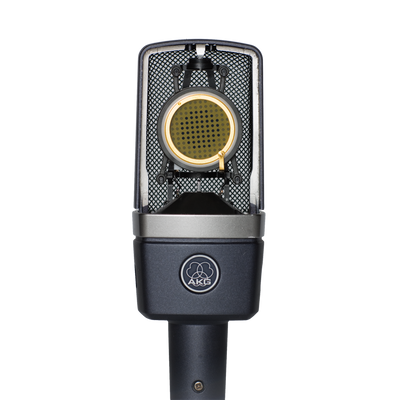

  • Capsule: 1" large diaphragm condenser
  • Sensitivity: 20 mV/Pa (-34 dBV)
  • Frequency range: 20 to 20,000Hz
  • Equivalent noise level: 13dB-A (IEC 60268-4)
  • Polar pattern: Cardioid
  • Max. SPL: 136/156dB SPL (0/20dB Pad)
  • Dynamic range: 123/143dB-A (0/20dB Pad)
  • Low-cut filter: 160Hz, 6dB/Octave, switchable
  • Attenuation pad: 20dB, switchable
  • Patents: AT 395.225, DE 4.103.784, JP 2.815.488
  • Dimensions: 160 x 55 mm (6.3 x 2.2 in.)
  • Net/shipping weight: 280/1450 g (0.62 / 3.22 lbs)
  • Included accessories: H 85 Shockmount, W 214 Windscreen, Metal Carrying Case
  • Requires +12V to +52V phantom power
Technical Specifications
  • Microphone Type:Condenser
  • Polar Pattern:Cardioid
  • Diaphragm Size:1" (25.4mm)
  • Frequency Response:20Hz-20kHz
  • Max SPL:136dB (156dB w/Pad)
  • Output Impedance:200 ohms
  • Signal to Noise Ratio:81dB (A weighted)
  • Self Noise:13dB (A weighted)
  • Low Cut Filter:160Hz (-6dB/octave)
  • Pads:-20dB
  • Color:Matte Grey Blue
  • Connector:XLR
  • Weight:0.62 lbs.
  • Included Accessories:H85 Shockmount, Metal Carry Case
