18 SOUND 18 LW 2500

18 SOUND 18 LW 2500

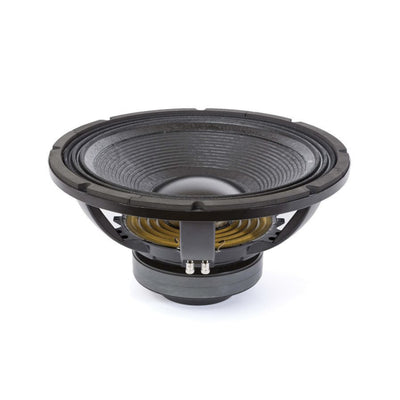

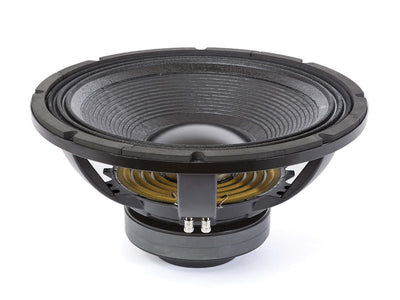

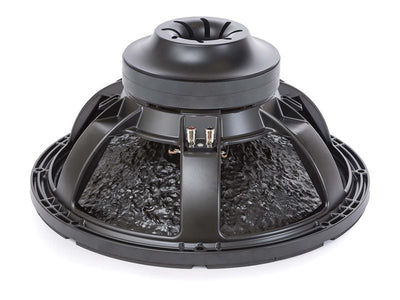

The 18LW2500 is a 18" (466 mm) extended low frequency loudspeaker, designed for use in vented or bandpass enclosure.

More Information

The 18LW2500 is a 18" (466 mm) extended low frequency loudspeaker, designed for use in vented or bandpass enclosure. The loudspeaker is designed to withstand high power levels without damage while providing clean and undistorted LF reproduction at a very high SPL. For optimum results we recommend amplifiers able to deliver 3400 Watt program power. The 18LW2500 features a unique motor featuring a high grade ferrit magnet assembly in a structure optimized for thermal and magnetic efficiency. 18LW2500 features include a large displacement suspension system which, in conjunction with a composite reinforced, straight ribbed cone and the Eighteen Sound proprietary Double Silicon Spider (DSS) technology, allows an ultra-linear piston action and provides full mechanical control across the entire working range. The 100mm (4 in) state-of-the-art voice-coil utilizing Interleaved Sandwich Voice coil (ISV) technology, provides high levels of thermal stability and durability. The ISV technology achieves a balanced linear motor unit exerting an exceptionally high force factor.

Technical Specification

Size: 18"

Power Rating: 1600W AES

Frequency Response: 30-1kHz

Sensitivity: 95db

Impedance: 8 ohms

Voice Coil: 4"

Resonant Frequency: 34 Hz

Weight: 40 lbs.
