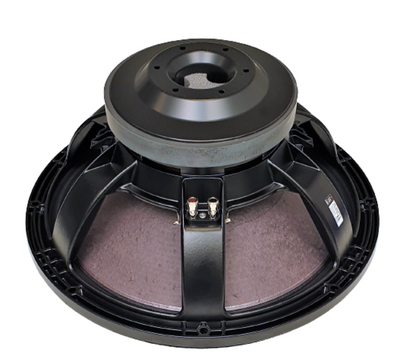

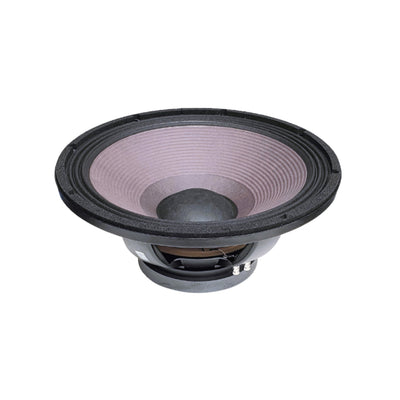

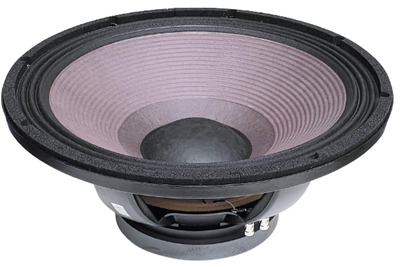

18 Sound 18 LW 2420

Transducer design features include a large displacement suspension system which, in conjunction with a fiberglass reinforced, straight ribbed cone and the Eighteen Sound proprietary Triple Silicon Spider (TSS) technology, allows an ultra-linear piston action and provides full mechanical control across the entire working range.The 100 mm (4 in) inside-outside copper voice coil based on Interleaved Sandwich Voice coil (ISV) technology provides high levels of thermal stability and durability.In order to furtherly increase power handling and reduce power compression figure, 18LW2420 uses the same voice coil ventilation technology developed for our flagship 9000 neodymium transducer series. A special low density material air diffractor has been placed into the backplate acting as a cooling system, increasing power handling capability and lowering the power compression figure. As a final result Eighteen Sound engineers obtained almost 1 dB reduction in full power power compression value if compared to 18LW1400, and an increased program power handling value of 2400 Watt.The low distortion and unmatched sound quality of the 18LW2420 has been significantly improved by Double Demodulating Rings (DDR) embedded in the pole piece of the magnetic structure. These have been designed to reduce the intermodulation and harmonic distortion while improving the transient response. A 10% reduction in weight has been obtained optimizing the magnetic structure through advanced FEA CAD simulation tools.The 18LW2420 is able to perform properly under inclement weather conditions: the exclusive cone treatment improves pulp strength and gives water repellent properties to both sides of the cone. In addition, the special treatment applied to top and back plates of the magnetic structure is far more resistant to the corrosive effects of salts and oxidization.

Size: 18"
Power Rating: 1300W AES
Frequency Response: 29-2.5kHz
Sensitivity: 97db
Impedance: 8 ohms
Voice Coil: 4"
Resonant Frequency: 33 Hz
Weight: 31 lbs.
