P AUDIO C15- 600EL
P AUDIO C15- 600EL

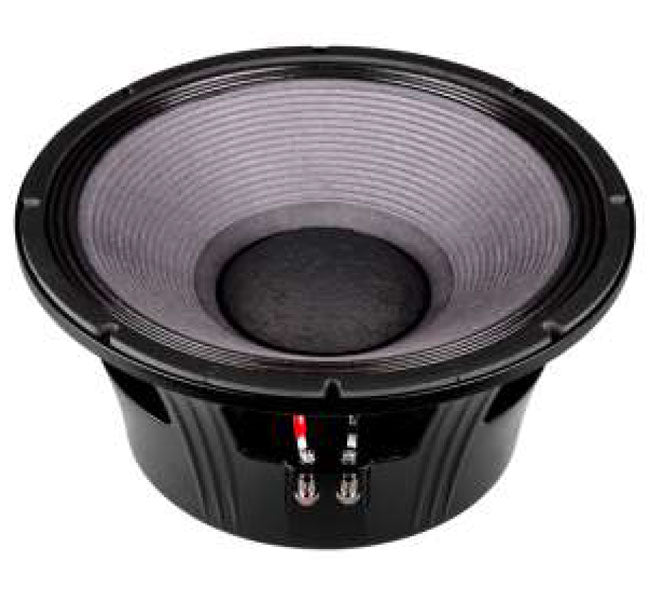

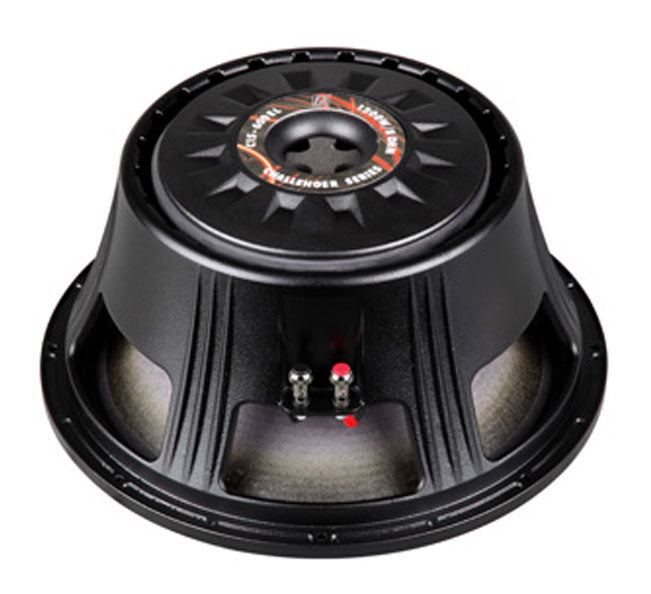

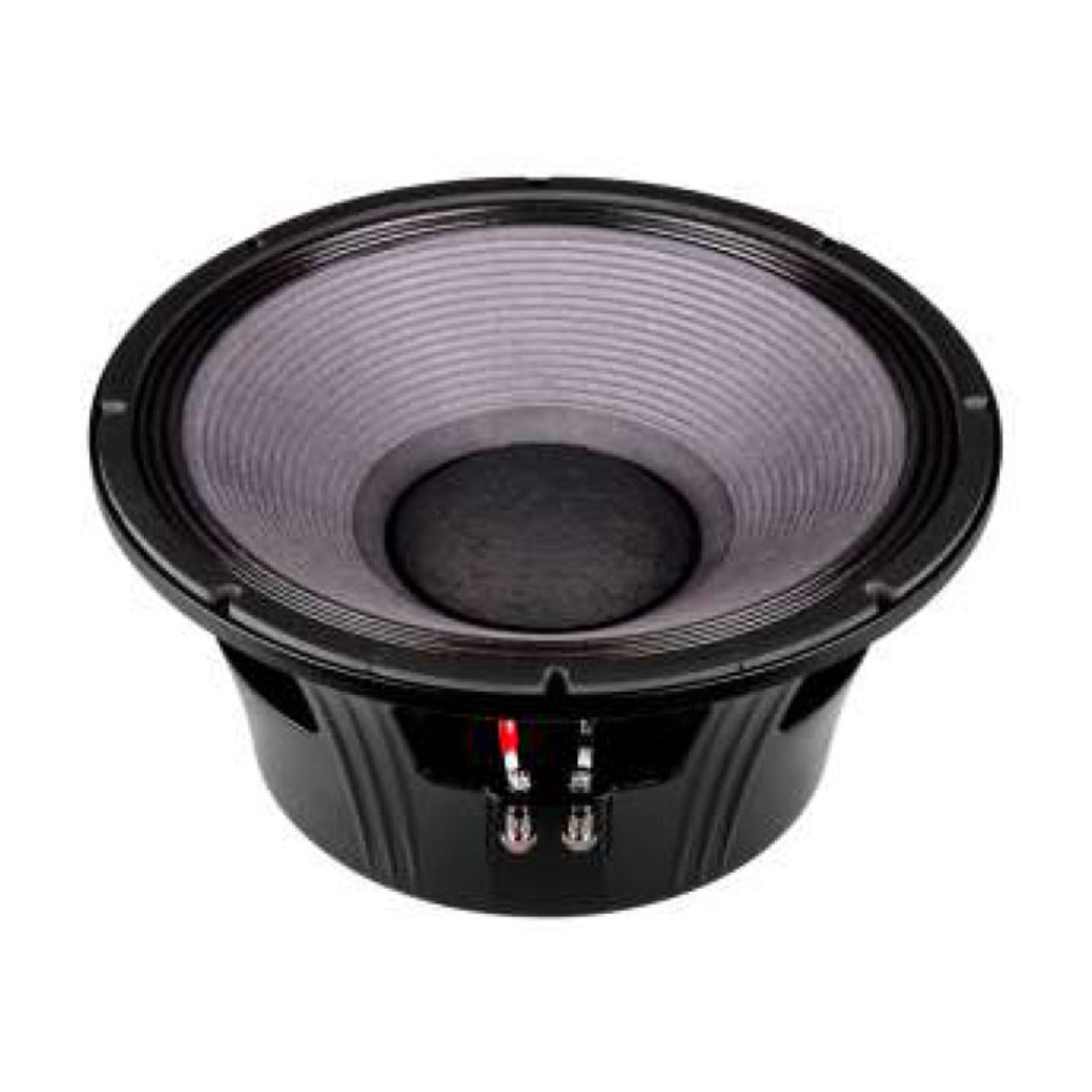

The P.Audio C15-600EL is a high output wide bandwidth transducer. The C15-600EL is an upgraded design that features many of P.Audio's new technologies and performance upgrades. The 15 inch (381mm) diameter piston will produce extremely high sound pressure levels at both low and mid band frequencies and is ideal for high level response in both live sound and recorded music venues. The transducer uses high energy ferrite magnetics to achieve a very high acoustic output to weight ratio. The C15-600EL has been optimized for use in two way or three way sound reinforcement systems and has a rated operating range of 55Hz to 2000Hz.
More Information
More Information
Technical Specification
Technical Specification
| Nominal diameter | 381 mm/15 in |
| Power rating | 1200 W(AES) |
| Nominal impedance | 8Ω |
| Sensitivity | 96 dB |
| Frequency range | 55-2000 Hz |
| Chassis type | Cast aluminum |
| Magnet type | Ferrite |
| Magnet weight | 3.17 kg/111.8 oz |
| Voice coil diameter | 99.3 mm/4 in |
| Coil material | CCA-R |
| Former material | Glass fiber |
| Cone material | Paper |
| Surround material | Cloth |
| Suspension | Double |
| X-max | 5.25 mm/0.21 in |
| Gap depth | 15 mm/0.59 in |
| Voice coil winding width | 25.5 mm/1 in |
| Packing dimension WxDxH (mm) | 430 x 430 x 235 |
| Net weight | 13.2 kg/29.1 lb |
| Shipping weight | 14.2 kg/31.3 lb |
