SENNHEISER XSW 1-ME3

SENNHEISER XSW 1-ME3

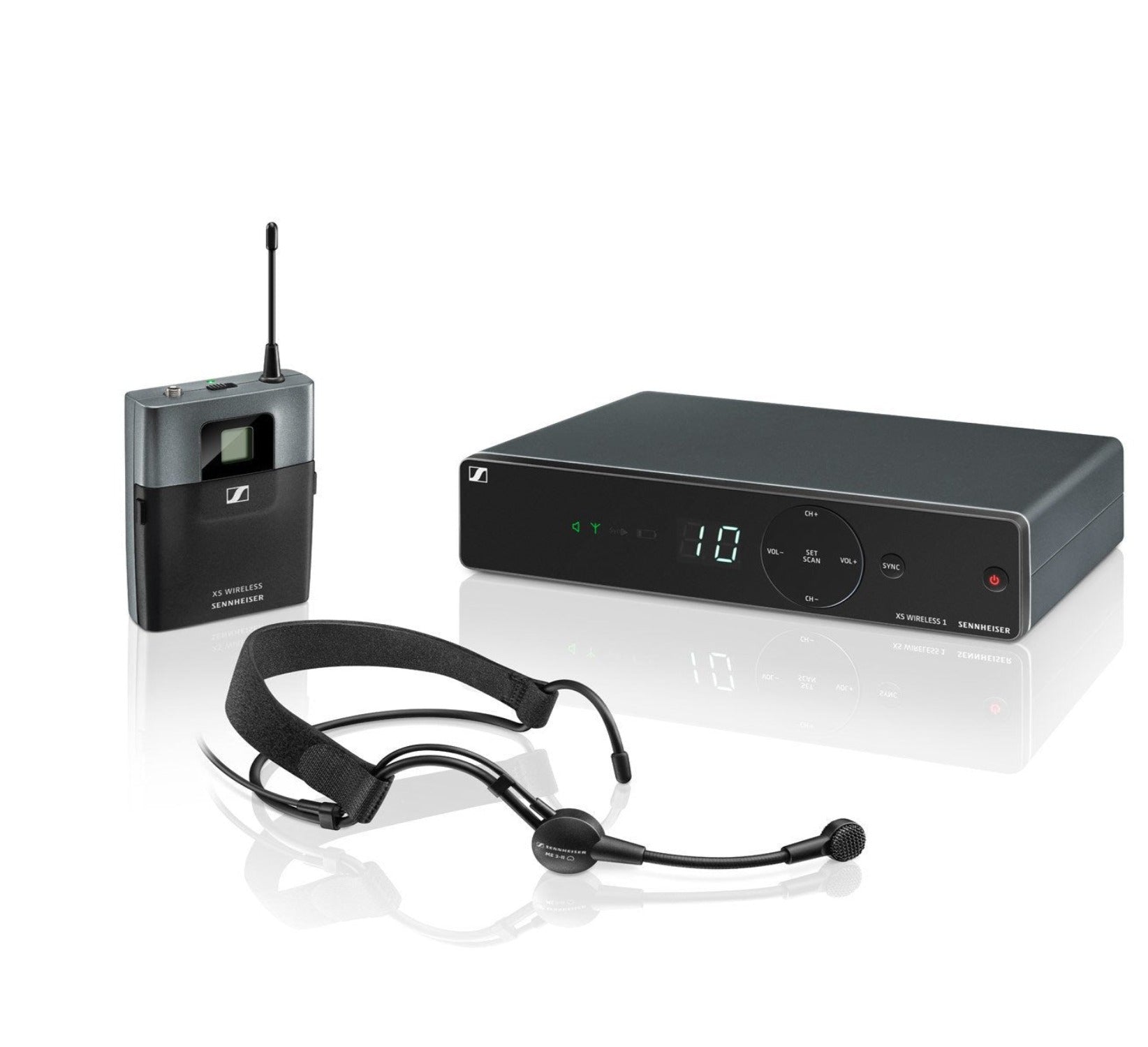

Hands-free performance. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 HEADMIC SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound that involves dancing and singing all at the same time. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a compact bodypack transmitter and a lightweight headset microphone.

More Information

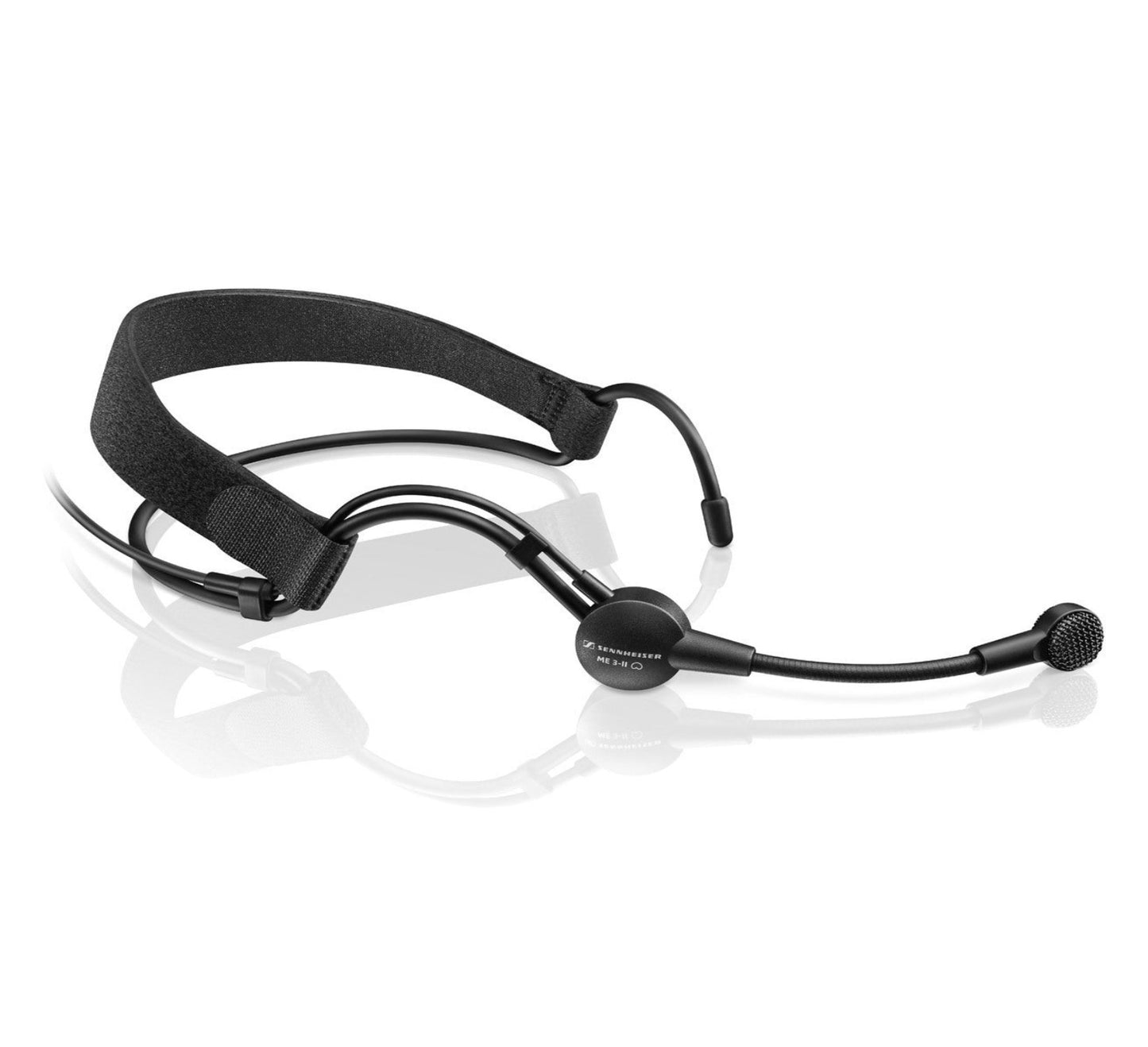

  • Lightweight headmic and compact bodypack transmitter
  • Antenna-switching diversity reception
  • Integrated antennas
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Selectable UHF frequencies within a large bandwidth
  • Up to 10 compatible channels

Technical Specification

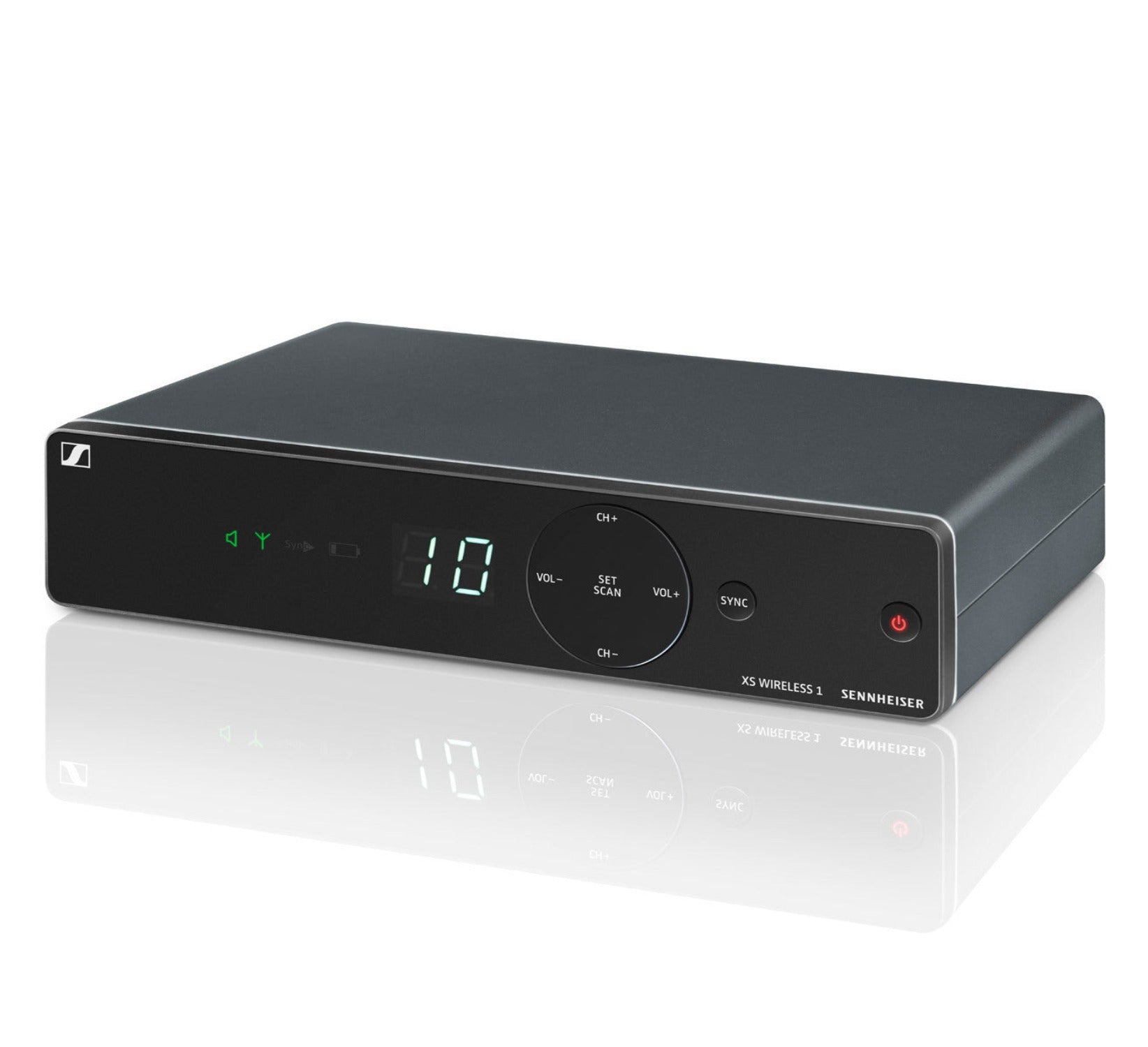

Receivers
  • Dimensionsapprox. 200 x 42 x 127 mm
  • Weightapprox. 340g
  • Power supply12 V DC nom. / 300 mA
  • AF frequency response50 to 16,000 Hz (–3 dB)
Transmitter
  • Dimensionsapprox. 71 x 96 x 28 mm
  • Weightapprox. 95g
  • Operating timeApprox. 10 hrs
  • Power supply2 AA size batteries, 1.5 V
  • Adjustment Range Transmitter0 to -30 dB, adjustable in 10 dB steps
  • MicrophoneCondenser
  • THD, total harmonic distortion≤ 0.9%
  • Pick-up patternCardioid
  • Signal-to-noise ratio≥ 103 dBA
  • RF output power10 mW
  • Switching bandwidthup to 24 MHz
  • ModulationWideband FM

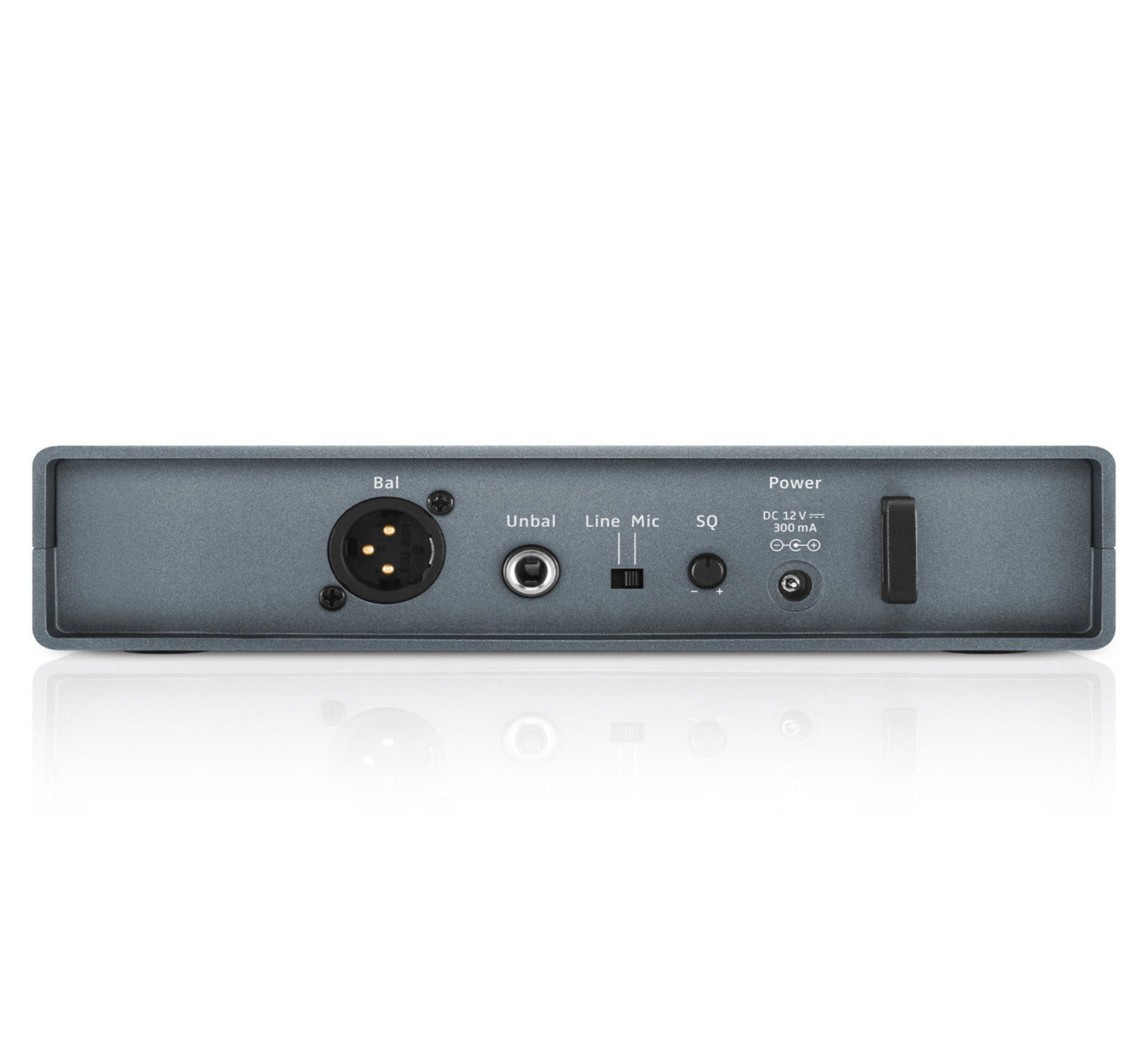

  • Output voltage1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
  • HousingRugged ABS housing
  • Frequency8 frequency banks, each with up to 10 factory-preset channels
  • Frequency rangeA: 548-572 MHz, GB: 606-630 MHzB: 614-638 MHzC: 766-790 MHzD: 794-806 MHzE: 821-832 MHz, 863-865 MHzK: 925-937.5 MHz
  • Sensitivity< 3 μV at 52 dB(A)rms S/N
  • SPL for peak deviation150 dB
  • Squelchadjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
  • Synchronization2.4 GHz, Low Power OQPSK (only active during synchronization)
  • Input sensitivity1.5 mV / Pa
  • Audio adjustment range45 dB, adjustable in 5-dB steps
  • Line / Mic level20 dB, switchable
  • Temperature RangeOperation: 0°C to +40°C, storage: –20°C to +70°C
  • Receiver PrincipleDouble superheterodyne
  • Diversity principleAntenna switching diversity via internal antennas
