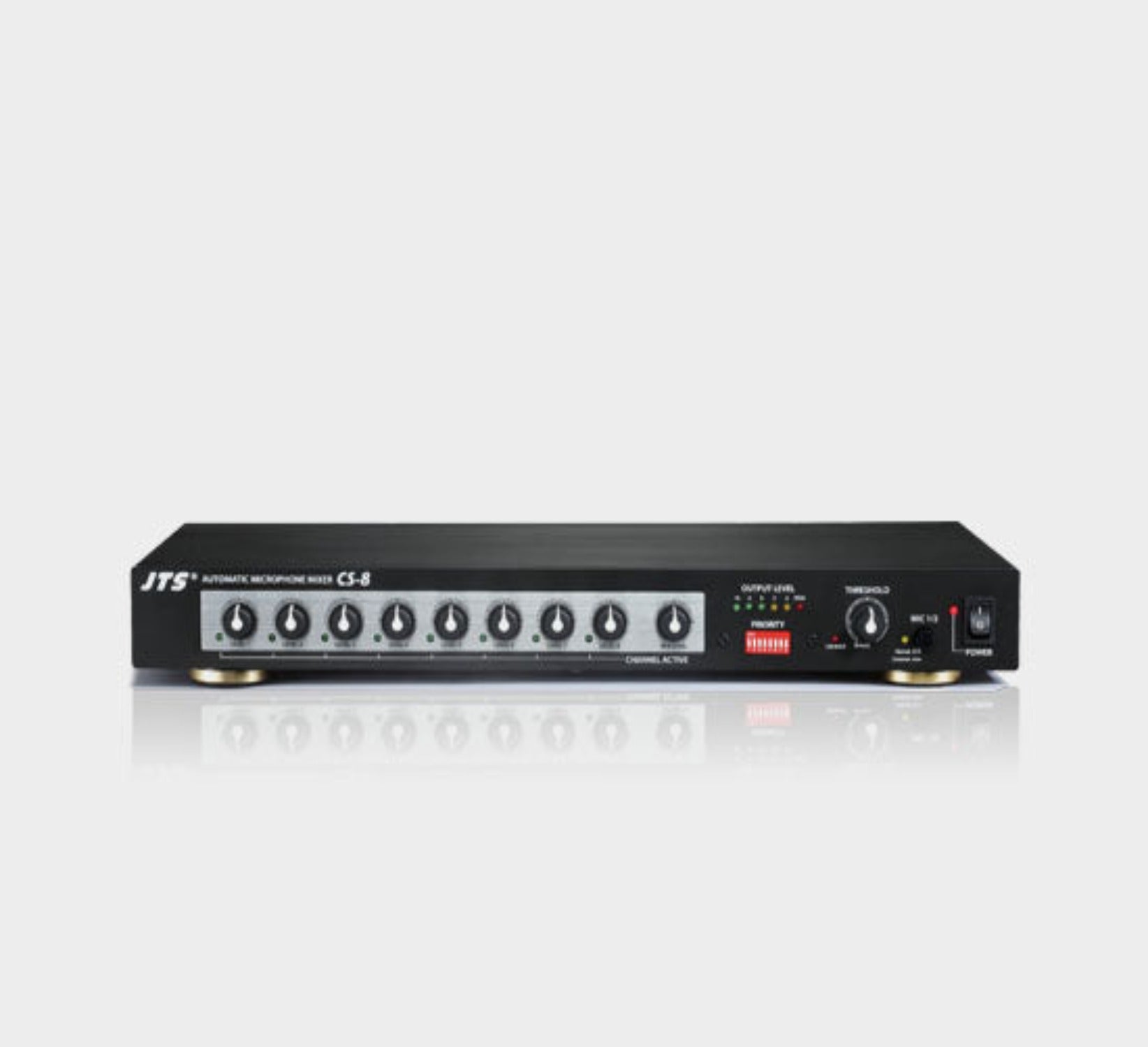

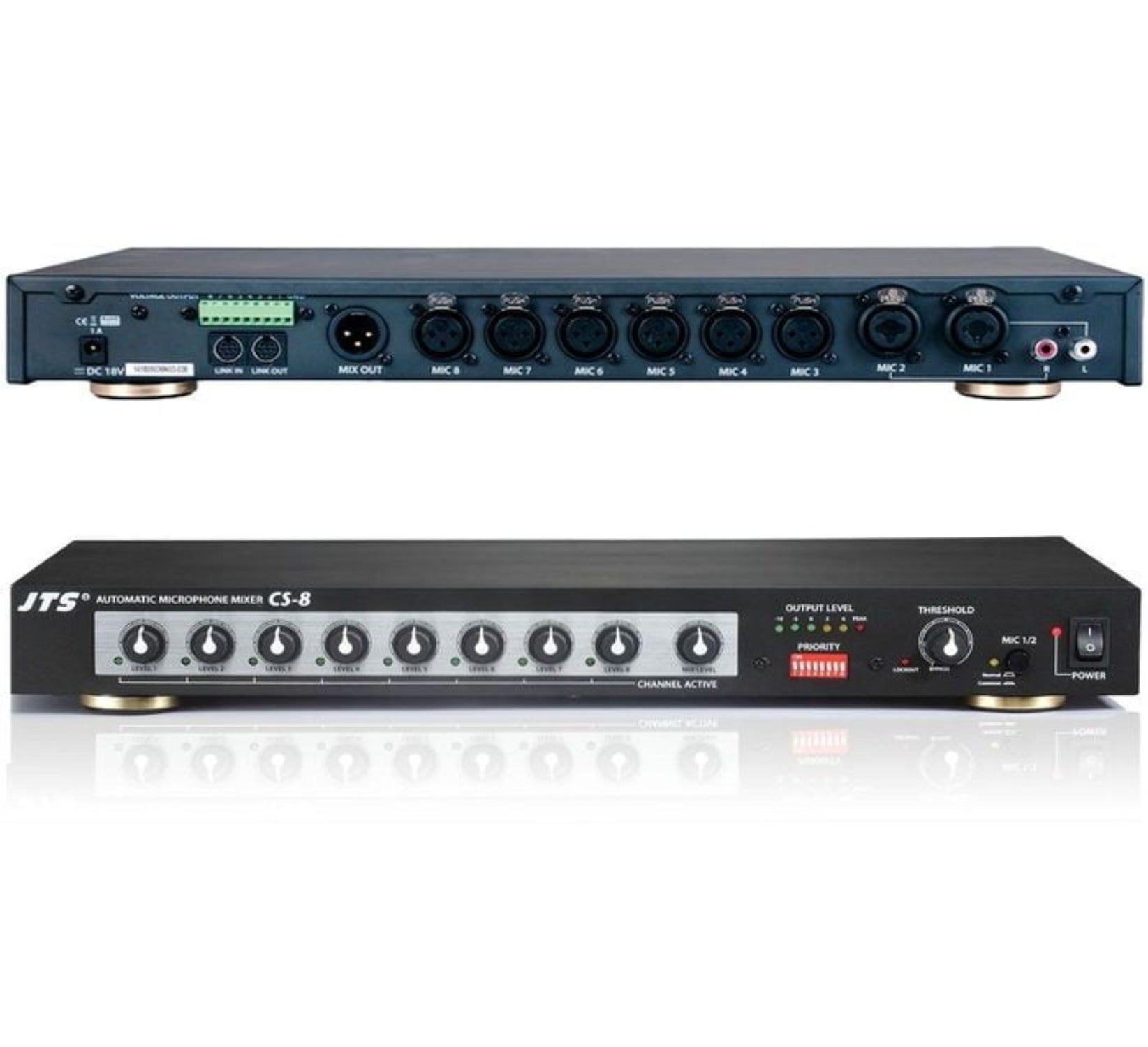

JTS CS-8

The CS series microphone automatic mixers provide great convenience to sound reinforcement installation with any size and any combination. The outstanding performance enables effective managing of multi-microphone installations including corporate boardrooms, conference rooms, government builds, houses of worship, classrooms.

More Information

Daisy-chain with unlimited number of the mixer
Three operation modes: one-channel-at-a time, all active or override
Switchable inputs accept microphones or line level devices
Switchable output levels between mic. and line level
Individual gain control and phantom power for each channel
Last In stays on for continuous ambience sound
Control voltage provided to trigger external device such as speaker switching and camera switching

Technical Specification

CS-8
Input
Type	XLR
Mic	4.7KΩ
Line	20KΩ
Output
Type	XLR
Mic	300Ω
Line	200Ω
MAX Output Level	>17dB
MAX Gain	>70dB
Frequency Respond	35~20,000 Hz
THD%	<0.06%
Signal-to-noise radio	>70 dB
Input Attenuation	-50dB
Phantom Power	+48V
Mic In Attenuation	-10dB / -20dB
Mic Attenuation	-10dB / -15dB / -20dB
Output Attenuation	-50dB
Voltage Output	+4VDC ±0.3V
Power Supply	18VDC, 1A
Power Consumption	13.5W
Fuse	T0.5AE 250V (Slow-Blow)
Weight	2.25 kg
Dimensions	420mm(W)44mm(H)198.5mm(D)
