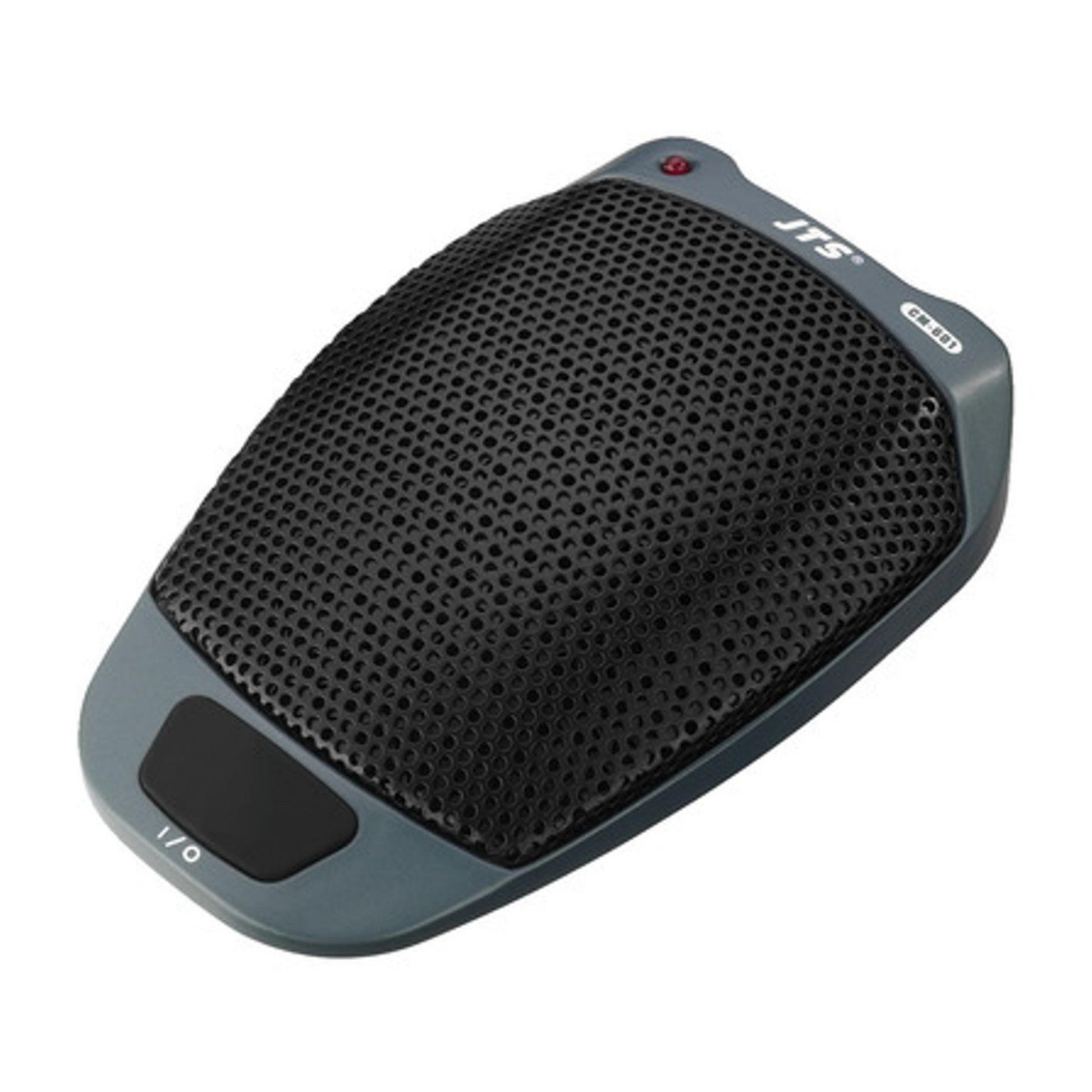

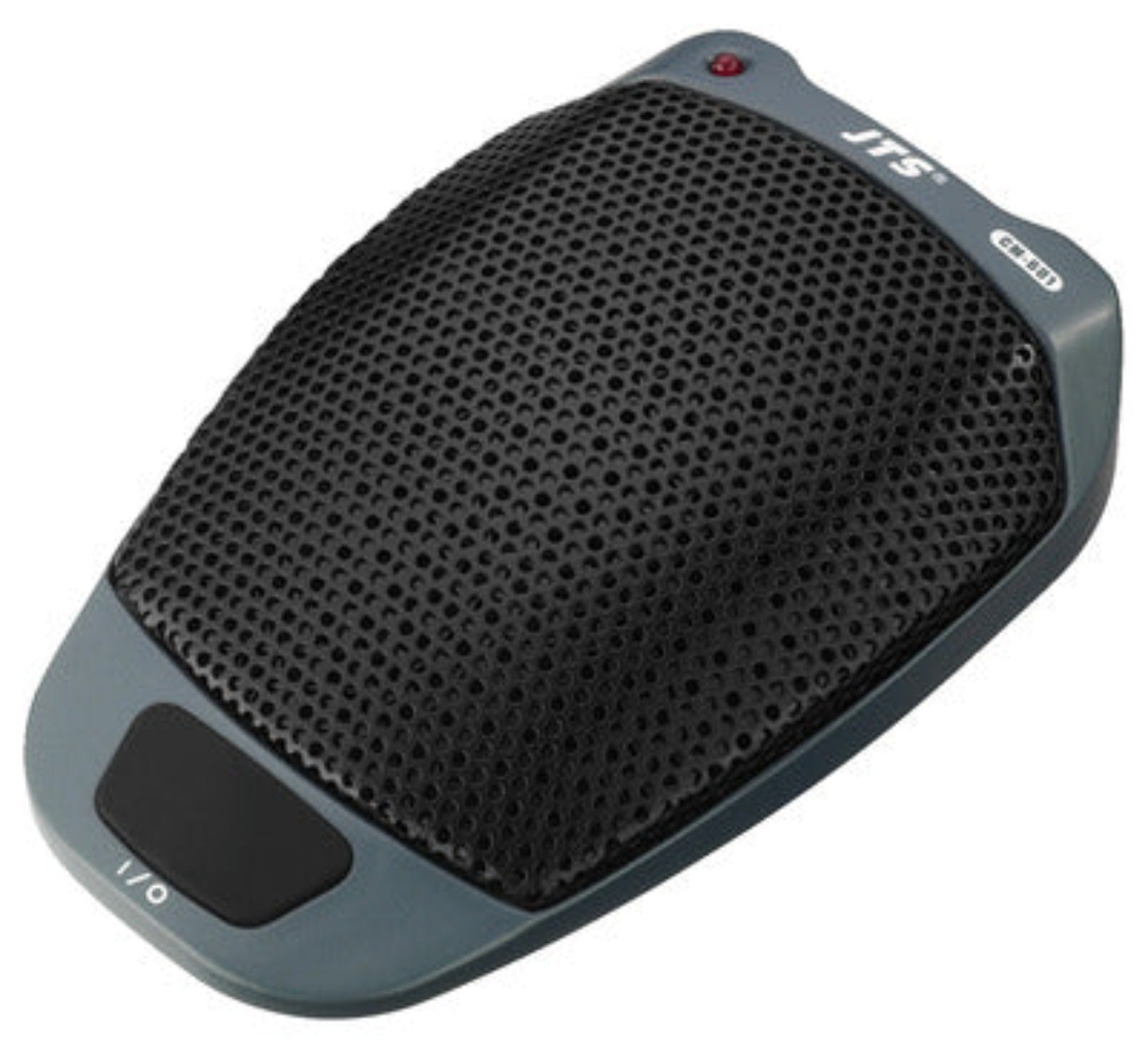

JTS CM-601

Name: JTS CM-601
Brand: SOUND4U
Availability: InStock

The CM-601 features red LED indicator, 3 step Low-Cut switch and back electric cardioid condenser capsule. The membrane ON/OFF switch can be programmed to PUSH ON/PUSH OFF, PUSH TO TALK and PUSH TO MUTE three modes. The precisely calculated circuit plus tailored capsule response ensure transparent sound quality. Internal shock mount minimizes mechanical noise.

More Information

Electret boundary microphone

For theatrical performances, discussions, conferences and in churches
A direct alignment to the sound source is not essential due to the special characteristics of a boundary microphone
Dual low cut filter (80 Hz/120 Hz)
Configurable push-button (PTT, PTM or switching function)
Standby LED
Robust and shock-absorbing body
Elastic cartridge suspension for preventing structure-borne noise and impact sound
With 8 m cable mini XLR jack to XLR plug
Connection via 3-pole mini XLR plug, unbal.
With preformed outline at the bottom for possible wall mounting

Technical Specification

Type Electret Condenser
Frequency Response 30~12,000 Hz
Sensitivity (at 1,000Hz) -53±3 dB* (2.23mV) 0dB=1V /μbar
Directional Pattern Half-Cardioid
Impedance 100Ω
Max. SPL for 1% THD 125 dB
Signal-To-Noise Ratio 67dB
Power Supply 12-52 VDC phantom power
Current Consumption ≤6mA
Output Connector 3P Mini XLR-M type (power module)
Low Frequency Roll-off 80Hz , 120Hz
Push control: on/off
Function selection:push on/off, momentaryon/off
Low cut : low frequency roll-off
