JBL ICS 05M
JBL ICS 05M

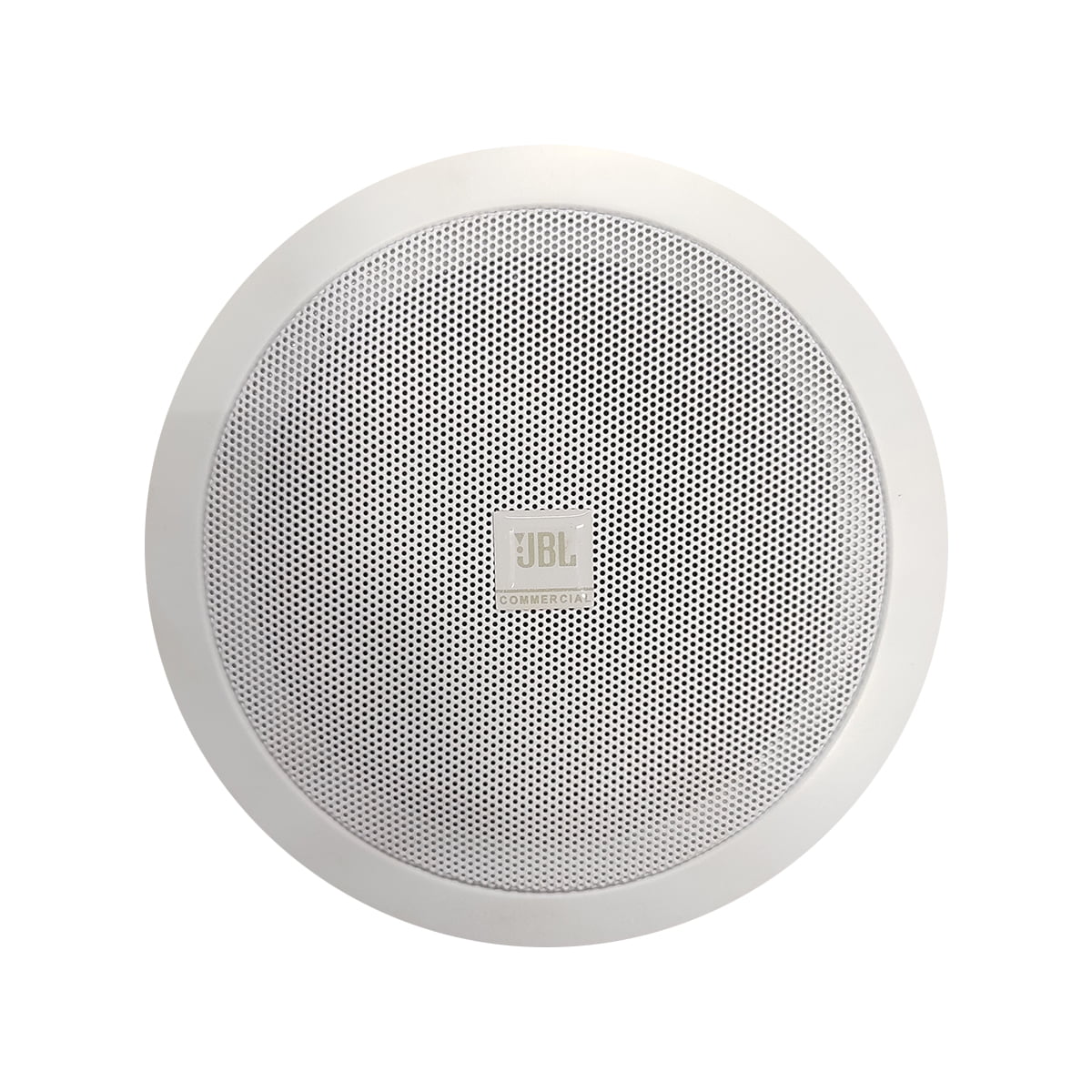

The JBL ICS05M Full-range 5.25-inch Ceiling Speaker. The JBL ICS05M is a full-range, cost-effective 5.25″ ceiling speaker. JBL ICS05M offers excellent performance in an easy-to-install package. The High sensitivity driver delivers maximum sound level even at low tap settings. The ICS05M is a 5.25″ speaker with a contemporary grill design & great bass extension.
More Information
More Information
Technical Specification
Technical Specification
| JBL ICS05 Specifications: | |
| Brand | JBL |
| Model | ICS05 |
| Component | 133mm (5.25 in) Full Range |
| Effective Frequency Range (-10dB) | 85Hz-20KHz |
| Sound Pressure Level at rated Power/1W (@1KHz, 1m) | 89dB |
| Nominal Driver Impedance | 8 ohms |
| Driver Maximum Power Capacity | 8W |
| Transformer Taps | (100V: 6W, 3W, 1.5W), (70V: 3W, 1.5W, 0.8W) |
| Ambient Temperature Range | -35° to 70°C |
| Connector | 4 Pin Screw type |
| Colour | White |
| Net Weight | 570 g (Per PCS) |
| Cut-out Dimension | 145mm Diameter |
| Outside Dimensions (Diameter x Depth) | 172.5mm Diameter x 67 7mm Depth |
| Shipping Weight and Dimensions | 2.5KG, W 32cm, D 20cm, H 20cm |
