BOSCH LBD8353
BOSCH LBD8353

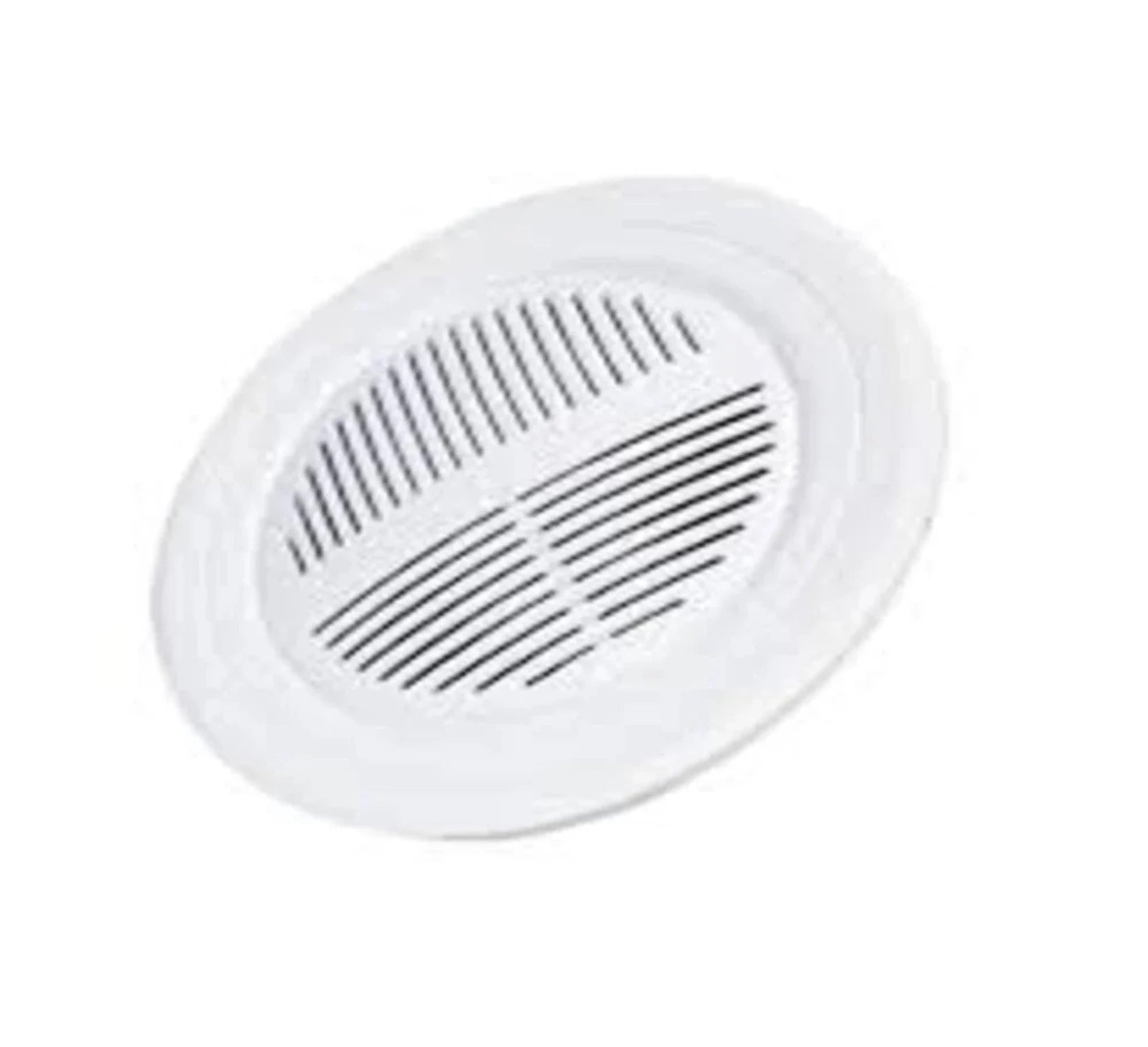

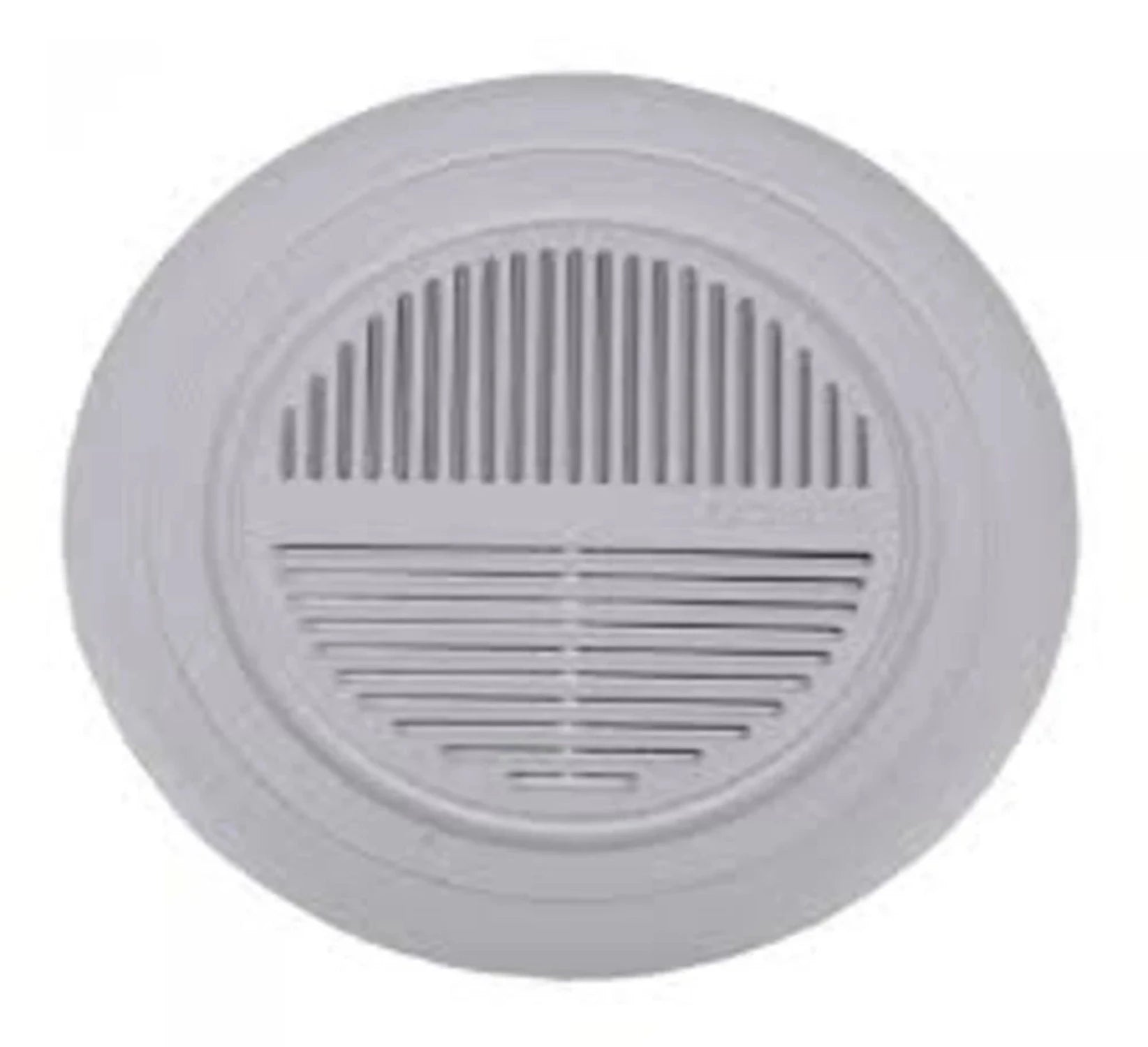

The LBD8353/10 is a general purpose speaker costeffective6 W ceiling loudspeaker, suitable for 100 Vconnection with power tapping of: 6, 3 and 1.5 Watt. Itis a full range loudspeaker for speech and musicreproduction in shops, department stores, schools,offices, sports halls, hotels and restaurants.
More Information
More Information
Technical Specification
Technical Specification
| Brand | Bosch |
| Power (Watts) | 6w, |
| Color | White |
| Model Name/Number | 6W Ceiling Speaker LBD8353/10, |
| Weight | 700 g |
| Diameter | 210 mm |
| Sound Pressure level at 6 W / 1 W ( 1 KHz at 1m) | 98.1 dB / 89.1 dB (SPL) |
| Effective frequency range (-10 dB) | 100 Hz - 8 KHz |
| Opening Angle at 1 KHz / 4 KHz (-6 dB) | 180 Degree / 45 Degree |
| Rated impedance | 1667 ohm |
| Maximum depth | 68 mm |
