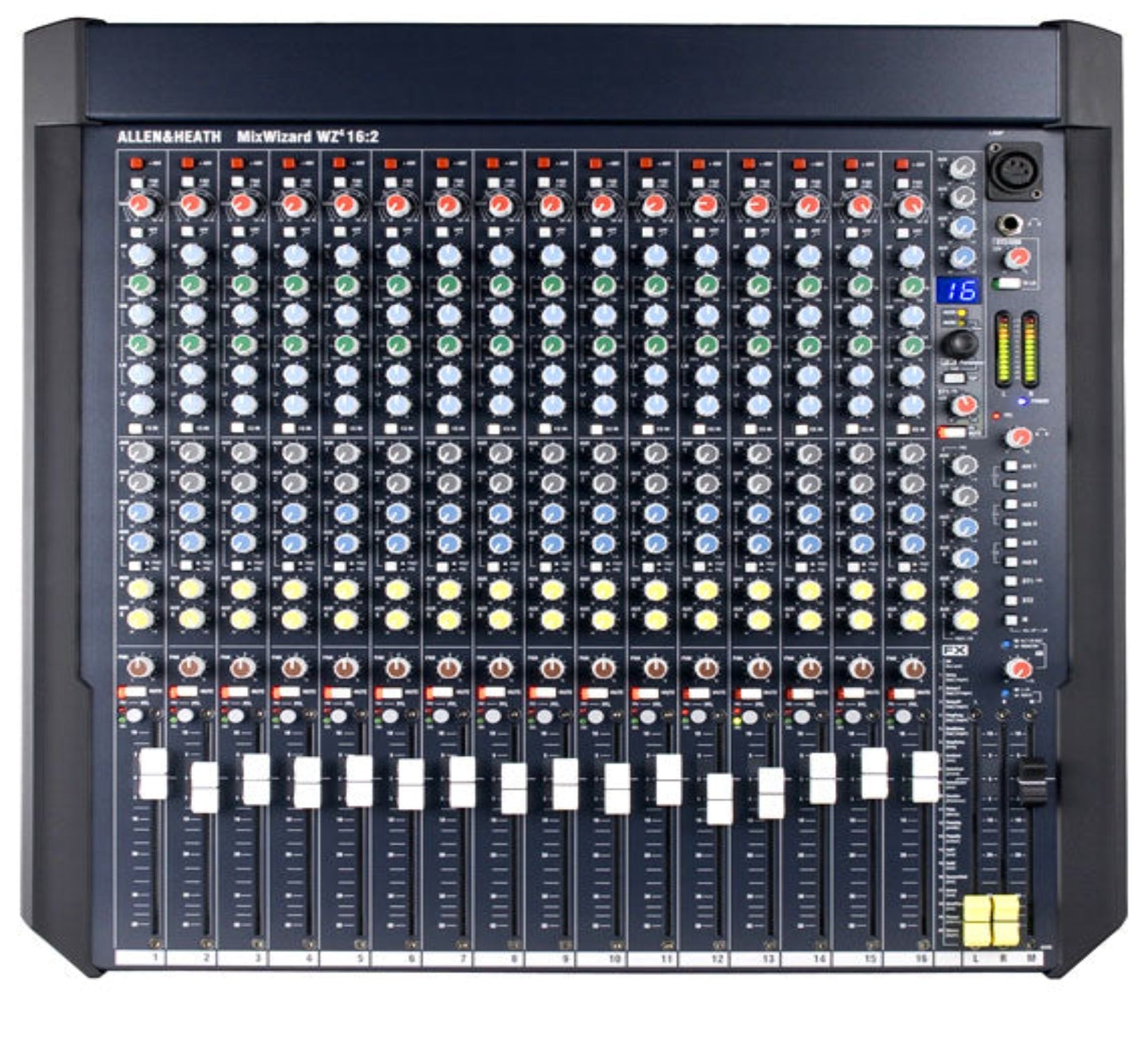

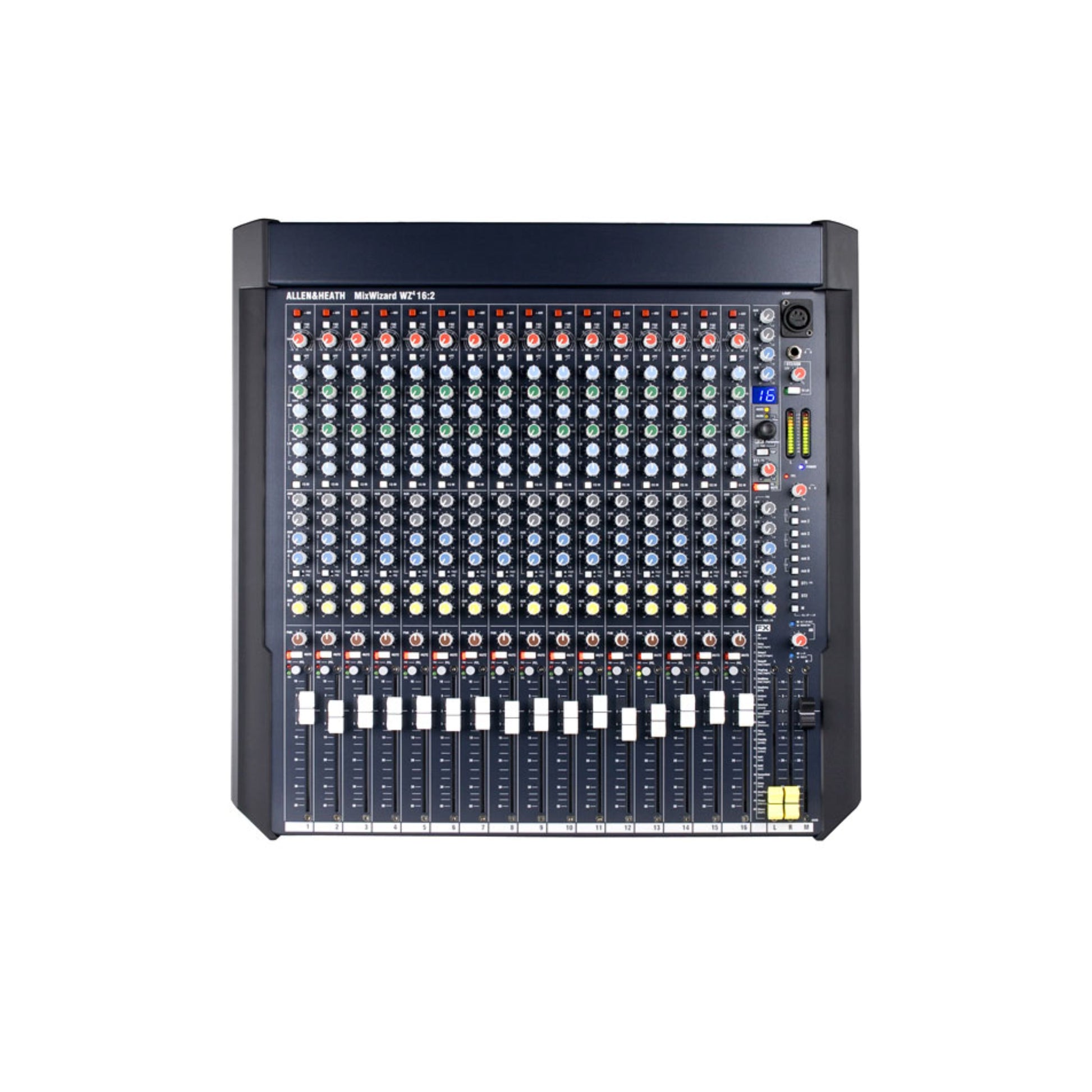

ALLEN AND HEATH MIXWIZARD WZ4 16:2

ALLEN AND HEATH MIXWIZARD WZ4 16:2

With its simplicity, quality and plentiful inputs, WZ4 16:2 will be loved by seasoned engineers and novice operators alike. This is a true all-purpose mixer, providing a full 16 high specification mic/line inputs in a compact, straightforward format that has made it a consistent best seller.

WZ4 16:2 features our acclaimed 4 band EQ with 2 sweepable mids, high quality 100mm faders, 6 aux sends, 12 segment bargraph metering and our unique QCC connector system for easy desktop, rack or flightcase mounting.

Additions for this 4th generation MixWizard console include two newly designed digital FX engines with 20 studio quality FX presets and EQ in/out switching.

If you’re looking for professional grade, all-purpose analogue mixers in a compact, rack mountable frame, the MixWizards continue to set the bar.

More Information

  • 19″ Rack mountable
  • 16 mic/line inputs with balanced XLR/TRS jack, insert and direct output
  • 100mm faders
  • 4 band EQ with 2 swept mids
  • 6 Aux sends – 2x pre fade / 2x switched / 2x post fade*
  • 2 Stereo returns
  • Dedicated mono output fader – can be switched to provide an L+R mono feed for a centre or fill speaker, or sub bass feed
  • Independent A-B output for 2-track recording, monitor foldback, speaker fills etc
  • Tri-colour, 12 segment bargraph metering
  • Twin FX engines with 20 studio quality FX presets
  • +48V Phantom Power
  • Signal and Peak LEDs
  • Lamp socket
  • Footswitch connector (mutes/unmutes the ST1 FX Return)

Technical Specification

Tech Specs
  • Type:Analog
  • Channels:16
  • Computer Connectivity:Optional USB expansion card
  • Faders:18 x 100mm
  • Inputs - Mic Preamps:16 x XLR
  • Phantom Power:16
  • Inputs - Line:16 x TRS
  • Outputs - Main:2 x XLR (Main), 1 x XLR (Main Mono)
  • Outputs - Direct:16 x TRS
  • Outputs - Other:2 x TRS (A, B Out)
  • Aux Sends:2 x Pre, 2 x Switched, 2 x Post
  • Send/Return I/O:6 x TRS (Aux Out), 2 x Stereo
  • Channel Inserts:Yes
  • Headphones:1 x 1/4"
  • Talkback:Yes
  • EQ Bands:4-band, 2 x Sweepable Mids
  • Effects:Yes
  • Rackmountable:Yes (removable side trim)
  • Height:7.7"
  • Width:20"
  • Depth:20.9"
  • Weight:35 lbs.
