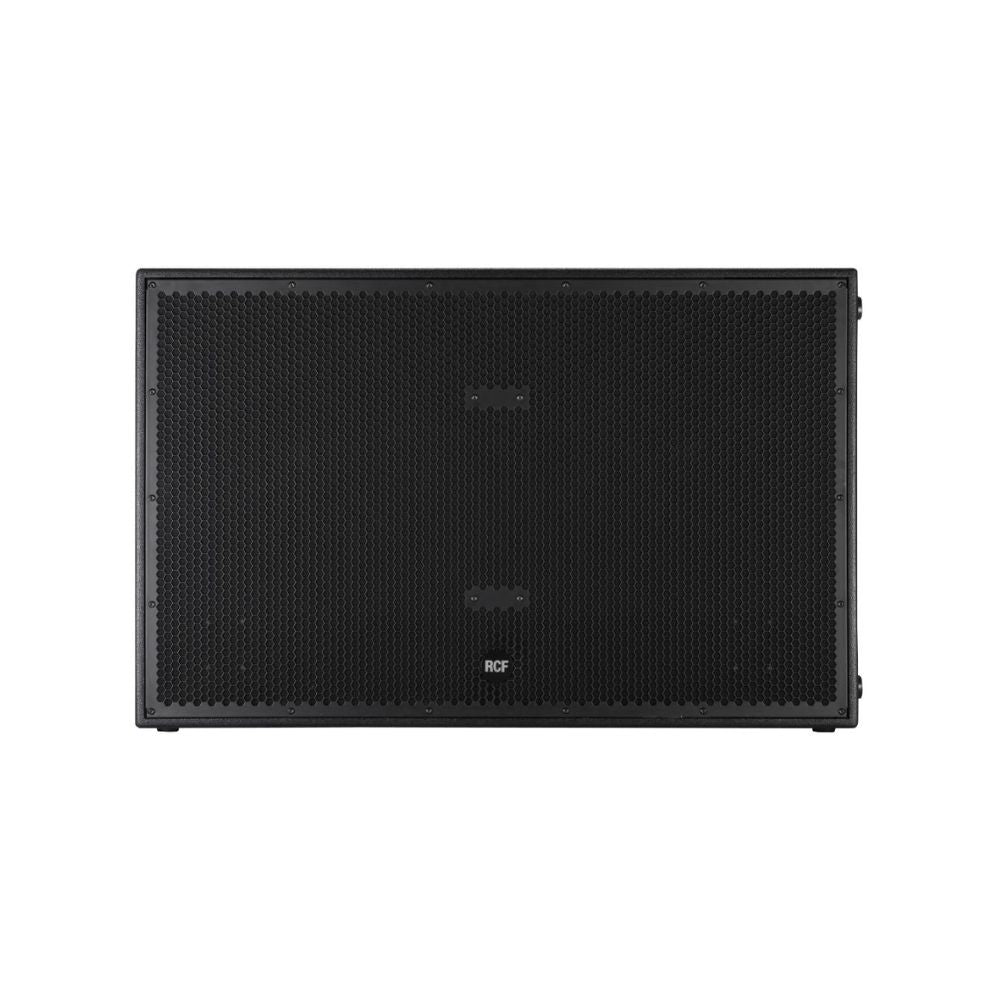

RCF SUB 8006 AS

RCF SUB 8006 AS

A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.

More Information

  • 5000 Watt Peak power - 2500 Watt RMS
  • 137 dB max SPL
  • 30 Hz - 120 Hz frequency response
  • 2 x 18" Woofer
  • DSP controlled Input section with selectable presets
  • Delay control
  • Integrated mechanics for multiple configuration with HDL 20-A
  • Baltic birch tour grade cabinet

Technical Specification

  • ACOUSTICAL SPECIFICATIONS
  • Frequency Response: 30 Hz ÷ 120 Hz
  • Max SPL @ 1m: 137 dB
  • TRANSDUCERS
  • Woofer: 2 x 18'', 4.0'' v.c
  • INPUT/OUTPUT SECTION
  • Input signal: bal/unbal
  • Input connectors: XLR
  • Output connectors: XLR
  • Input sensitivity: -2 dBu/+4 dBu
  • PROCESSOR SECTION
  • Hi-Pass Frequencies: 100 Hz
  • Low-Pass Frequencies: 80 Hz
  • Protections: Thermal, RMS
  • Limiter: Fast Limiter
  • Controls: Xover, Phase switch, Depp/Punch, Output Delay Settings, Cardioi
  • POWER SECTION
  • Total Power: 5000 W Peak, 2500 W RMS
  • Low frequencies: 5000 W Peak, 2500 W RMS
  • Cooling: Convection
  • Connections: Powercon IN/OUT
  • PHYSICAL SPECIFICATIONS
  • Cabinet/Case Material: Baltic birch plywood
  • Hardware: Mounting points
  • Handles: 4 side
  • Grille: Steel
  • Color: Black
  • SIZE
  • Height: 709 mm / 27.91 inches
  • Width: 1109 mm / 43.66 inches
  • Depth: 700 mm / 27.56 inches
  • Weight: 96.4 kg / 212.53 lbs
  • SHIPPING INFORMATION
  • Package Height: 763 mm / 30.04 inches
  • Package Width: 1156 mm / 45.51 inches
  • Package Depth: 753 mm / 29.65 inches
  • Package Weight: 109 kg / 240.3 lbs
