WHARFEDALE PRO WLA 312 X

WHARFEDALE PRO WLA 312 X

Three-way line array. Hear a new dimension.

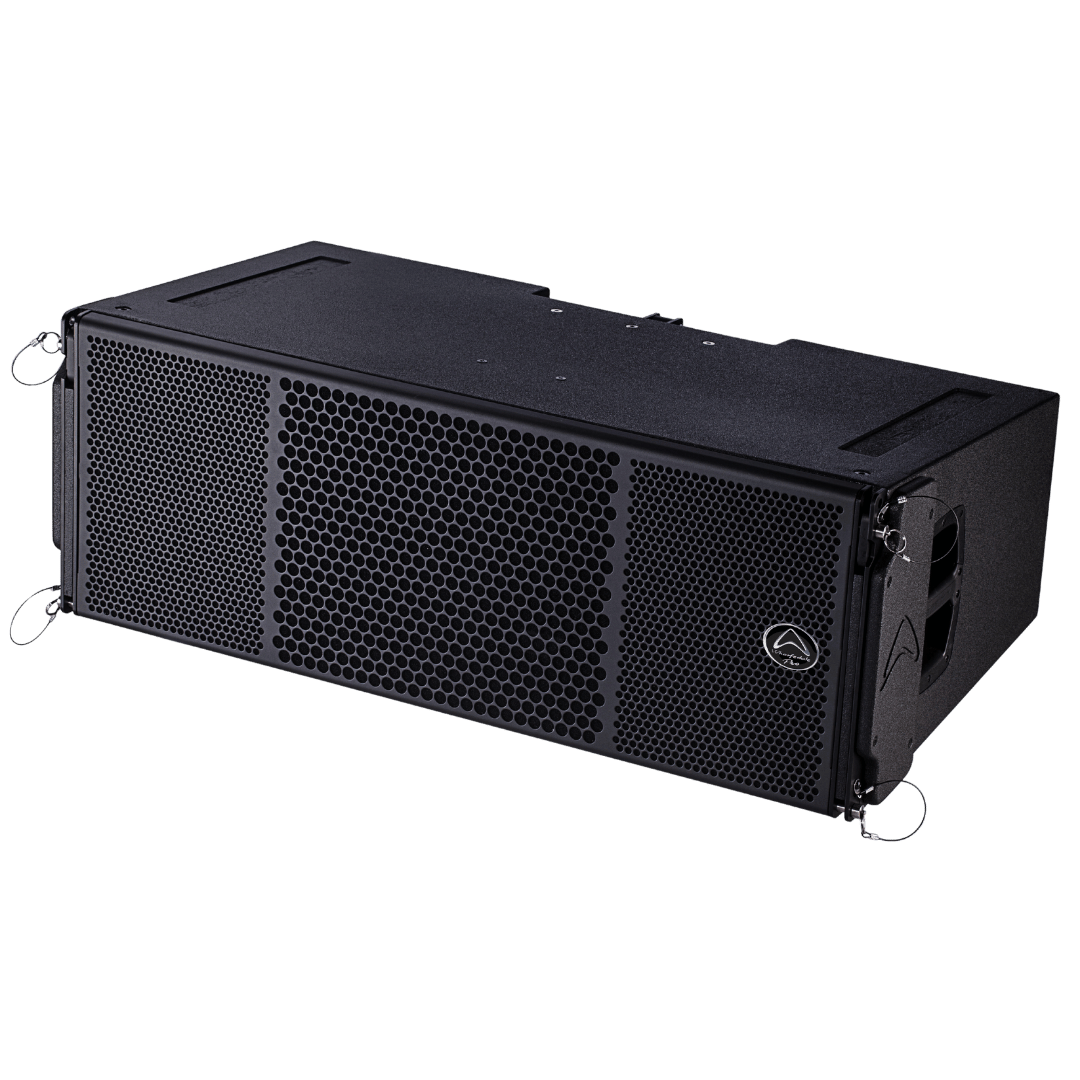

WLA-312X is an advanced three-way line array speaker system capable of handling vast amounts of power while remaining sonically clear, precise and accurate. Rated at 1410w AES per cabinet and boasting highly efficient custom Wharfedale Pro drivers, the WLA-312X can deliver Maximum SPL 142 dB @ 1meter.
Custom WP drivers have been selected to ensure that this series not only has the power you would expect, but the three-way configuration brings a new sonic dimension and definition.

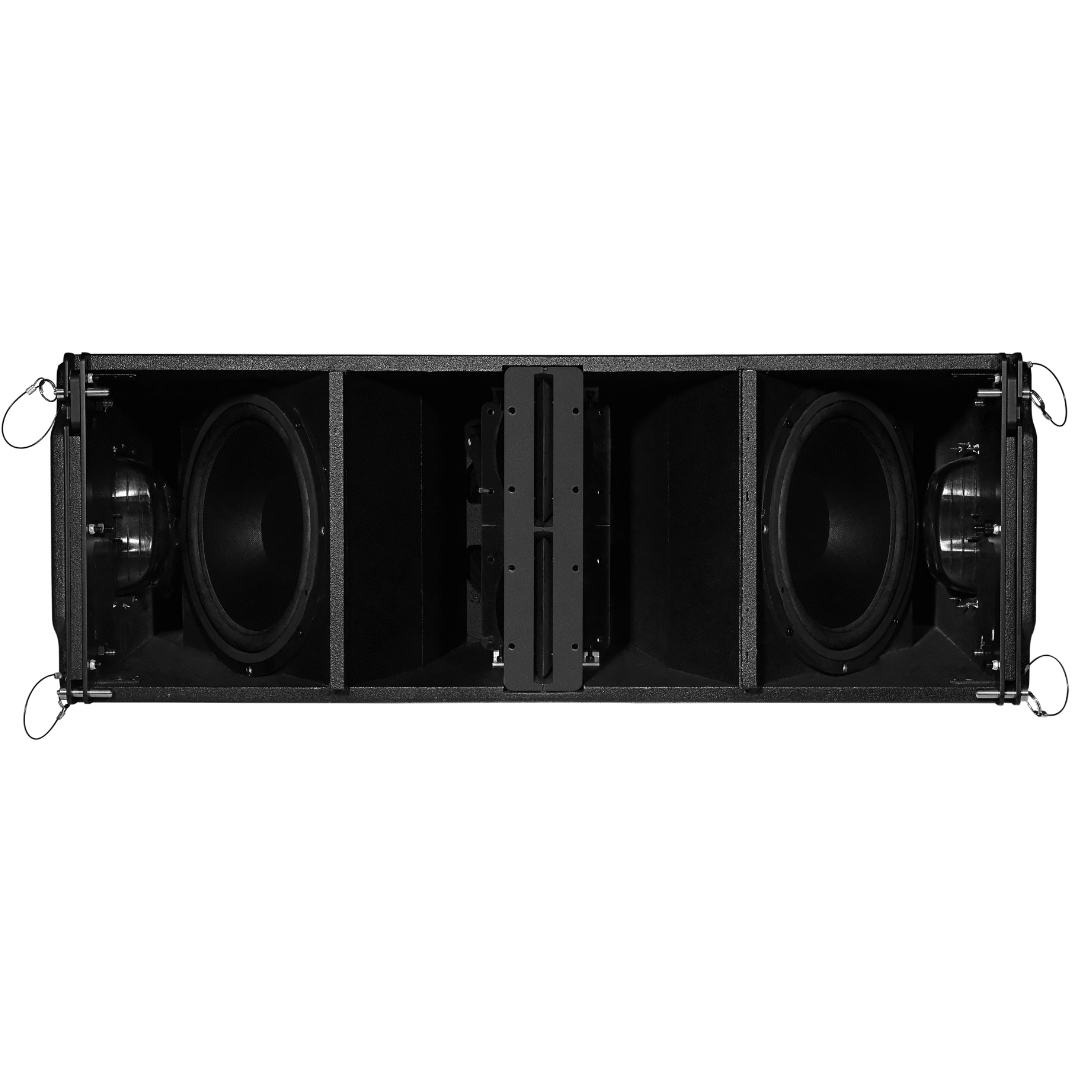

With dual 12" woofers, a 10" midrange driver and dual 2.55" compression drivers, the WLA-312X has everything needed for large venue coverage. In addition, there is no need to fly subwoofers within the array - the WLA-312X has already got plenty of low-end punch.

More Information


The WLA-312X is designed to be controlled and tuned with either a Wharfedale Pro Versadrive signal processor or a DP-D series amplifier. Either of these DSP systems deliver full signal routing and processing to maximise the power and sonic effect of the WLA-312X array.
With full steel grilles, multiple handles and 3 fly frame rigging points, WLA-312X is well suited for touring and for hard work on the road.
The accompanying WLA-312X Fly frame is solid! Constructed of A3 steel it can hold up to 900kg (that's up to 12 pcs of WLA-312X) with a safety factor of 12.

Technical Specification

Three-way line array element
2 x 12” LF drivers
1 x 10” Neo Midrange driver
2 x 2.55” Neo HF compression drivers
Birch plywood construction
1410 watts AES (RMS)
2820 watts Programme
5640 watts Peak
16 ohm impedance
Fly frame to support up to 12 elements (900 kg)
