Product details

More Information

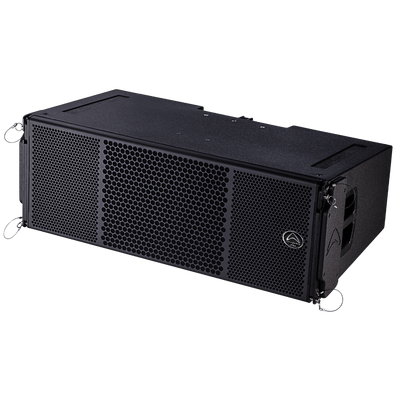

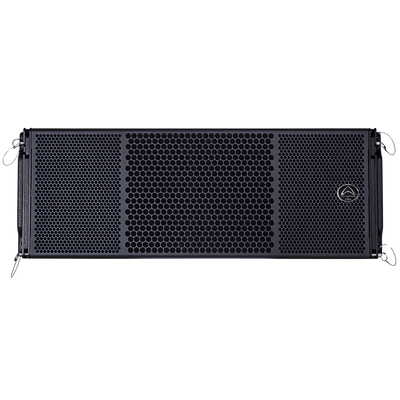

The WLA-312X is designed to be controlled and tuned with either a Wharfedale Pro Versadrive signal processor or a DP-D series amplifier. Either of these DSP systems deliver full signal routing and processing to maximise the power and sonic effect of the WLA-312X array.
With full steel grilles, multiple handles and 3 fly frame rigging points, WLA-312X is well suited for touring and for hard work on the road.

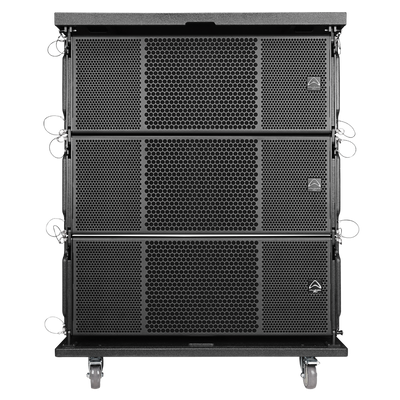

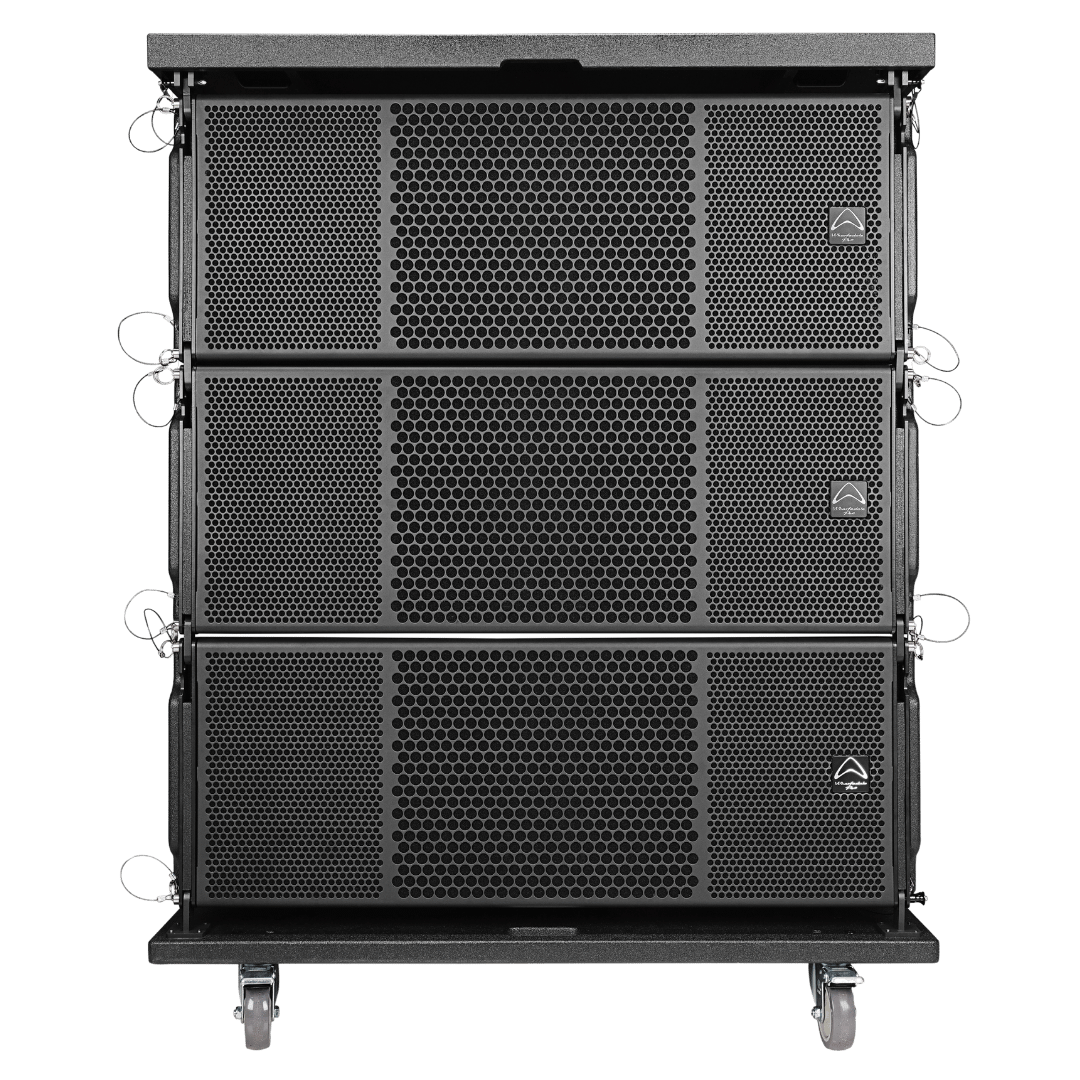

The accompanying WLA-312X Fly frame is solid! Constructed of A3 steel it can hold up to 900kg (that's up to 12 pcs of WLA-312X) with a safety factor of 12.

Technical Specifications

Three-way line array element

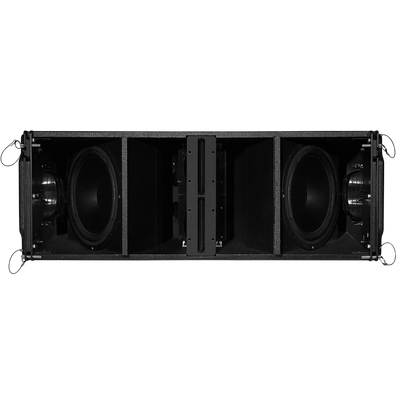

2 x 12” LF drivers
1 x 10” Neo Midrange driver
2 x 2.55” Neo HF compression drivers
Birch plywood construction
1410 watts AES (RMS)
2820 watts Programme
5640 watts Peak
16 ohm impedance
Fly frame to support up to 12 elements (900 kg)
