The CXR10 mk3 is a 2-way loudspeaker and the most compact model of the series, capable of exceptional clarity, precision, and powerful sound output. Thanks to its compact enclosure, it can function as a versatile utility speaker suitable for a wide variety of sound reinforcement environments.

Enquire Now

Product details

More Information
  • 10" LF + 1.75" HF proprietary high-durability speaker units
  • The large-diameter horn secures directivity control across a wide frequency range
  • Optimized port positioning reduces standing wave effects
  • Lightweight, high-performance, form-injection molded enclosure with a symmetrical, functional design
  • Optional UB-DXRDHR10A U-bracket allows both for vertical or horizontal use
  • Optional SPCVR-DXR103 speaker cover protects speakers from rigors of equipment transport, lengthy storage, or outdoor performances
  • Rigging points for use with eye bolts
  • Dual-angle pole sockets offer both 0° or a -7° down tilt
Technical Specifications
  • 2-way speaker with bass-reflex design
  • Frequency Range (-10 dB): 54 Hz – 20 kHz
  • Coverage Area: H90° x V60°
  • Crossover Frequency: 2.0 kHz
  • Nominal Impedance: 8 Ω
  • Sensitivity (1 W / 1 m): 93 dB SPL
  • Peak SPL: 123 dB SPL
  • LF Driver: 10" cone woofer with 2.5" voice coil
  • HF Driver: 1.75" diaphragm, 1" throat compression driver
  • Power Handling:Noise: 275 WProgram: 550 WPeak: 1100 W

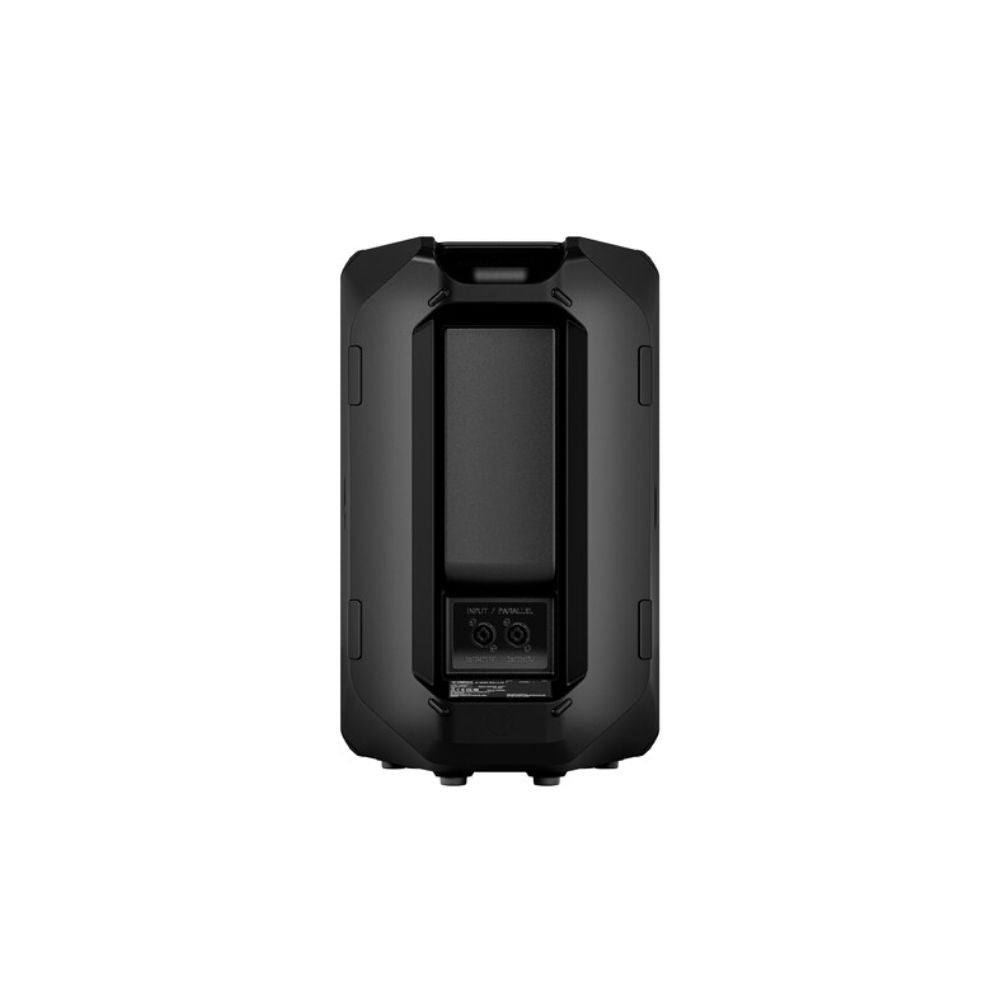

  • I/O Connectors: 2 x SpeakON NL4MP (parallel connected)
  • Cabinet Material: Plastic (PP)
  • Finish: Black
  • Handle: 1 x top handle
  • Pole Socket: Ø35 mm x 2 (Bottom, 0° or -7°)
  • Rigging: Top x 2, Rear x 1 (Fits M8 x 15 mm eyebolts), Bottom x 2, Side x 2 (Fits M8 x 25 mm UB-DXRDHR10A)
  • Floor Monitor Angle: 55°
  • Dimensions (W x H x D): 310 x 502 x 310 mm
  • Net Weight: 12.2 kg (26.9 lbs)
  • Optional Accessories: U-bracket UB-DXRDHR10A, Cover SPCVR-DXR103
