Product details

Technical Specifications

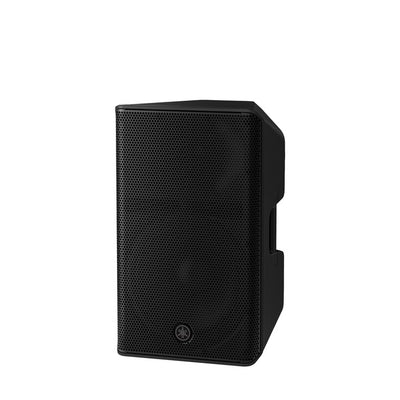

  • Speaker Type - 12" 2-way Bi-amplified Powered Loudspeaker

  • System Type - Bass Reflex

  • LF Driver - 12" Cone Woofer, 2.5" Voice Coil, Ferrite Magnet

  • HF Driver - 1.75" Compression Driver, 1" Throat, Neodymium Magnet

  • Frequency Range (-10 dB) - 52 Hz – 20 kHz

  • Coverage Angle - 90° H × 60° V

  • Crossover - FIR-X™ Linear Phase FIR Filter

  • Amplifier Type - Class-D

  • Dynamic Power Output - 1100 W (LF 950 W + HF 150 W)

  • Continuous Power Output - 700 W (LF 600 W + HF 100 W)

  • Maximum SPL - 134 dB SPL

  • DSP Processing - D-CONTOUR (FOH/MAIN, MONITOR, OFF)

  • Inputs -


    1 × XLR/TRS Combo


    2 × 1/4" Phone


    2 × RCA



  • Outputs -


    1 × XLR THRU


    1 × XLR LINK OUT



  • Pole Mount - Dual-angle 35 mm Pole Socket (0° / 7°)

  • Rigging Points - Top ×2, Rear ×1 (M10 Eyebolts Compatible)

  • Cabinet Material - ABS with Matte Black Finish

  • Dimensions (W × H × D) - 362 × 601 × 350 mm

  • Weight - 18.6 kg

  • Power Requirement - 100V – 240V AC, 50/60 Hz

  • Application - Live Sound / FOH / DJ / Stage Monitor

Key Features


  • High-output 134 dB SPL performance

  • Integrated 3-channel mixer

  • FIR-X DSP tuning for phase optimization

  • D-CONTOUR intelligent multiband compression

  • Durable lightweight ABS cabinet

  • Suitable for FOH, monitoring, and portable PA systems
