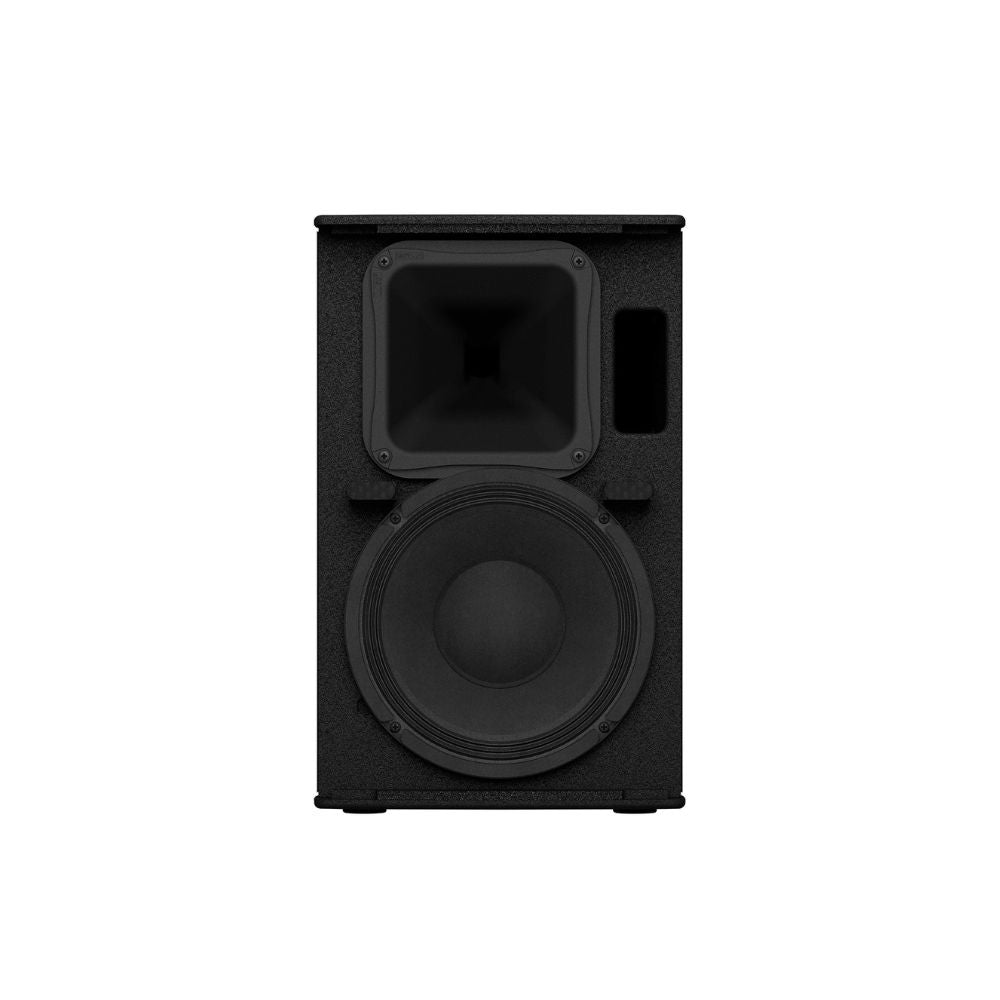

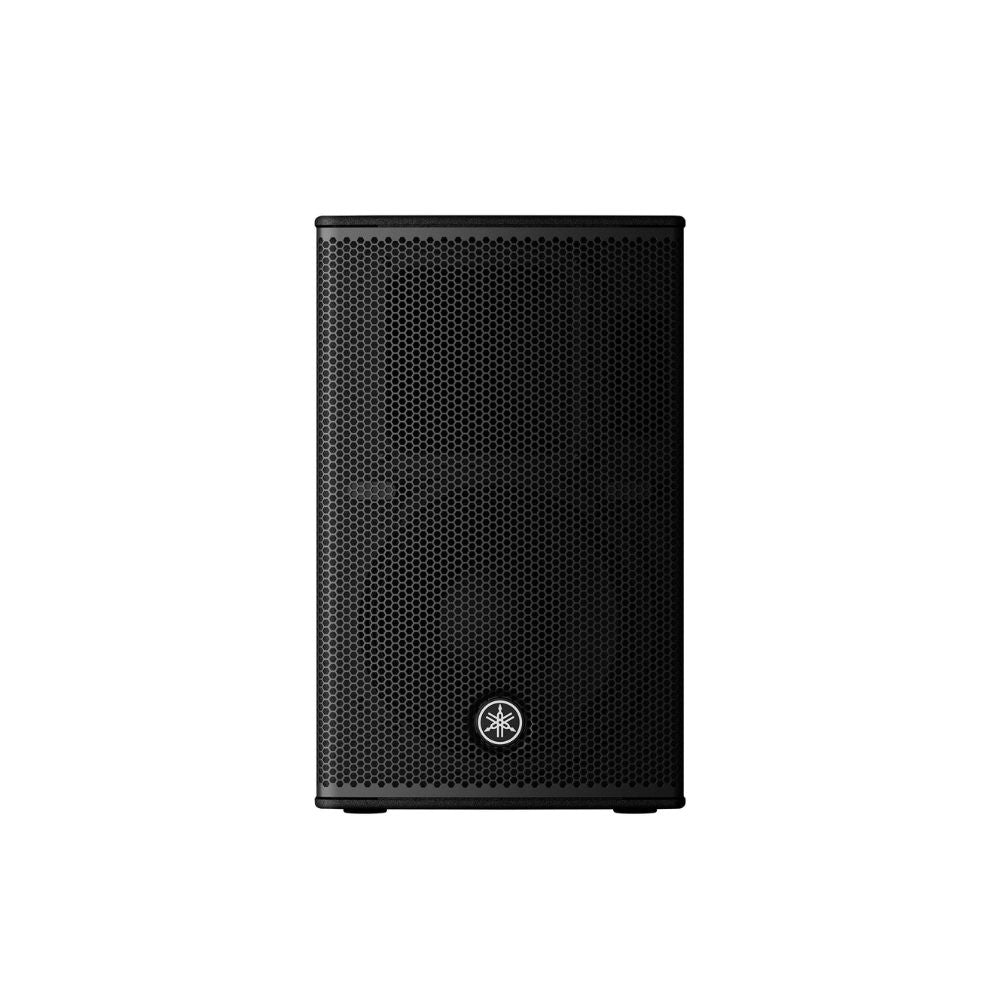

YAMAHA CHR10

• Featuring a plywood cabinet that delivers a clear sound with minimal vibration.
• Plywood enclosure with a polyurea coating for a robust, scratch resistant surface.
• Compact appearance thanks to the 10-inch LF driver that provides excellent low frequency response.
• Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments.
• Optional UB-DXRDHR10 U-bracket allows both for vertical or horizontal use.
• A pole socket for use on a stand.
• Rigging points for use with eye bolts.
• Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance

Add to cart

• 2-way speaker with bass-reflex design
• Frequency Range (-10 dB): 55 Hz – 20 kHz
• Coverage Area: H90° x V60° (Rotatable)
• Crossover Frequency: 2.5 kHz
• Nominal Impedance: 8 Ω
• Sensitivity (1 W / 1 m): 93 dB SPL
• Peak SPL: 122 dB SPL
• LF Driver: 10" cone woofer with 2" voice coil and ferrite magnet
• HF Driver: 1.4" diaphragm, 1" throat compression driver with ferrite magnet
• Power Handling:Noise: 175 WProgram: 350 WPeak: 700 W
• I/O Connectors: 2 x SpeakON NL4MP (Parallel)
• Cabinet Material: Plywood
• Finish: Durable black polyurea coating
• Handle: 1 x top handle
• Pole Socket: Ø35 mm x 1 (Bottom)
• Rigging: Top x 2, Rear x 1 (Fits M10 x 30–50 mm eyebolts)
• Dimensions (W x H x D): 305 x 494 x 300 mm
• Net Weight: 13.7 kg (30.2 lbs)
• Optional Accessory: U-bracket UB-DXRDHR10
