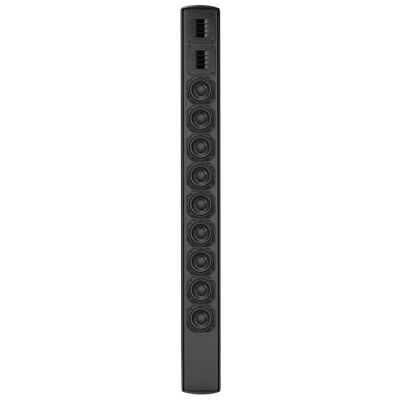

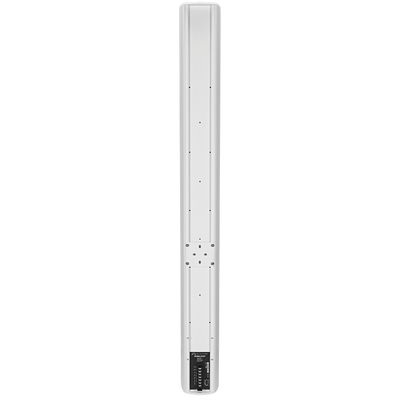

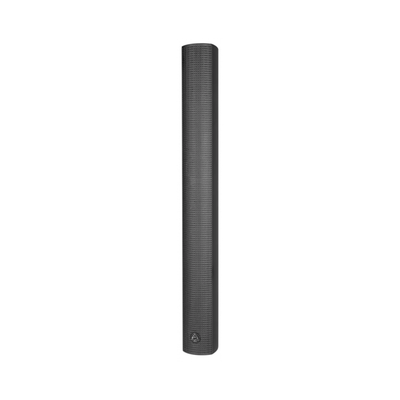

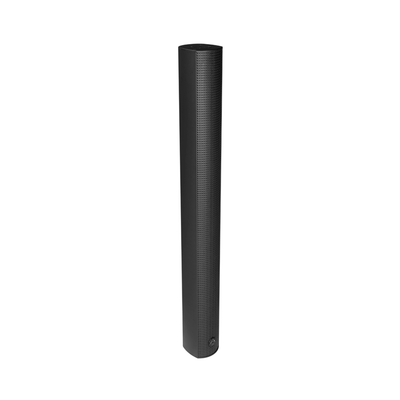

WHARFEDALE PRO SIGMA-XV9T

For the SIGMA-XV5 there is one, while the SIGMA-XV9 features two compression drivers, each with a mini EVO-Fold waveguide.

This mini EVO-Fold design provides consistent dispersion coverage on both the horizontal and vertical planes with the sound radiating from one, singular and coherent, source.

• Active or Passive: Passive
• System Type: Column
• Configuration: 2-way
• System Continuous Power: 360 W
• System Programme Power: 720 W
• System Peak Power: 14440 W
• Max SPL @ 1m: 128 dB
• Freq Response (+/- 3 dB): 130 Hz - 18 kHz
• Freq Range (-10 dB): 120 Hz - 20 kHz
• Bi-amp Mode Switch: No
• Bluetooth: No
• IP Certification: None
• Driver Brand: Wharfedale Pro
• LF Driver Size: 9 x 3"
• LF Voice Coil Size: 1.3
• LF Rated Impedance: 4 Ω
• LF Power (RE:AES2-2012): 40 W

  HF Driver Type: 2 x 1" PEI EVO-Fold Driver
• HF Voice Coil Size: 1"
• HF Diaphragm Material: PEI
• HF Exit Size: 1"
• HF Power (RE:AES2-2012): 20 W
• Preset Library: No
• Input Connector: 1 x barrier strip
• Waveguide Type: Mini EVO-Fold
• Enclosure Material: Aluminum
• Grille Material and Finish: Steel Black or White
• Finish: Black or White Tough-Tone paint
• Deployment: Wall Mount
• Pole Mount: None
• Brackets Included: Yes
• Rigging: No
• Nominal Coverage (H x V): 160° x 20°
