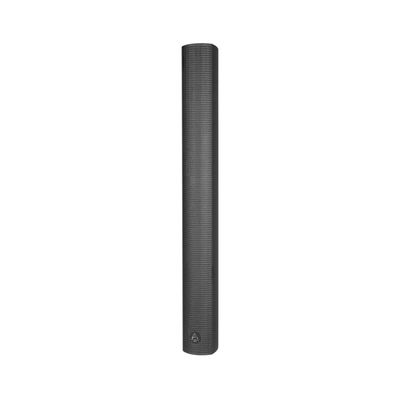

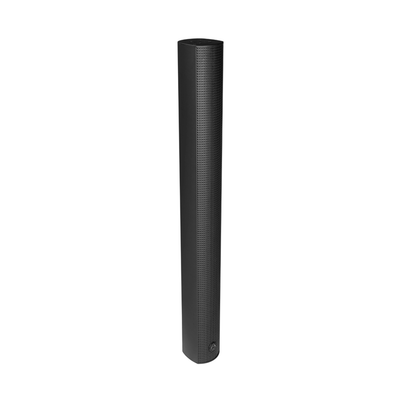

WHARFEDALE PRO SIGMA-XV9

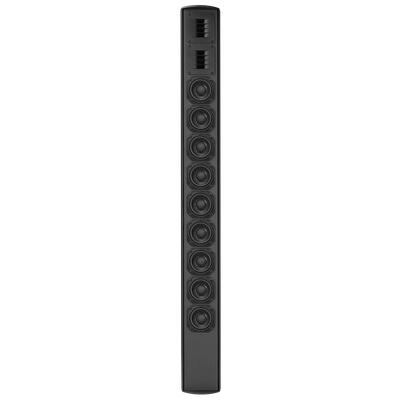

It features nine 3″ full-range drivers supported by two HF compression drivers, each paired with our mini EVO-Fold waveguide This ensures smooth, coherent dispersion on both horizontal and vertical planes, radiating from a singular acoustic source for improved intelligibility and consistency across the audience area.

Handling 360 W continuous (1440 W peak) and delivering up to 128 dB max SPL @ 1 m, SIGMA-XV9 is ideal for medium-to-large spaces requiring increased output without sacrificing clarity. A 70 V / 100 V Hi-Z version is also available for distributed installation systems.

Flexible installation is supported via the included U-bracket, or the optional WPB-SV bracket offering up to 15° vertical tilt and 180° rotation.

Available in black or white finishes and fully supported with FIR presets and EASE .gll files, SIGMA-XV9 delivers precision column performance with next-generation HF control and professional installation versatility.

• Active or Passive: Passive
• System Type: Column
• Configuration: 2-way
• System Continuous Power: 360 W
• System Programme Power: 720 W
• System Peak Power: 1440 W
• Max SPL @ 1m: 128 dB
• Freq Response (+/-3 dB): 130 Hz – 18 kHz
• Freq Range (-10 dB): 120 Hz – 20 kHz
• Bi-amp Mode Switch: No
• Bluetooth: No
• IP Certification: None
• Driver Brand: Wharfedale Pro
• LF Driver Size: 9 x 3"
• LF Voice Coil Size: 1.3
• LF Rated Impedance: 4 Ω
• LF Power (RE:AES2-2012): 40 W

  HF Driver Type: 2 x 1" PEI EVO-Fold Driver
• HF Voice Coil Size: 1"
• HF Diaphragm Material: PEI
• HF Exit Size: 1"
• HF Power (RE:AES2-2012): 20 W
• Preset Library: Yes

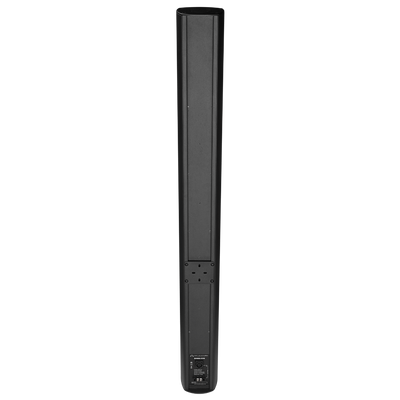

• Input Connector: 1 x 4 Pole speaker connector, 1 x barrier strip
• Waveguide Type: Mini EVO-Fold
• Enclosure Material: Aluminum
• Grille Material and Finish: Steel Black or White
• Finish: Black or White Tough-Tone paint
• Deployment: Wall Mount
• Pole Mount: None
• Brackets Included: Yes
• Rigging: No
• Nominal Coverage (H x V): 160° x 20°
• Sensitivity 2.83 V / 1 M: 97 dB
