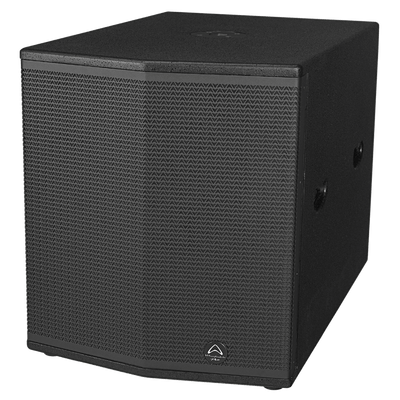

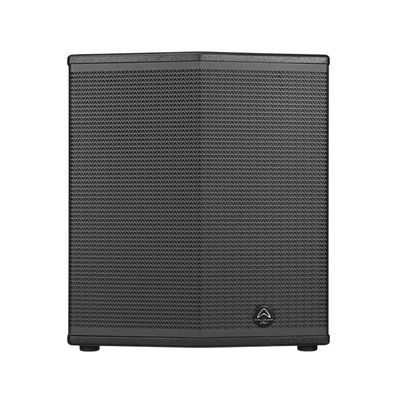

WHARFEDALE PRO SIGMA-X18B

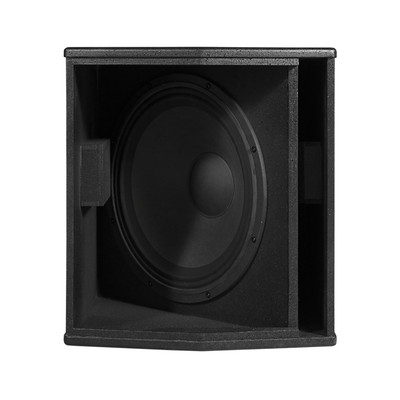

Equipped with a custom Wharfedale Pro 18″ LF driver featuring a 2.5″ voice coil, SIGMA-X18B delivers powerful bass extension with precision and reliability. It handles 500 W AES (1000 W programme / 2000 W peak) and achieves up to 133 dB max SPL @ 1 m, making it a strong low-end foundation when paired with SIGMA-X full-range models.

Constructed from 18 mm MDF with a durable Tough-Tone paint finish, SIGMA-X18B is built for long-term installation use. A 35 mm pole socket allows for easy deployment with top-mounted SIGMA-X speakers, while 4 integrated handles support convenient transport and positioning.

Connectivity is flexible thanks to both barrier strip and 4 pole speaker connectors, ensuring compatibility with a wide range of installation systems.

With powerful performance, practical installation options and a consistent design aesthetic, SIGMA-X18B is the ideal low-frequency companion for SIGMA-X system configurations.

• Active or Passive: Passive
• System Type: Subwoofer
• Configuration: Bass-reflex
• System Continuous Power: 500 W
• System Programme Power: 1000 W
• System Peak Power: 2000 W
• Max SPL @ 1m: 133 dB (Half Space)
• Freq Response (+/-3 dB): 35 Hz - 250 Hz
• Freq Range (-10 dB): 30 Hz - 250 Hz
• Bluetooth: No
• IP Certification: None
• Driver Brand: Wharfedale Pro
• LF Driver Size: 18"
• LF Voice Coil Size: 2.5"
• LF Rated Impedance: 4 Ω
• LF Power (RE:AES2-2012): 500 W
• Preset Library: Yes

  Input Connector: 2 x 4 Pole Speaker Connector, 1 x Barrier Strip
• Enclosure Material: MDF
• Grille Material and Finish: Steel Black or White
• Finish: Black or White Tough-Tone paint
• Handles: 4
• Deployment: Ground
• Pole Mount: 35 mm
• Brackets Included: No
• Rigging: No
• Sensitivity 2.83 V / 1 M: 100 dB
• System Rated Impedance: 4 Ω
• Crossover Frequency: 150 Hz
• Recommended HPF = BW 18 dB/OCT.: 30 Hz
• Transformer (T): No
• Included Accessory: Quick Start Guide
