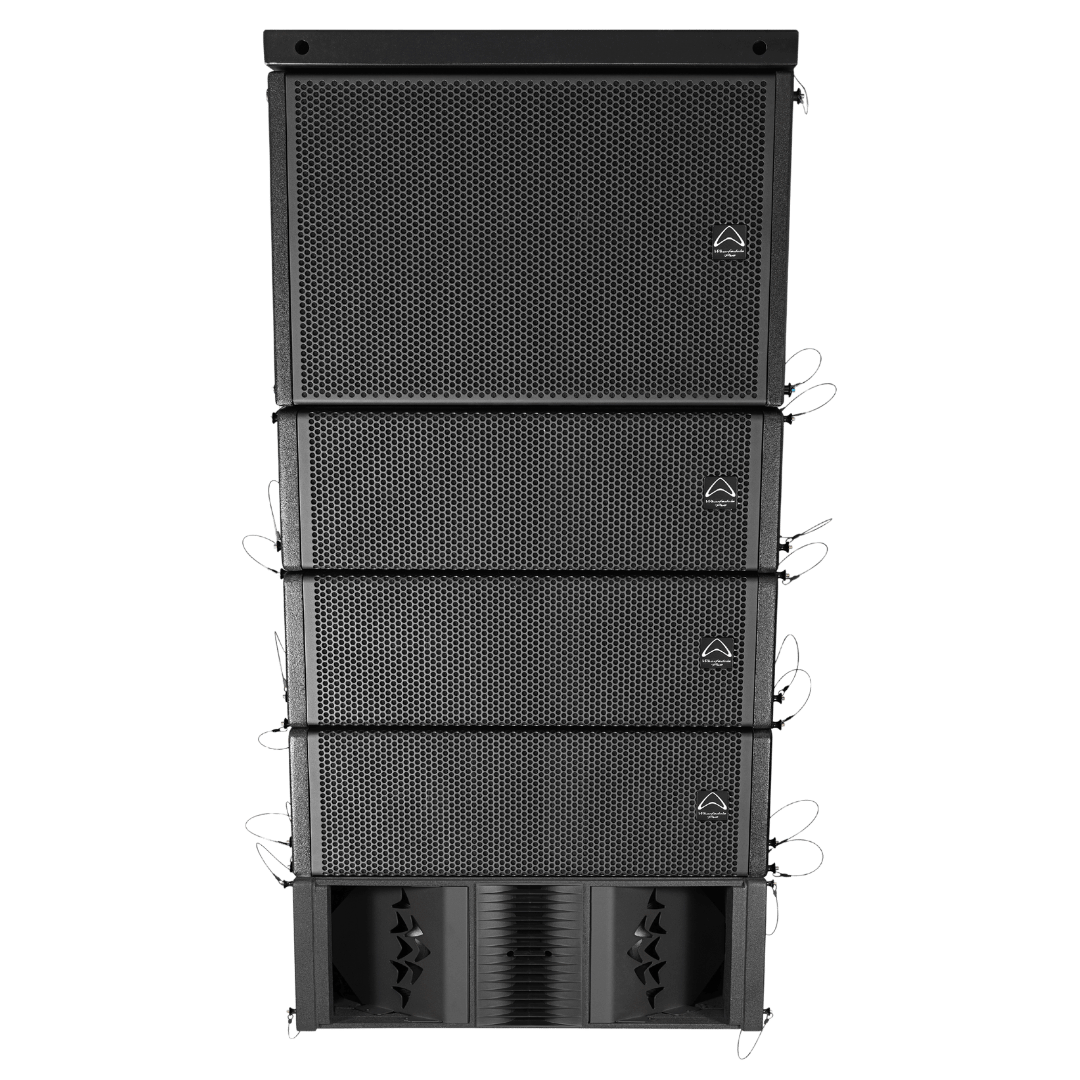

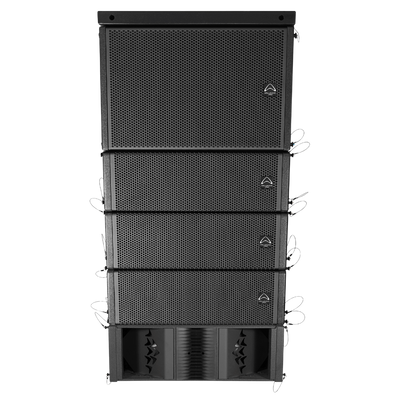

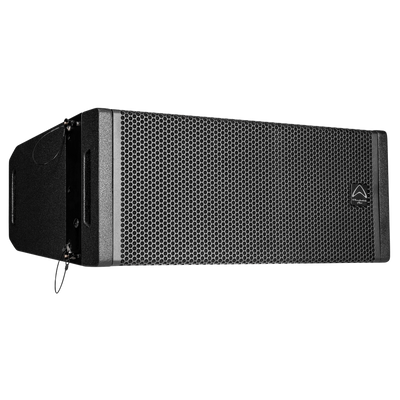

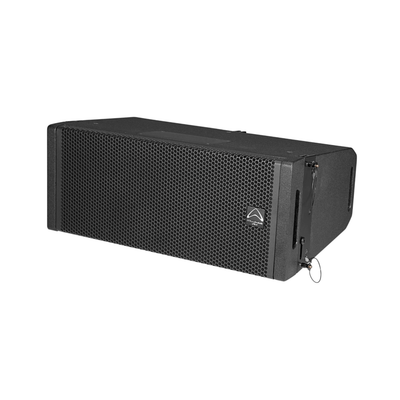

WLA-210A is a dual 10″ active line array system that redefines clarity, control, and output power through advanced acoustic and digital engineering. Designed and engineered in the UK, it combines innovative hardware design with intelligent DSP processing, making it ideal for both touring and fixed installations.

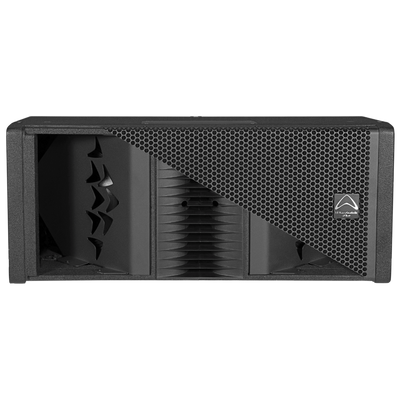

At its core are two custom Wharfedale Pro 10″ LF drivers and a 3.0″ HF compression driver coupled to the acclaimed EVO-Fold waveguide. Paired with precision-engineered phase plugs, this design ensures a smooth, coherent response across the listening field with minimal phase interference.

Enquire Now

Product details

More Information

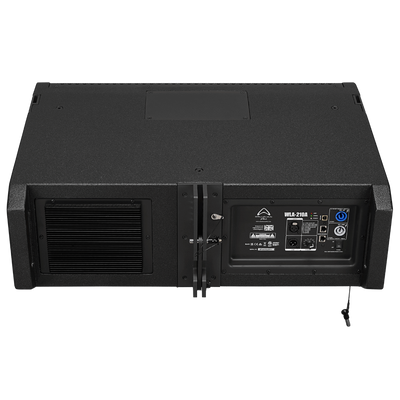

An internal 800 W continuous amplifier drives the system, supported by 8 integrated DSP presets with FIR filtering, allowing fast and accurate configuration for any array size or venue. Remote DSP control via RS485 offers full GUI-based tuning and monitoring of every element in the system.

Delivering up to 133 dB max SPL @ 1 m, the WLA-210A combines power, precision, and flexibility—setting a new benchmark for compact active line array performance.

Technical Specifications
  • 800 W continuous
  • Dual 10″ active array element
  • Internal DSP with FIR presets
  • Network connection using RS485 protocol
  • 133 dB Max SPL @ 1 m
  • EVO-Fold waveguide
  • Custom phase plugs
  • Freq Response (+/-3 dB) 55 Hz – 20 KHz
  • Freq Range (-10 dB) 50 Hz – 20 KHz
