PROGRAMME-X105T is a 5″ passive loudspeaker from PROGRAMME-X Series, designed for high-quality fixed installations that demand clarity, coverage, and installation flexibility.

Enquire Now

Product details

More Information

Equipped with new custom drivers and premium low-distortion 70 V / 100 V transformers, PROGRAMME-X105T delivers higher SPL and improved horizontal consistency compared to the original PROGRAMME Series. Its 60° x 60° dispersion pattern ensures smooth, even sound distribution — ideal for restaurants, retail, hospitality, and enterprise environments.

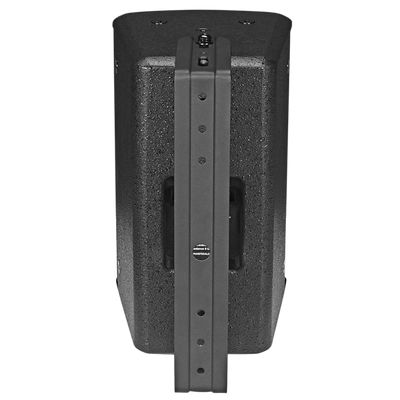

Built for discreet integration, PROGRAMME-X105T features 14 M8 rigging points and is supplied with a U-bracket for easy wall or ceiling mounting. Available in black or white, it blends seamlessly into any interior design.

Operating in 70 V / 100 V systems with selectable taps of 7.5 / 15 / 30 / 60 W, it can also function at 8 Ω when required. Handling 80 W continuous (320 W peak) power, PROGRAMME-X105T combines refined design, versatile installation options, and outstanding sonic performance — a modern evolution of a proven classic.

Technical Specifications
  • Active or Passive: Passive
  • System Type: Full-Range
  • Configuration: 2-way
  • System Continuous Power: 80 W
  • System Programme Power: 160 W
  • System Peak Power: 320 W
  • Max SPL @ 1m: 116 dB
  • Freq Response (+/-3 dB): 75 Hz - 20 kHz
  • Freq Range (-10 dB): 70 Hz - 20 kHz
  • Bluetooth: No
  • IP Certification: None
  • Driver Brand: Wharfedale Pro
  • LF Driver Size: 5"
  • LF Voice Coil Size: 1"
  • LF Rated Impedance: 8 Ω
  • LF Power (RE:AES2-2012): 65 W
  • HF Driver Type: Soft Dome Tweeter

    HF Voice Coil Size: 1"
  • HF Diaphragm Material: Titanium
  • HF Exit Size: 1"
  • HF Power (RE:AES2-2012): 15 W
  • HF Rated Impedance: 8 Ω
  • Preset Library: No
  • Input Connector: Barrier Strip
  • Waveguide Type: Rounded
  • Enclosure Material: MDF
  • Grille Material and Finish: Steel Black or White
  • Finish: Black or White
  • Handles: No
  • Deployment: Wall Mount, Flying
  • Pole Mount: None
  • Brackets Included: Yes
  • Rigging: Yes
  • M8: 14
  • Nominal Coverage (H x V): 60° x 60°
    Nominal Coverage (H x V): 60° x 60°
  • Sensitivity 2.83 V / 1 M: 91 dB
  • System Rated Impedance: 8 Ω
  • Crossover Frequency: 2.3 kHz
  • Recommended HPF = BW 18 dB/OCT.: 70 Hz
  • Transformer (T): Yes
  • Transformer Taps (70 V): 7.5 / 15 / 30 / 60 W
  • Transformer Taps (100 V): 15 / 30 / 60 W
  • Input Connectors (T): Barrier Strip
  • Included Accessory: Black or White U Bracket, User Manual
